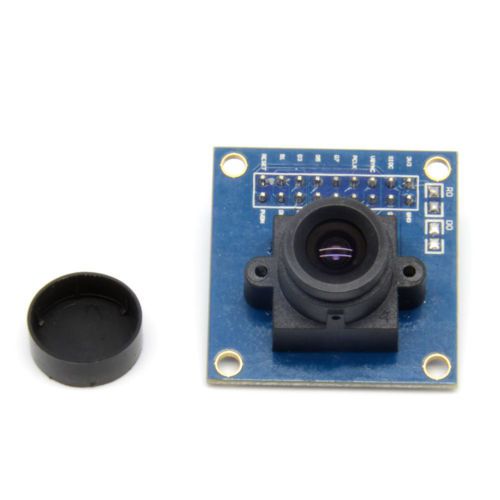

OV7670 300KP VGA CMOS Camera Module SCCB for Arduino STM32 ARM DSP FPGA, C $8.13 – Picture 0

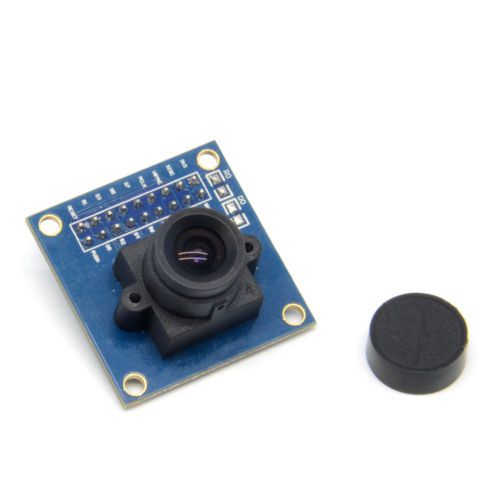

OV7670 300KP VGA CMOS Camera Module SCCB for Arduino STM32 ARM DSP FPGA, C $8.13 – Picture 1

OV7670 300KP VGA CMOS Camera Module SCCB for Arduino STM32 ARM DSP FPGA, C $8.13 – Picture 2

OV7670 300KP VGA CMOS Camera Module SCCB for Arduino STM32 ARM DSP FPGA, C $8.13 – Picture 3

Ov7670 300kp Vga Cmos Camera Module Sccb For Arduino Stm32 Arm Dsp Fpga

C $8.13

Malaysia, Malaysia
Jan 29th

Open on mobile:
QR code

Description 640x480 0.3Mega Pixel CMOS Camera Module OV7660 SCCB I2C compatible W/ OV7670 Item Description The OV7660 camera module is a low cost 0.3 mega pixel CMOS color camera module, which is compatible with OV7670 module that can output 640x480 VGA resolution image at 30fps. The OV7660 camera module build in onboard LDO regulator only single 3.3V power needed and can be used in Arduino, STM32,Chipkit, ARM, DSP , FPGA and etc. For more information how to use camera modules please visit www.arducam.com. Features: Optical size 1/5 inch Resolution 640x480 VGA Onboard regulator, only single 3.3V supply needed Standard 0.1inch (2.54mm) pin pitch header connector Mounted with high quality F1.8 / 8mm lens Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats High sensitivity for low-light operation Low operating voltage for embedded portable apps Standard SCCB interface compatible with I2C interface Supports image sizes: VGA, QVGA,QQVGA,CIF,QCIF,QQCIF VarioPixel® method for sub-sampling Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC) Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming 1 x OV7660 camera module Shipping •Item will be shipped within 24 hours after full payment is received. •Normally the shippment to worldwide is used to take 20 to 25 business days, exclude Sat & Sun Payment •We accept PayPal only. •Payment must be received in 7 business days of auction closing. •Please leave note for your special request (e.g. Colors or Size) in ebay note when you pay the order. •Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Content Us •If you have any questions, please feel free to email our servicer ,and we will reply you ASAP. If no response within 24 Hours, please check the spam of mail box or kindly re-send it to us. •We greatly appreciate your POSITIVE feedback. Please do NOT leave negative or neutral feedback without any contact. If you haven't received item in 45 days, please contact us and we will arrange refund or resend
