Owon Ag2052f 50mhz Function Generator 250ms/s Sample

US $1600

Dallas, Texas, United States
Jan 29th

Open on mobile:
QR code

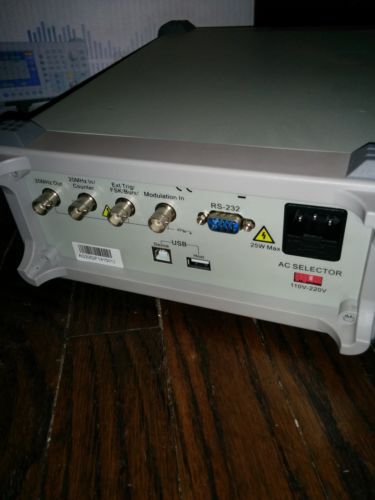

This is new in the box. I only took it out to take pics. Let me know if you have any questions. front view back view back view (-F model) Dual-channel Arbitrary Waveform Generator Product Series : AG Series Main Features - Advanced DDS technology, max 60MHz frequency output - Up to 250MS/s sample rate, and 1?Hz frequency resolution - Vertical Resolution : 14 bits, up to 1M arb waveform length - Comprehensive waveform output : 5 basic waveforms, and 48 built-in arbitrary waveforms - Comprehensive modulation functions : AM, FM, PM, FSK, PWM, Sweep, and Burst - High-accuracy frequency counter integrated, supported range 100mHz - 200MHz - Supported SCPI - 4 inch high resolution (480 x 320 pixels) TFT LCD display Application design and debug circuit function test education and training Model AG1012 AG1012F AG1022 AG1022F AG2052F AG2062F Channel dual Frequency Output 10MHz 25MHz 50MHz 60MHz Sample Rate 125MS/s 250MS/s Vertical Resolution 14 bits Waveform Standard Waveform Sine, Square, Pulse, Ramp, and Noise Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 48 built-in waveforms, and user-defined arbitrary waveform Frequency (resolution 1?Hz) Sine 1?Hz - 10MHz 1?Hz - 25MHz 1?Hz - 50MHz 1?Hz - 60MHz Square 1?Hz - 5MHz 1?Hz - 25MHz 1?Hz - 30MHz Pulse 1?Hz - 5MHz 1?Hz - 10MHz Ramp 1?Hz - 1MHz Noise 25MHz (-3dB) (typical) 50MHz (-3dB) (typical) Arbitrary Waveform 1?Hz - 10MHz Amplitude Amplitude 1m Vpp - 10 Vpp (50?), 1m Vpp - 20 Vpp (high impedance) Resolution 1mVpp or 14 bits DC Offset Range (AD+DC) ±5V (50?), ±10V (high impedance) DC Offset Range Resolution 1mV Load Impedance 50? (typical) Arbitrary Waveform Wave Length 2 pts to 8K pts 2 pts to 1M pts Sample Rate 125MS/s 250MS/s Vertical Resolution 14 bits Non-volatile Memory 26 waveforms Modulation Modulation Waveform / AM, FM, PM, FSK, Linear / Logarithm Sweep, and Burst / AM, FM, PM, FSK, Linear / Logarithm Sweep, and Burst Modulation Frequency / 2mHz to 20.00KHz (FSK 1?Hz - 100KHz) / 2mHz to 20.00KHz (FSK 1?Hz - 100KHz) Counter Function / Frequency Period, +Width, -Width +Duty, and -Duty / Frequency Period, +Width, -Width +Duty, and -Duty Frequency Range / 100mHz ~ 200MHz / 100mHz ~ 200MHz Frequency Resolution / 6 digits / 6 digits Input / Output Display 4 inch (480 x 320 pixels) TFT LCD Type external reference clock input / output counter, external modulation input / output, external trigger input / output, external reference clock input / output external reference clock input / output counter, external modulation input / output, external trigger input / output, external reference clock input / output Communication Interface USB host, USB device, RS232 Mechanical Dimension (WxHxD) 235 x 110 x 295 (mm) Weight (without package) 3.00 kg - See more at: .owon.com.hk/products_info.asp?ProID=177#sthash.kTLVpM14.dpuf

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	OWON
Model	AG 2052F
