P4 32x16 Rg Dual Color Led Dot Matrix Unit Board

US $160

shenzhen, China
Jan 29th

Open on mobile:
QR code

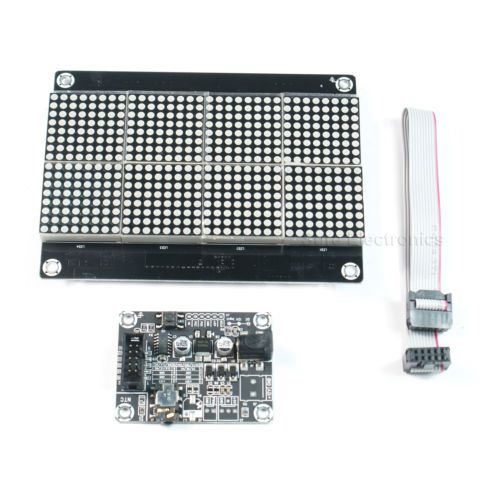

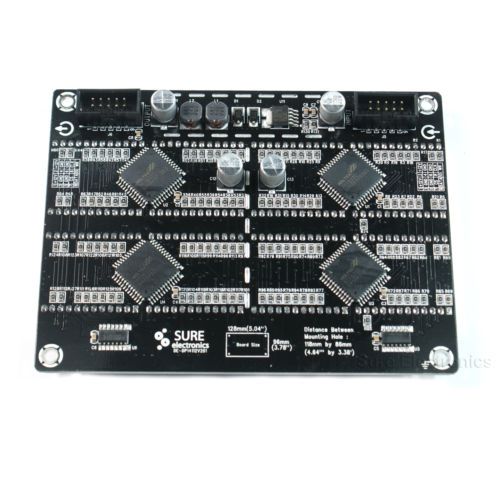

[zipedit] Our-Store Home Page About Us Contact Us Add to Favourate Payment Shipping Return Payment Why Us Subscribe NewsLetter Add our store in to your favourites and recieve our exclusive emails about new items and special promotions Subscribe Product Overview Description 3216 Bicolor LED 3mm Dot Matrix Display Info Board(DE-DP14116) Brief Introduction: As the small version of DE-DP14211 by Sure Electronics, this HT1632C-based item integrates both bright red and green LEDs built into each of 32*16 3mm dots, providing high distinguished red, green and even yellow display when red and green LEDs are illuminated simultaneously. Users can build a driver board or choose the driver board ( Demo Driver Board for 0832 Dot-matrix LED board(Edition I) DE-DD210) by Sure Electronics to light up this LED board and customize their own character libraries to display their favorite symbols and adjust the contrast ratio of this display for better visual effect. Net Weight:250g / 8.9oz Features: Size: 128.27 (L) X 81.30 (W) X 23.84 (H)±0.2mm HT1632C-based 32*16 LED dot-matrix info board Light emitting diameter: 3mm Available light-emitting color: red, green and yellow 10-level PWM brightness control Either one of the two 10-pin male sockets can be used to connect drive board, which powers the 32*8 LED, as well as send data and control signal in a SPI-like mode Two +12V auxiliary power supply terminals provided Up to 2 boards are recommended to be connected in series to display more characters Specifications: Parameter Symbol Value Unit Operating Voltage Vin 12 V Storage Temperature Tstg -20 - 80 °C Average Operating Current Iavrg 0.5 A Maximum Operating Current (All LEDs on, 100% PWM duty cycle) Imax 1.37 A Applications: Electronic bulletin boards services in railway or bus station, banks, hotels, supermarkets, etc Package Contents: 3216 Bicolor LED 3mm Dot Matrix Display Info Board x1 10-pin IDC cable x1 3216 bicolor LED Dot matrix Display Information Board Series: Product Number Product Name DE-DP14112 3216 Bicolor LED 3mm Dot Matrix Display Information Board DE-DP14211 3216 Bicolor LED 5mm Dot Matrix Display Information Board Note: The accessories might be a little different from what you've seen on webpage since the accessories you received might be from different batch. However, it won't affect your use. Sure Electronics assumes no liability for any ambiguity caused by the product photos. Go to Download Center for Manual, Driver and Tutorial. Keyword: DE-DP14112 Payment Shipping 100% Success Refund & Return Home Page About Us Contact Us Add to Favourate Payment Shipping Return Designed By XDiom Graphics
