Paint Spray Booth Evolution Side Down Draft (made In U.s.a.)

US $590

Paramount, California, United States
Oct 19th

Open on mobile:
QR code

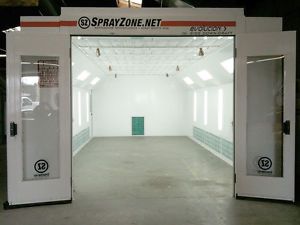

The Evolution Standard is an auto booth designed to direct the airflow entering the booth cabin through the fully filtered ceiling plenum, and exhaust it at the both lower sides, exhaust plenums. This booth is customized to fulfill at the rigorous needs of the more advanced water-borne coatings. CALL US OR TEXT US AT (714)801-9953 FOR A QUOTE. Evolution Side Down Draft SPECIFICATIONS: Model # SZ-SDD 27 SE Single Wall 18ga. OUTSIDE DIMENSION: 14'-2" W x27'-4" L x 10'-6"H INSIDE DIMENSION: 14'-0" W x 27'-0"L x 9'-0"H FRONT DOOR OPENING DIM: (1) 9'Wx9'H ACCESS MAN DOOR: (1)36"Wx84"H SIDE-DOWN DRAFT: AIR ENTERS THE BOOTH CABIN THROUGH FULL TOP FILTERED PLENUM, AND EXHAUSTED AT BOTH LOWER SIDE EXHAUST PLENUMS. CONSTRUCTION: 18 GA. GALVANIZED STEEL PANELS. PRE PUNCHED AND COMPANION FLANGED FOR EASY ASSEMBLY, PRE DRILLED ON 6" CENTER FOR ASSEMBLY WITH 1/4 NUTS AND BOLTS FILTERS: (14) 30"X20"X2" FIBER GLASS EXHAUST FILTERS (07) 36"X118"X2" DIFFUSION MEDIA INTAKE FILTERS LIGHTS: 48"X12" LIGHTS FIXTURES 120V (6) UPPER HORIZONTAL LIGHT FIXTURE (4) VERTICAL LIGHT FIXTURE SIDE WALL PANELS TOTAL OF 10 LIGHT FIXTURES EXHAUST FAN: ITEM: (2)TUBEAXIAL EXHAUST FAN MANUFACTURE MODEL: #7F843 MANUFACTURE: DAYTON BLADE DIA: 24" FAN MOTOR HP: 2hp PHASE:3 VOLTAGE:208-230/460 DELIVERS: EACH 8,573 CFM @0.250-In. SP TYPE: WITH NON SPARKING ALUMINUM BLADES, ENCLOSED BELTS AND BALL BEARINGS. AIR SOLENOID VALVE INTERLOCKED WITH FAN TO PREVENT SPRAYING OPERATIONS WITHOUT FAN WORKING UPGRADES(Additional Cost) Ask About upgrades, Dimensions can also be altered to suit your needs. Heating Unit-400,000 BTU's to 1,000,000 BTU's. With this heating power you can do complete baking jobs in a matter of minutes Intake plenum- to add the heater or intake fan Powder coating -white in an out (images above are of white powder coated booths) Extensions-Need a larger booth? we can increase the length! Observation windows- add these windows to your doors so you can observe the spraying process Drive Thru- Replace the rear panels of your spray booth with new doors to giive capability for cars to enter or leave the booth at opposite ends. Trifold doors Fire Suppression systems Mixing Room Ducting 9' set Dual Skin (20 Gage Double wall) SHIPPING AND CRATING NOTE: does not include: electrical, roof ducting and fire systems and or heater unit call for more details on this AD. CALL US OR TEXT US AT (714)801-9953 FOR A QUOTE. GO TO OUR WEBSITE FOR MORE INFO ON THIS BOOTH AND OTHER PRODUCTS http://www.sprayzone.net/ Please watch a brief Youtube video about our Spray Booths. NEED A SHIPPING QUOTE PLEASE CONTACT US,CALL US OR TEXT US AT (714)801-9953 FOR A QUOTE. ALL PAINT BOOTHS ARE MANUFACTURED IN THE USA AND ARE UNDER CODE WITH THE NFPA, UFC, NEC AND OSHA. IF YOU NEED FAST INSTALLATION AND PERMITS PLEASE GIVE US A CALL WE SERVICE ALL CALIFORNIA. WE ALSO CARRY A COMPLETE LINE OF AUTOMOTIVE BOOTHS, PREP-STATIONS, TRUCK BOOTHS, PAINT MIXING ROOMS AND INDUSTRIAL OPEN FACE FOR WOOD WORKING. Please give us a call (562-602-0101)
