Parker 404xr Linear Ballscrew Actuator Ims Mdrive17 Stepper - Thk Cnc Diy Z-axis

US $425.00

Demopolis, Alabama, United States
Jan 29th

Open on mobile:
QR code

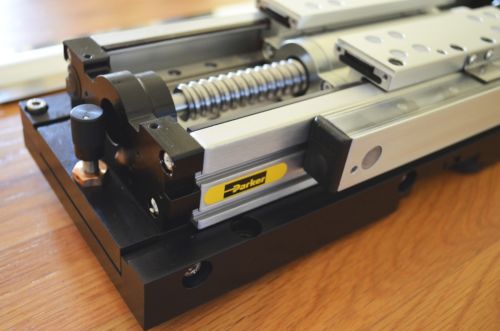

Parker 404100XRMP Linear Actuator with Precision Ground Ballscrew, (3) Proximity Sensors Limit / Homing, Adjustable Mounting Plate, IMS MDrive17 Stepper Motor with Built-in Driver & Encoder +12vdc to +48vdc Input Voltage 512-line Encoder (2,048 edges per rev) *Auction price is for 1 actuator, I have 3 available* This actuator also comes with a heavy-duty adjustable mounting plate in case you are mounting it to an uneven surface this will allow you to adjust the actuator so that it is perfectly level. For more info on the adjustable plate please see one of my other listings: Adjustable Mounting Plates for Parker 404100XRMP This is a lightly used Parker 404XR linear actuator in excellent condition. It is a model 404100XRMP with a 100mm rated stroke length, but the max stroke length is actually about 120mm (4-3/4"). The ballscrew is precision ground 16mm dia. x 5mm pitch and the rails are model Hiwin MGNR9H with two bearings on each rail. The motor is an IMS MDrive 17 stepper with built-in driver and an internal 512-line encoder. Output shaft is 5mm diameter with flat. IMS MDrive17 motor Model# MDI3CRL17B4-EQ The actuator has (3) proximity sensors (Limit / Homing switches) that are mounted to the side of the actuator in a protective aluminum housing with clear plastic top cover & 5-pin connector. The 404XRMP actuators are extremely accurate ('P' = 'Precision' model), they have a repeatability of 1.3um (1.3microns = 0.00005") Length of actuator (not including motor mount or motor) is 12", overall length of actuator with motor & mount is 17-1/2" Parker model# 404100XRMP-D2H3L2C25M37E1B1R1P1 **I also have more Parker 404XR actuators for sale, please see my other listings for more information** See website below for more info on the IMS MDrive17 motor: http://motion.schneider-electric.com/downloads/datasheets/MDI17Plus.pdf Shipping rate applies to lower 48 States only. International orders will be shipped via Ebay's 'Global Shipping Program' , please click on the 'Shipping and Payments' tab above and select your country from the drop-down menu to get a shipping quote from Ebay. If your country is not listed then please contact me for a shipping quote before placing a bid.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Lightly used actuator, in perfect condition!!”
