Parker Daedal Mx80l High-precision Servo Motorized Xyz Stage

US $1,245.00

Waban, Massachusetts, United States
Jun 9th

Open on mobile:
QR code

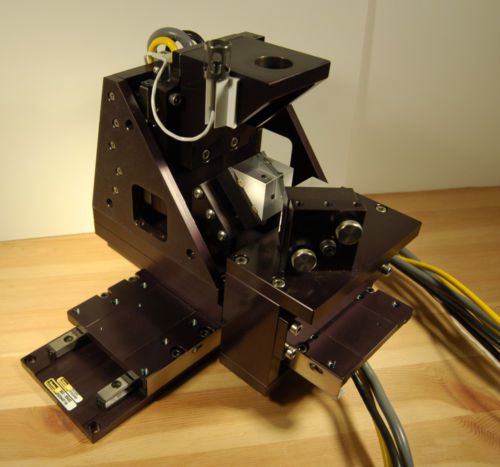

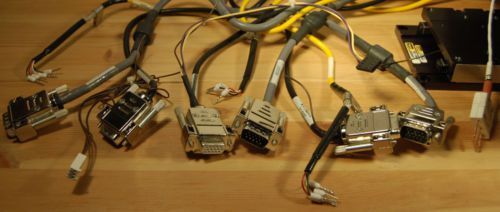

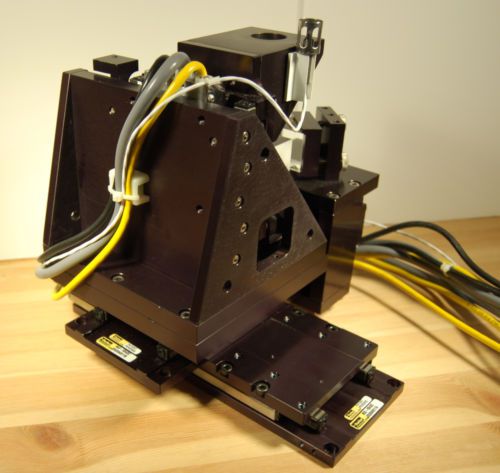

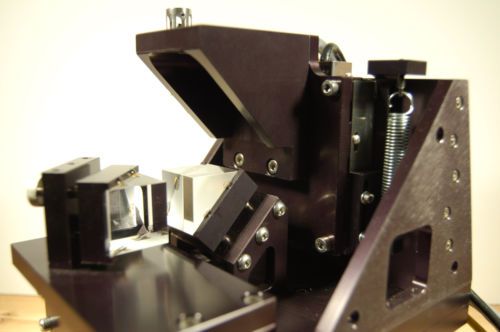

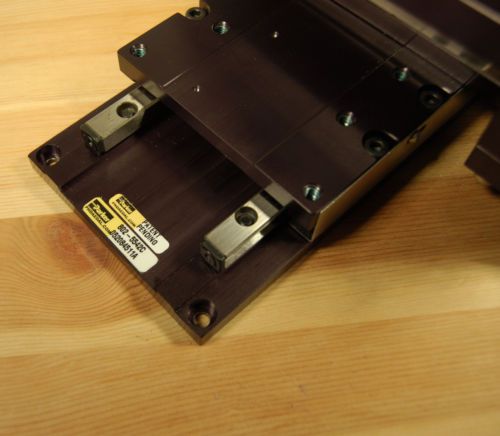

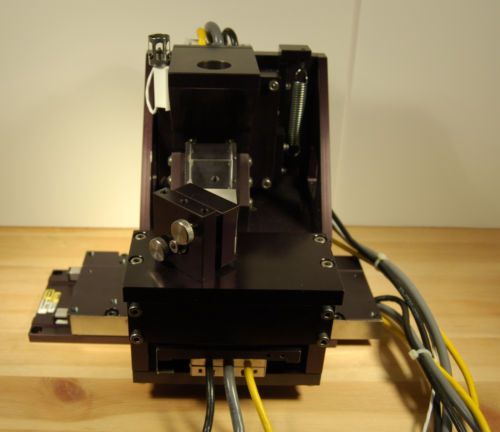

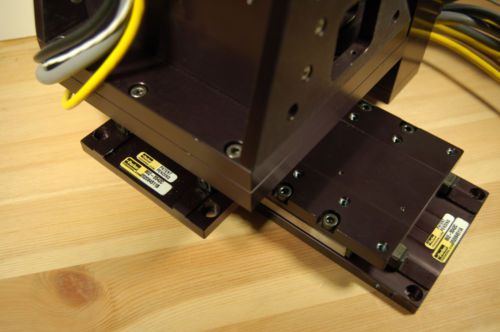

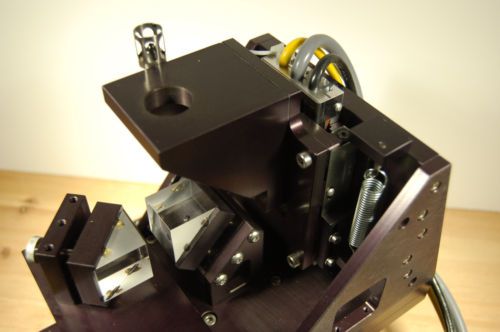

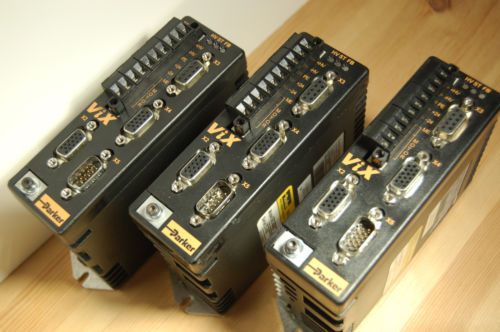

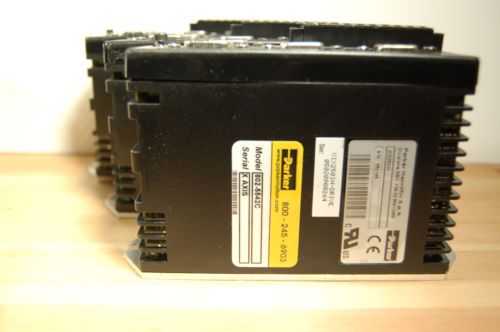

Parker Daedal MX80L high-precision servo motorized XYZ stage. The Z-stage is coupled to an angle bracket that has an RMS-sized threaded hole and is also outfitted with a temperature sensor. Included are also three (3) ViX servo controllers for each axis. Detailed documentation for these controllers can be found online. Was removed from a working instrument. Part numbers and specifications for the stage are as follows (according to Parker Daedal): MX8OLTO4MSD13H**L**CM04Z3E4R1A1X1S2 (X Axis, bottom) MXS0L Miniature Linear Motor Stage T04 - 150 mm travel M - Metric Mounting S - Standard grade D13 -8 Pole Linear Motor (100 & 150mm travel units only) **H - Home Sensor N.0. current sinking (NPN) **L - Limit Sensors N.C. current sinking (NPN) CMO4 - 1.0 m High-Flex Cables w/ ViX Connector Z3 - Center Position Z-Channel E4 - 0.10 micron Resolution Encoder R1 - Standard Finish A1 - No Drive X1 - No Additional Options S2- X axis base unit (Cables at 12:00) MX8OLTO3MSD13H**L**CM**Z3E4R1A1X1S** (Y Axis, middle) MX8OL Miniature Linear Motor Stage TO3 - 100 mm travel M - Metric Mounting S - Standard grade D13 -8 Pole Linear Motor (100 & 150 mm travel units only) **H - Home Sensor N.0. current sinking (NPN) **L - Limit Sensors N.C. current sinking (NPN) **CM - 1.41 m High-Flex Cables w/ ViX Connector Z3 - Center Position Z-Channel E4 - 0.10 micron Resolution Encoder R1 - Standard finish A1 - No Drive X1 - No Additional Options **S - Y-axis (cables at 3 oclock) - 30 arc sec. orthogonality MX8OLTO1MSD11H**L**CM**Z3E9R2A1X**S1 (X Axis, top) MX8OL Miniature Linear Motor Stage TO1 -25 mm travel M - Metric Mounting S - Standard grade D11 - 4 Pole Linear Motor (25 & 50mm travel units only) **H - Home Sensor N .0. current sinking (NPN) **L - Limit Sensors N.C. current sinking (NPN) **CM - 1.65 m High-Flex Cables w/ ViX Connector Z3 - Center Position Z-Channel E9 - 0.01 micron (10 nanometer) Resolution Encoder R2 - Clean Room Preparation A1 - No Drive **X - Spring counter balance S1 - No X-Y Configuration

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...

Brand

Parker
