Partlow Mrc 5000 Temperature Recorder, 1 Ch

US $1,516.00

Wilmington, North Carolina, United States
Jul 25th

Open on mobile:
QR code

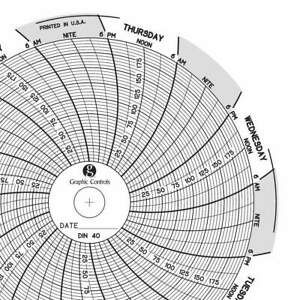

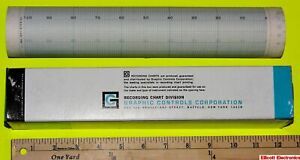

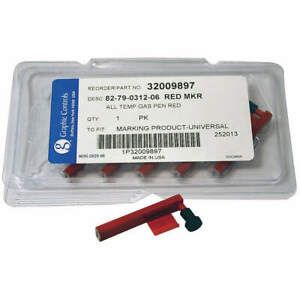

Partlow MRC 5000 Temperature Recorder, 1 Ch Model: MRC 5000 | Order No:51000011 Features 10' diameter recording charts with user selectable chart speeds: 8, 12, 24, and 48 hours, and 7 days. 1 trend pen version, with configurable spans. Brand: Partlow Model: MRC 5000 Order No: 51000011 Condition: NEW Description Partlow MRC 5000 Temperature Recorder, 1 Ch Features Two programmable alarms per pen Universal sensor inputs: thermocouple, 3-wire RTD, or DC linear (mA, mV, V) Just one one jumper to configure each input port 4 digit LEDdisplay and 3 button keypad make configuration changes fast and easy User interface provides access to test and calibration facilities with dual function MODE switch Optional Configurator port for ultimate programming ease, using the optional PC program, parameters can be modified, saved, and downloaded in seconds High/Low limit capability available Universal power supply NEMA 3 case standard Fits 12.7" square panel cutout Recording charts supplied in boxes of 100 are sold separately Included Partlow MRC 5000 Temperature Recorder, 1 Ch Specifications Recording Pen Type Disposable fiber tip Pen Colour Pen 1 - Red; Pen 2 - Green Chart Size 10" Chart Drive Stepper motor Chart Rotation User configurable; 8-hour, 12-hour, 24-hour or 7-day Chart Span Bottom & top of span, -9999 to 9999 units Input Ranges J T/C 0 to 700°C & 0 to 1400°F K T/C 0 to 1360°C & 0 to 2500°F T T/C -200 to 400°C & -330 to 750°F R T/C 200 to 1650°C & 400 to 3000°F S T/C 200 to 1650°C & 400 to 3000°F RTD 100Ω -140 to 400°C & -220 to 750°F Platinum 0.00385Ω/Ω/°C DC Current 0 to 20mA, 4 to 20mA; Internal 4.7Ω shunt resistor DC Voltage 0 to 25mV, 0 to 50mV, 10 to 50mV, 0 to 5V, 1 to 5V Input Performance Measurement Error Type J, K, T, R, S & RTD: ±0.25% of span ±1° mA, mV & VDC: ±0.25% of scaled span + 1 LSD Cold Junction ± 0.2°C @ 25°C Compensation Error 0.04°C/°C deviation from 25°C Linearization Error TCs: ± 0.25°C typical. ± 0.5°C worst case RTDs: ±0.1°C typical, ± 0.3°C worst case Ambient Temperature Error ±0.01% of span/°C deviation from 25°C Alarms Number Up to 2 process alarms for each of 2 inputs Type Process high or low Limit Devices Optional high/low limits for each input with latching output Normally open output latches open Red reset button included to right of display Hysteresis Fully adjustable, 0 to 200 units, single sided Security Alarm setpoint changes can be prohibited Sensor Fault Action Alarms work normally in "Hi" and "Lo" conditions Relay Outputs Relays SPST, contacts rated 5A resistive at 115VAC, 2.5A resistive @ 230VAC, 1/8 HP @ 230VAC (single phase), 250VA A 115/230 VAC Power Requirements Line Voltage 90-264 VAC, 50/60 Hz Power Consumption 18 VA max. Construction Enclosure Ijection molded Noryl case and cover with acrylic window NEMA Rating NEMA 3 standard Mounting Panel or wall Panel Cutout 12.7" x 12.7" (322.6 x 322.6mm) Panel Depth 2.5" (63.5mm) Panel Protrusion 1.3" (33.0mm) Overall Dimensions 14 x 14 x 3.8" (355.6 x 355.6 x 96.5mm) Weight 15 lb (6.8 kg) Terms & Conditions Item Condition: Unless specified otherwise all products listed are Brand New in the original factory packaging and include a full factory warranty. Shipping: We currently only ship to U.S. buyers. We ship items within one or two business days from payment. We do not process shipments on weekends and holidays. Local pick up is not available. We only ship to addresses verifiable by either PayPal or credit card issuing bank. Please note that we cannot alter the address once a purchase is made. In the case of PayPal payment, we will ship orders when the payment is marked “Eligible” for PayPal Seller’s protection. *Shipping Rates are for Continental US, Please Contact us for other US Destinations Payment: Currently all payments must be made directly though PayPal Sales Tax: We are required to charge sales tax in North Carolina Return Policy: If for any reason you are not 100% satisfied with a product you receive from us, you may return the regular stock product within 30 days from the time of receipt, for a full refund or exchange of the product you purchased (less any shipping costs). Within this time, products may be returned; freight prepaid and must be in their original packaging and in resalable condition. Shipping errors, missing items or damages must be reported to us immediately (damages should be accompanied by a signed bill of lading acknowledging the damage). Items returned will be inspected for damage or misuse at which time they may be subject to restocking fees, other fees or refused, prior to the issuance of any credit.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Partlow
Model	MRC 5000
MPN	MRC 5000
