Pc Usb Digital Oscilloscope 20m 48msps 2 Ch 1mb/ch Data Logger Logic Analyzer

US $95.57

Shenzhen, China
Jan 29th

Open on mobile:
QR code

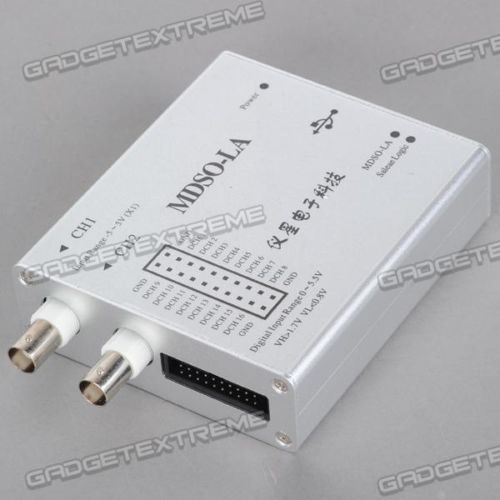

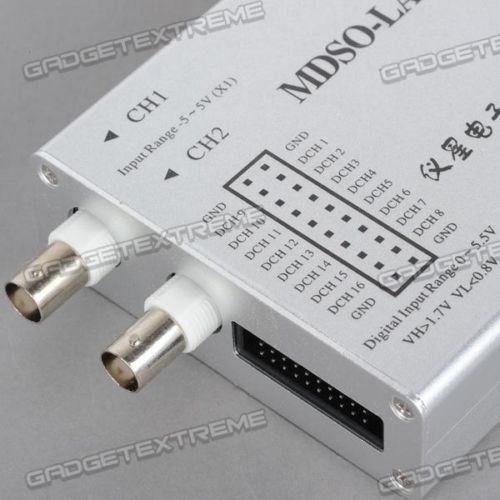

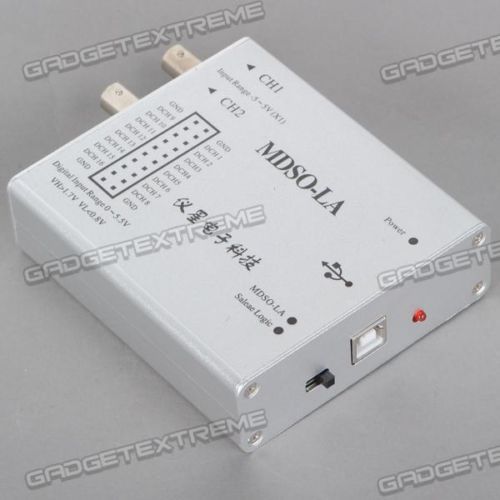

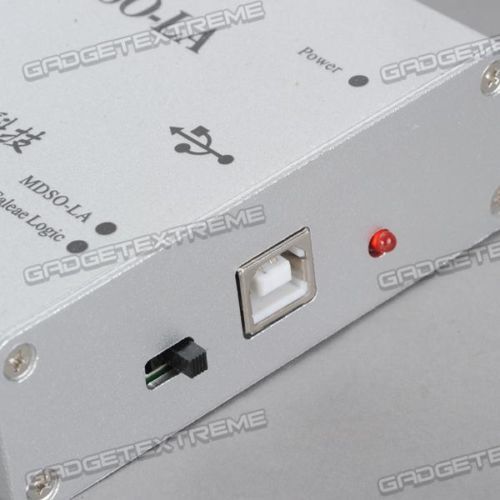

PC USB Digital Oscilloscope 20M 48Msps 2 CH 1MB/CH Data Logger Logic Analyzer Description: PC USB Digital Oscilloscope 20M 48Msps 2 CH 1MB/CH Data Logger Logic Analyzer Oscilloscope features: • Number of channels: 2; • Sample rate: 48MHz; • Memory depth: 1M; • Voltage resolution: 1V/256; • High-speed USB 2.0 data transmission; • Minimum measuring signal input:-50V (with probe X10); • Measurement signal input: +50 V (with probe X10); (Probe X1 stalls, testing peak Peak 10V signaling) • Maximum measurement frequency (ideal): sine-15MHz square wave-5MHz; • Measured values (according to the sampling theorem, theory 48MHz, but because of the increased frequency of testing, resulting in fewer sampling points, there will be distortion waveform restore) • Software trigger: rising, falling, rising / falling edge, differential, rise + differential; Data logger features: • Number of channels: 2; • Data storage format: OSC files, CSV files (you can use Excel to directly open); • Sampling rate range: 0.25MHz-24MHz (specific sampling rate is determined by the computer); (Probe X1 stalls, testing peak Peak 10V within the signal to meet the commonly used voltage range) • Minimum measuring signal input:-50V (with probe X10); • Measurement signal input: +50 V (with probe X10); • Consecutive stored waveform, and to support the global scaling and mobile viewing; • Supports repeatedly recorded data at the same time to load, easy waveform. Logic analyzer features: • Logic analyzer-1: Number of channels: 16 (DCH1-DCH16); Sample rate: 0.25M-24MHz; The memory depth: Determine the size of the computer's hard drive; Can be continuously stored data, and support global, zoom, and mobile viewing. • Logic analyzer-2: Number of channels: 8 (DCH1-DCH8); Sample rate: 0.025 M-24MHz; Memory depth: Determine the size of the computer's hard drive; Can be continuously stored data, and support global, zoom, and mobile viewing. Support for protocol analysis: SPI, I2C, CAN, UART, I2S/PCM, the DMX-512, Manchester, 1-WIRE, the Simple of Parallel, UNI / O; Software features: • Can save waveform; • Start, pause functions; • Move the cursor to measure the voltage and time; • Measured signal frequency, the average peak to peak display; • Convenience of Windows imitation of the kind of man-machine interface; • Through the software interface to a variety of switching operations; (time scale, voltage scale, closed and open channels, etc.); • With the saved waveform zoom in and out of the window to the selected part of the observation function; Support any multi-screen display to facilitate the diverse analysis of the waveform; support the input waveform hardware and software triggers; support the interpolation of the input waveform and equivalent sampling; support of the input waveform "add", "subtraction" and "phase Multiply synthesis; Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss, dolph_chebyshev 18 kinds window support plus the input waveform; support filtering of the input waveform; support of the input waveform Lissajous Ru graphics "," amplitude-frequency "," frequency "," logarithmic amplitude-frequency power spectrum, the logarithmic power spectrum, self-and cross-correlation analysis; support in logarithmic coordinates, the input waveform amplitude-frequency "," frequency "and" several pieces of frequency, power spectrum, on the number of self- power spectral analysis. Package included: • Main Device*1; (Dimensions: 10cm * 9cm * 3cm) • USB 2.0 extension cable*1; • 40 M standard oscilloscope probe*2; • Logic analyzer test clip *20; Shipping & Payment: Here Offer 100% Satifiation Service,Inlucde re-send item&refund payment; All items here offer 1 year warranty It is not my Duty for Custom Tax All items will be shipped via int'l air mail(( no tracking number for items under $50), the time normally takes 7-15 business days. may be later arrivel if the item is checked by custom; We only accept paypal payment.
