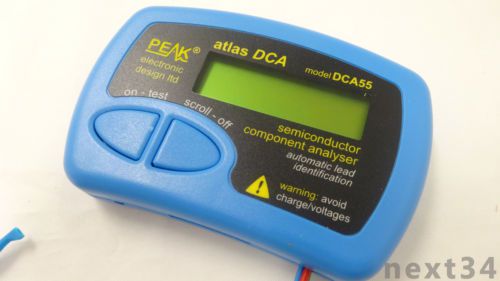

Peak Atlas Dca55 Semiconductor Component Analyser Tester Dca 55 New From Japan

C $76.98

Kanagawa, Japan
Jan 29th

Open on mobile:
QR code

Item infomation Additional Features/Functions Brand Peak Atlas Model DCA55 Product Type Semiconductor Component Analyser Color Blue ?The Atlas DCA 55 offers unrivalled functionality and style. ?The analysis portfolio is bigger than ever, offering enhanced message display and intelligent component identification. ?This superb instrument displays incredibly detailed information in scrollable pages. ?The Atlas combines an impressive analysis portfolio with unequalled ease of use. ?Connect your component any way round and let the Atlas do the rest. ?It will measure the gain of transistors, the threshold voltage of MOSFETs, and semiconductor voltage drops. ?It will even identify special component features such as diode protection on transistors or resistor shunts on Darlingtons. ?The new intelligent analysis algorithms makes life much easier when dealing with unknown components. ?For example, the Atlas will tell you if it has detected many different types of diode networks such as series types, common cathode, common anode and even inverse parallel types. ?Additionally, the Atlas knows the difference between normal diodes and LEDs and it will correctly identify and characterize both LED chips in two terminal and three terminal bicolor LEDs. ?The Atlas supports Diode Protected Transistors. ?It is important to note however that the transistor itself will only be identified if it's current gain is larger than 4 for a test current of 2.5mA. ?If the gain is less than 4 at 2.5mA then the Atlas will only be able to "see" the diode junctions and will report that the device is a diode network. ?Bear in mind that transistor gain can be very low at low test currents particularly if the transistor has base-emitter shunt resistors. Click Here To Contact Us / Japan-next34 Stores Shipping Policy ?We will ship world wide ! The item is shipped from Japan. ?We will ships within 3-5 business days after receiving cleared payment. ?We have not attached the tracking number in dispatch of USD $50 or less. ?My products are 100% Authentic. I carefully pack your important item. ?We are not responsible for undeliverable address. We reserve the right to charge the shipping fee again for returned items due to wrong address. Payment Method ?We only accept payment via Paypal. Please kindly check if you can do the payment via PayPal. ?Please pay within 5 days after purchase is finished. Returns Policy ?Return is accepted for this item. ?Exchange item within 14 days if returned by customer. ?Please give me the inquiry about refund from here. [Click Here To Contact Us]

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Peak Atlas
Model	DCA55
