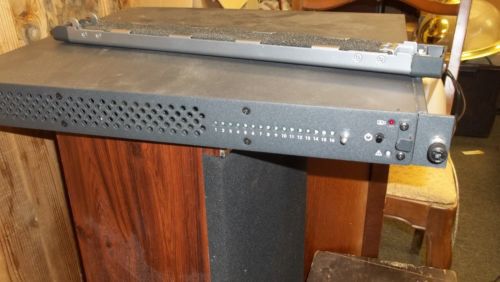

Pelco Endura ENC5316 USB Multi-Channel Video Encoder 5300 Series DVR1, US $400.00 – Picture 0

Pelco Endura ENC5316 USB Multi-Channel Video Encoder 5300 Series DVR1, US $400.00 – Picture 1

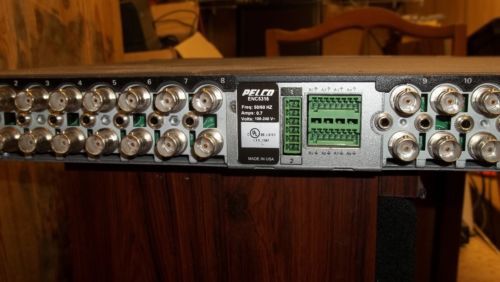

Pelco Endura ENC5316 USB Multi-Channel Video Encoder 5300 Series DVR1, US $400.00 – Picture 2

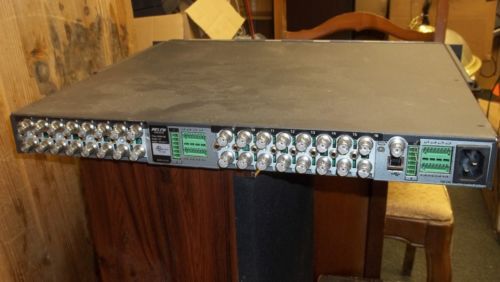

Pelco Endura ENC5316 USB Multi-Channel Video Encoder 5300 Series DVR1, US $400.00 – Picture 3

Pelco Endura Enc5316 Usb Multi-channel Video Encoder 5300 Series Dvr1

US $400.00

Rhinelander, Wisconsin, United States
Jan 30th

Open on mobile:
QR code

I also have the DVRs, cameras, and Matrix Switches Check out my other items! The ENC5316 USB Multi-Channel Video Encoder accepts 16 channels of live analog video and converts it to MPEG-4 streams. Designed for Pelco 5300 series DVRs, it offers up to 48 channels of input when 3 units of this encoder are cascaded. It is compatible with all Pelco surveillance tools and feeds from the unit can be viewed through a CM9700 matrix switch The high quality streams can be encoded at up to 4CIF resolutions with frame rates of 30 ips. The ENC5316 also accepts 16 audio inputs that it encodes into G.711 digital audio streams. In addition to 16 programmable alarm inputs, the video encoder accepts a variety of sensors. It also has 4 relays to respond to any alarm event. The inputs are compatible with the Pelco CM9760-ALM module and the outputs with the CM9760-REL module. Administrators can define up to 3 zones for motion detection and the zone type can be defined in 16x16 blocks. The sensitivity of each zone is adjustable to minimize false alarms in high traffic areas. The ENC5316 connects via a high-speed USB 2.0 interface and allows the network port of the DVR to be used by other devices. Inputs and outputs 16 BNC inputs, 0.5 - 1Vp-p, looping 1 BNC output, 1 Vp-p 16 3.5mm monaural line in ports, 1Vp-p (0dBV, 10 kohms) PTZ support using Coaxitron protocol Video and audio MPEG-4 video coding Resolutions from CIF up to 4CIF [i.e. 704x480 (NTSC) and 704x576 (PAL)] 30 ips (NTSC) and 25 ips (PAL) at 4CIF resolutions G.711 audio coding at 64 kbps Alarms 3 programmable alarm inputs, 5.0 VDC, 10 kohms, triggered, CM9760-ALM compatible 4 form-C relay outputs, 30 VDC 2A or 125 VAC 0.5A, CM9760-REL compatible Motion detection 3 main zones and 1 additional background zone User definable shapes in 16x16 pixel blocks Adjustable sensitivity and threshold in each zone to reduce false alarms in high traffic areas Power and miscellaneous features 100-240 VAC power supply, 50/60 Hz, 0.7A Specs Video Inputs 16, BNC, looping, 0.5-1 Vp-p PTZ Control Coaxitron Alarm I/O Alarm Inputs: 8 or 16, programmable, 5.0 VDC, 10 kohms, triggered, CM9760-ALM compatible Relay Outputs: 2 or 4, form-C relay, 30 VDC 2 A or 125 VAC 0.5 A, CM9760-REL compatible Motion Detection Zones: 3 plus background zone Zone Types: Any shape, user-definable in 16 x 16 pixel blocks Sensitivity: Adjustable Auxiliary Connectors USB: 2.0, 1 high-speed USB 2.0 port on rear panel Alarms: 2 or 4, 8-pin terminal block Relays: 1 or 2, 6-pin terminal block LED Indicators Power: Blue USB Video Status: Red USB Video Operation: Green Unit Status: Green, amber, red Power Input 100-240 VAC, 50/60 Hz, 0.7 A, autoranging Power Consumption 100 VAC 40 W, 137 BTU/H 115 VAC 40 W, 137 BTU/H 200 VAC 40 W, 137 BTU/H Construction Construction: Steel cabinet Finish Bezel: Gray metallic with black end caps Finish Chassis: Black matte finish Operating Temperature 50 - 95°F (10 - 35°C) at unit air intake in front of unit Dimension (DxWxH) 16.7 x 17 x 1.7" (42.4 x 43.2 x 4.3cm) Tested Working

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Pelco
Model	5316
