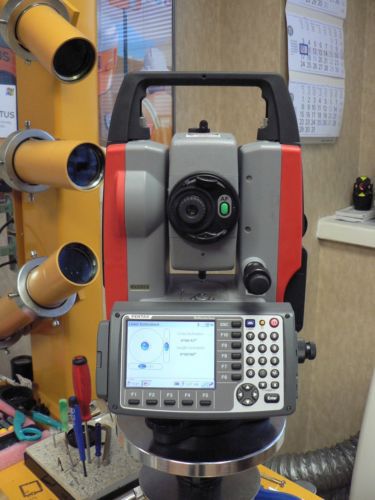

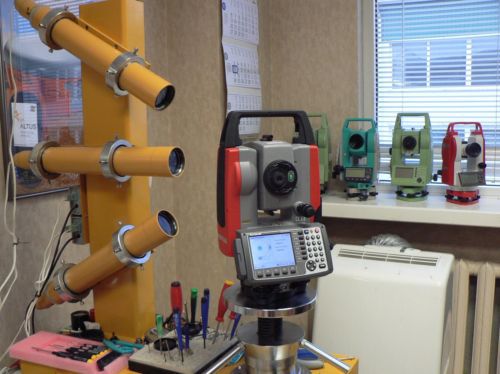

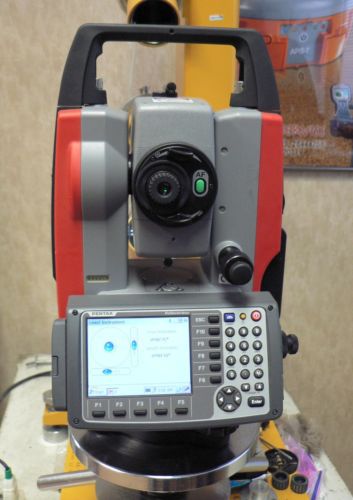

Pentax W-825NX Reflectorless Total Station with MicroSurvey FIELDGenius EX DEMO, US $6,616.00 – Picture 0

Pentax W-825NX Reflectorless Total Station with MicroSurvey FIELDGenius EX DEMO, US $6,616.00 – Picture 1

Pentax W-825NX Reflectorless Total Station with MicroSurvey FIELDGenius EX DEMO, US $6,616.00 – Picture 2

Pentax W-825NX Reflectorless Total Station with MicroSurvey FIELDGenius EX DEMO, US $6,616.00 – Picture 3

Pentax W-825nx Reflectorless Total Station With Microsurvey Fieldgenius Ex Demo

US $6,616.00

Riga, Latvia
Jan 30th

Open on mobile:
QR code

All instruments before sale have been checked and calibrated. Open Platform allows you to run major softwares such as PowerTopoCE, SurvCE Graphical Stakeout display results in real time on colour maps as you measure in the field Increased Productivity swift and easy connectivity, large colour LCD, 640x480 pixels with touch screen function Pentax’s exclusive Auto Focus system Complete with MicroSurvey FIELDGenius software. Can be equipped with other surveying programs. Telescope Magnification 30x Effective aperture 45mm (EDM 45mm) Resolving power 3.0" Field of view 2.6% 1°20' Minimum focus 1.0m Focus Auto fokuss / power fokuss / manuals fokuss Distance measurement Laser class Visible laser: III a (R3) (Reflectorless) / II (2) (Prism, sheet) Measurement range Reflectorless 1.5~500m Reflector sheet 1.5~600m Mini prism 1.5~2500m 1P 1.5~7000m 3P 1.5~9000m Accuracy Prism / Reflector sheet ± (2+2ppm x D) mm Reflectorless 1.5~300m: ± (5+2ppm x D) mm / 300m~: ± (7+10ppm x D) mm At Auto - ATM Correction Prism / Reflector sheet ± (2+10ppm x D) mm Reflectorless 1.5~300m: ± (5+10ppm x D) mm / 300m~: ± (7+18ppm x D) mm Minimum count 0.1 mm (Fine mode) / 1 mm (Normal mode) / 10 mm (Track mode) Meassuring time Normal (1mm) Prism / Reflector sheet 2.0 sec. - Reflectorless 2.0 sec Quick (1mm) Prism / Reflector sheet1.2 sec Track (10mm) Prism / Reflector sheet 0.4 sec. - Reflectorless 0.4 sec Angle measurement Measurement method Absolute rotary encoder Minimum count 0.5"/1"/5" Accuracy (ISO-17123-3) 5" Compensator 2 Axis Target screw 1 speed Laser Plummet Visible laser: ±0.5mm (instrument height 1.5m) Base Shifting Dust & water resistance IPS4 Ambient temperature -20°C ~ +50°C Tripod thread 5/8" Weight (incl.battery) 6.3 kg Battery pack Power source Ni-MH 4300mAh (rechargeable) DC6V Operation time Approx. 7 h Data Process CPU, Clock frequency Intel® - xScale, 400MHz OS Microsoft ® - Windows® CE4.2 Internal memory SDRAM=64MB / Flash=128MB Memory card 2GB (max) (nav starndarta kompl.) I / F RS-232, CF Typell, SD CARD, USB Display / keyboard Display tipe 3.7 inch - Color LCD, 640x480 pixel with back light and touch panel function Quantity 1 (2nd optional) Keys 33 each (12 numeric / 11 function / 10 special) Display back light Intensity settings: 10 steps Laser Pointer Yes Date clock Yes

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	PENTAX
Country/Region of Manufacture	Japan
Model	W-825NX
