Perkin Elmer Digital X-ray Xrd 1640 Detector Xray An3 Cts

US $24,999.99

Los Altos, California, United States
Feb 14th

Open on mobile:
QR code

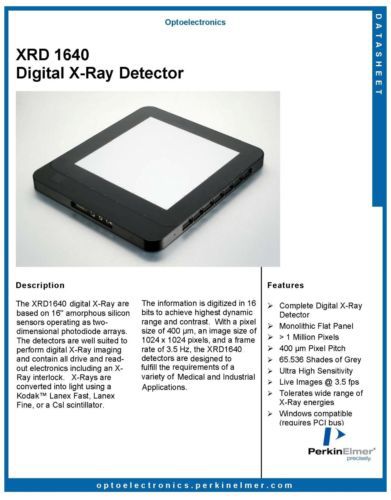

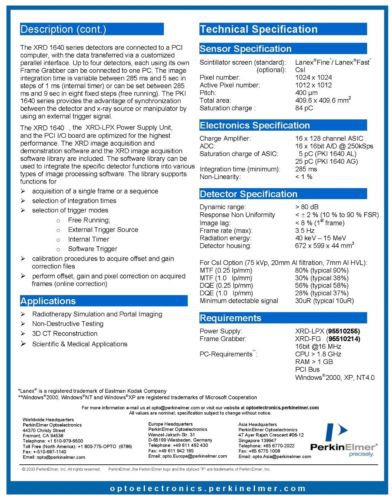

PERKIN ELMER DIGITAL X-RAY DETECTOR XRD 1640 AN3 CTS Manufactured 2012 DESCRIPTION The XRD1640 digital X-Ray detectors are based on 16'' amorphous silicon sensors operating as two dimensional photodiode arrays. The detectors are well suited to perform digital X-Ray imaging and contain all drive and readout electronics including an XRay interlock. X-Rays are converted into light using a Kodak™ Lanex Fast, Lanex Fine, or a CsI scintillator. The information is digitized in 16 bits to achieve highest dynamic range and contrast. With a pixel size of 400 ?m, an image size of 1024 x 1024 pixels, and a frame rate of 3.5 Hz, the XRD1640 detectors are designed to fulfill the requirements of a variety of Medical and Industrial Applications. The XRD 1640 series detectors are connected to a PCI computer, with the data transferred via a customized parallel interface. Up to four detectors, each using its own Frame Grabber can be connected to one PC. The image integration time is variable between 285 ms and 5 sec in steps of 1 ms (internal timer) or can be set between 285 ms and 9 sec in eight fixed steps (free running). The PKI 1640 series provides the advantage of synchronization between the detector and x-ray source or manipulator by using an external trigger signal. The XRD 1640, the XRD-LPX Power Supply Unit, and the PCI I/O board are optimized for the highest performance. The XRD image acquisition and demonstration software and the XRD image acquisition software library are included. The software library can be used to integrate the specific detector functions into various types of image processing software. The library supports functions for acquisition of a single frame or a sequence selection of integration times selection of trigger modes Free Running External Trigger Source Internal Timer Software Trigger calibration procedures to acquire offset and gain correction files perform offset, gain and pixel correction on acquired frames (online correction) Features Complete Digital X-RAY Detector Monolithic Flat Panel > 1 Million Pixels 400 ?m Pixel Pitch 65.536 Shades of Grey Ultra High Sensitivity Live Images @ 3.5 fps Tolerates wide range of X-Ray energies Windows compatible (requires PCI bus) APPLICATIONS Radiotherapy Simulation and Portal Imaging Non-Destructive Testing 3D CT Reconstruction Scientific & Medical Applications 30 Day Warranty on this item. This is a used system so "DO" expect slight abrasions and surface scratches that do not effect functionality. The sale is for Unit(s) only as pictured and listed, no power supply or any other accessories are included!! NOTE: No software of any kind is provided with the Hardware. Please contact PERKIN ELMER directly to obtain any necessary software and maintenance support. Payment "We Only Accept PayPal" We do not ship to unconfirmed addresses, please contact us first if the address is not confirmed by PayPal. Terms · We offer shipping to all 48 continuous United States via USPS. International Shipping cost is based on location. We ship USPS priority mail international, please realize transit times are out of our control and may take weeks depending on destination. If you need express mail / FedEx service please contact us for a shipping cost quote · Shipping costs will be paid by the buyer, and will be added to the invoice during checkout. · Operating Hours are M-F 8:00AM-4:00PM Pacific Standard Time. For weekend or after-hours purchases please us allow ample time to respond. · Payment must be received within one week of the close. We reserve the right to cancel the transaction and re-list the item if payment has not been received within this time frame. · For weekend and Holiday purchases please allow up to 1-2 business days after payment is received for your order to be processed before shipping.

“UNIT ONLY - USED / UNTAMPERED - NO POWER SUPPLY OR OTHER SOFTWARE / ACCESSORIES”

Brand	PERKIN ELMER
Model	XRD 1640
