Phoenix Contact Relay Terminal Block Cat# Plc-bsc-120uc/21120v With 296118 Relay

US $25.99

Long Beach, California, United States
Jan 29th

Open on mobile:
QR code

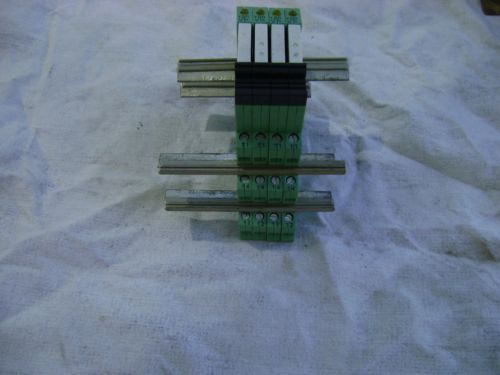

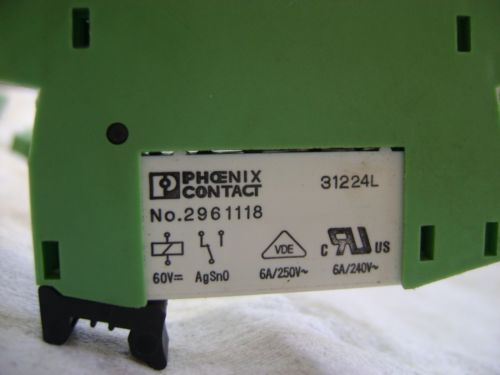

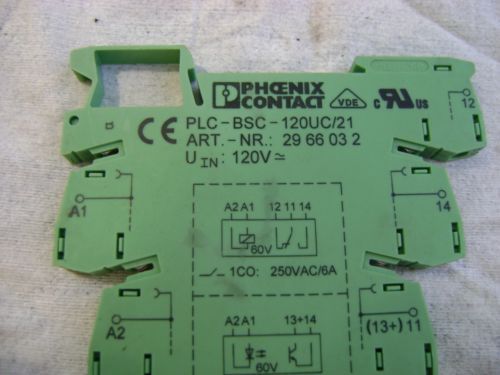

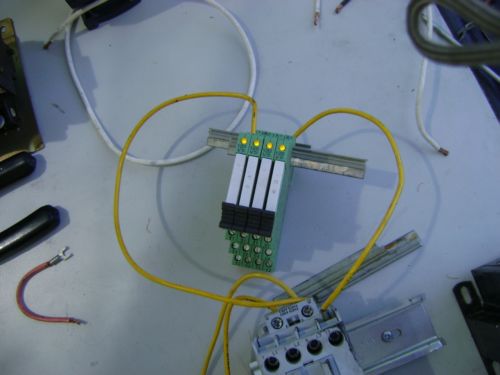

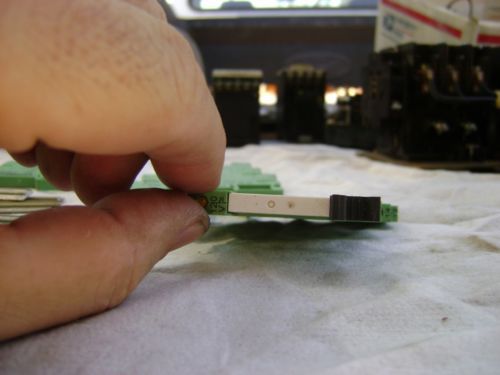

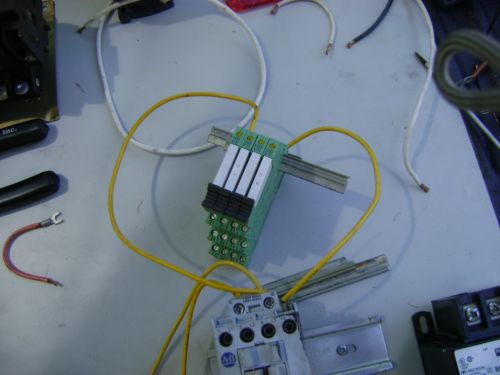

These were extras, sat in a box for several years. tested with 120v AC. Coil looks to be rated for 60vDC, socket 120v AC-DC LOT OF 4 phoenixcontact.com/us/products/2961118 phoenixcontact.com/us/products/2966032 09/12/2014 Page 1 / 5 Single relay - REL-MR- 60DC/21 - 2961118 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid Plug-in miniature power relay, with power contact, 1 PDT, input voltage 60 V DC The illustration shows the version REL-MR- 24DC/21 Product Features Safe isolation according to DIN EN 50178 between coil and contact High degree of protection, up to RT III (comparable with IP67) depending on type Power contacts up to 6 A Key commercial data Packing unit 1 pc Minimum order quantity 10 pc GTIN Weight per Piece (excluding packing) 9.54 GRM Custom tariff number 85364190 Country of origin Czech Republic Technical data Dimensions Width 5 mm Height 28 mm Depth 15 mm Ambient conditions Ambient temperature (operation) -40 °C ... 85 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Single relay - REL-MR- 60DC/21 - 2961118 Technical data Coil side Nominal input voltage UN 60 V DC Typical input current at UN 3 mA Typical response time 5 ms Typical release time 2.5 ms Coil resistance 20500 ? ±15 % (at 20 °C) Contact side Contact type 1 PDT Contact material AgSnO Maximum switching voltage 250 V AC/DC Minimum switching voltage 5 V (at 100 mA) Maximum inrush current on request Min. switching current 10 mA (at 12 V) Limiting continuous current 6 A Interrupting rating (ohmic load) max. 140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity in acc. with DIN VDE 0660/IEC 60947 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15) General Test voltage relay winding/relay contact 4 kV AC (50 Hz, 1 min.) Operating mode 100% operating factor Mechanical service life 2 x 107 cycles Standards/regulations IEC 60664 EN 50178 IEC 62103 Pollution degree 3 Surge voltage category III Mounting position any Assembly instructions In rows with zero spacing Single relay - REL-MR- 60DC/21 - 2961118 Relay socket - PLC-BSC-120UC/21 - 2966032 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid 6.2 mm PLC basic terminal block with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 120 V AC/DC Key commercial data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 36.0 GRM Custom tariff number 85369010 Country of origin Germany Technical data Note Utilization restriction EMC: class A product, see manufacturer's declaration in the download area Dimensions Width 6.2 mm Height 80 mm Depth 94 mm Ambient conditions Ambient temperature (operation) -40 °C ... 55 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Input data Nominal input voltage UN 120 V AC/DC Relay socket - PLC-BSC-120UC/21 - 2966032 Technical data Input data Status display LED Protective circuit Bridge rectifier Connection data Conductor cross section solid min. 0.14 mm? Conductor cross section solid max. 2.5 mm? Conductor cross section stranded min. 0.14 mm? Conductor cross section stranded max. 2.5 mm? Conductor cross section AWG/kcmil min. 26 Conductor cross section AWG/kcmil max 14 Connection method Screw connection Stripping length 8 mm Screw thread M3 General Color green Operating mode 100% operating factor Inflammability class according to UL 94 V0 Standards/regulations IEC 60255/DIN VDE 0435 (in relevant parts) DIN EN 50178/DIN VDE 0160 (in relevant parts) EN 60730/DIN VDE 0631 Mounting position any Assembly instructions In rows with zero spacing Phoenix Contact 2014 © - all rights reserved phoenixcontact.com

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“tested good”
