Pl300 Tone Generator Test Set Parkway Systems Untested

US $25.00

Jacksonville, Florida, United States
Jan 29th

Open on mobile:
QR code

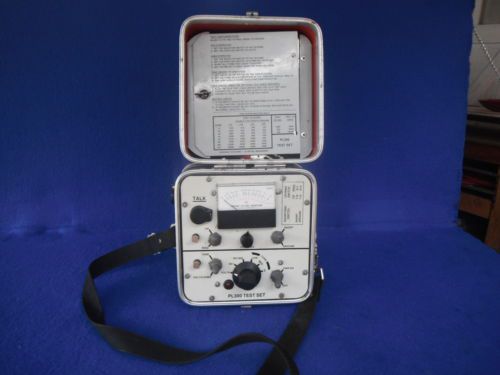

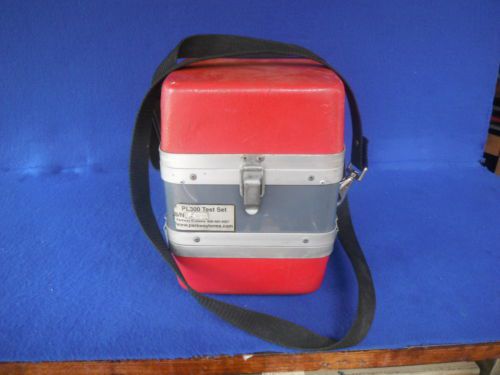

Parkway PL300 Test Set I was told it works but the batteries are dead. Since I have no way to test, its being sold as is. Info from Parkway: Tone Set is designed to be used by outside plant personnel to furnish tone for conductor identification, coiling to a fault, resistance and DC voltage measurements and talk circuit. The PL300 is a self-contained, battery powered, ohm-meter, DC volt-meter, tone generator, and talk set. The ohm-meter is used for testing the resistance of cable pairs to determine if shorts or opens exist. It is also used in line balance tests. The DC Voltmeter is used for measuring DC voltage from 0-130 VDC. The tone generator is used to supply a cable pair with an adjustable level, interrupted type tone for use in pair identification and trouble-shooting. The talk circuitry provides a means of communication between two operators during cable pair identification. The PL300 is self-contained in a 7"x7"x9" high impact plastic carrying case. The ohm-meter consists of a rugged taut band instrumentation type meter movement and associated circuitry to allow the operator to select either RX1, or RX1000 ohms scales. Polarity of the testing voltage is selected by a polarity switch, for use in capactive "kicking" and line balance tests without having to physically swap the tests leads. The DC voltmeter is selected by placing a rotary switch in the Volts position. DC measurements from 0-130 VDC can be made. THe tone generator provides an interrupted tone sourc of 580 hertz +/- 10 percent, 50 percent duty cycle, interrupted at 3 hertz. The output level is operator selectable over a range of 22 volts to 90 volts (peak to peak) in three steps (22V LOW, 67V MED and 90V HI). The polarity of the output voltage is operator selectable via a polarity switch. A neon lamp provides a visual indication of tone generator operation. The talk circuitry consists of two dial posts, a 3-way phone jack, and a 9 volt battery. Power for the tone generator and RX1000 is supplied by two 45 volt batteries. Power for RX1 is supplied by one 1.5 volt battery. The talk circuit is supplied by one 9 volt transistor battery.

Condition	For parts or not working : An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the seller’s listing for full details.

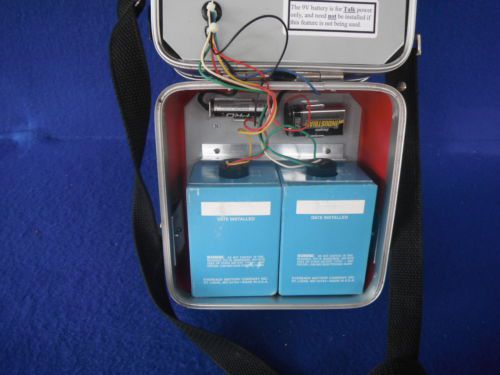

Seller Notes	“Untested Needs batteries”
