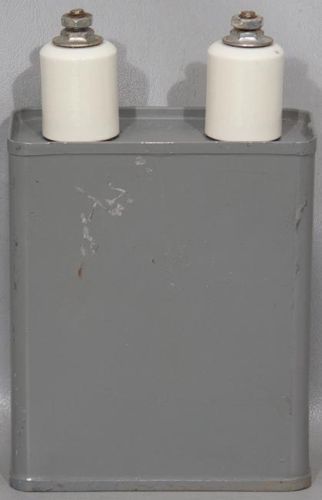

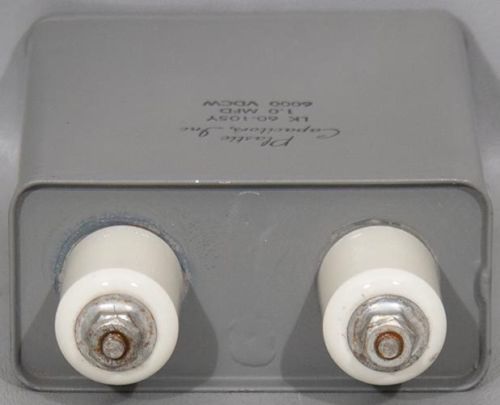

Plastic Capacitors LK60-105Y 6kVDC 1 MFD High Voltage Capacitor 6kV LK 60-105, US $186.97 – Picture 0

Plastic Capacitors LK60-105Y 6kVDC 1 MFD High Voltage Capacitor 6kV LK 60-105, US $186.97 – Picture 1

Plastic Capacitors LK60-105Y 6kVDC 1 MFD High Voltage Capacitor 6kV LK 60-105, US $186.97 – Picture 2

Plastic Capacitors LK60-105Y 6kVDC 1 MFD High Voltage Capacitor 6kV LK 60-105, US $186.97 – Picture 3

Plastic Capacitors Lk60-105y 6kvdc 1 Mfd High Voltage Capacitor 6kv Lk 60-105

US $186.97

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

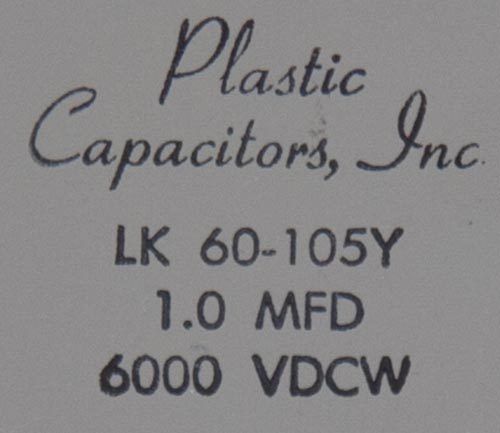

Plastic Capacitors LK60-105Y 6kVDC 1 MFD High Voltage Capacitor 6kV LK 60-105 Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Plastic Capacitors and may vary slightly due to upgrades, options, or revisions this unit may or may not have. These units are pulls from equipment that had to be scrapped due to contractual obligations. The Unit's Serial Number Tag Reads: Part Number: LK 60-105Y Capacitance: 1.0 MFD Voltage: 6000 VDCW Approx. Dimensions: Body Height: 4.375" H (6" H with Studs) Width: 3.75" W Depth: 1.75" D Description: The LK capacitors offer unusually good electrical characteristics, coupled with very small smize. They are designed for twice the life of MIL-C-25D capacitors and will meet or exceed the requirements of characteristics E. These are not QPL listed. Type LK capacitors are specifically designed for filter, bypass and coupling applications in the low audio frequency range. The CP70 style container and internal construction permit operation in any position. Glazed steatite bushings are used, and in the voltage ranges of 2000 and greater, steatite is the electrical insulation in the terminal assembly. The whole assembly is hermetically sealed. Applications: Audio coupling Pulse forming networks Oscillator circuits Arc and spark suppression RF bypass Turned filters Energy storage Power factor correction Integrating circuits Low and high pass filters Specifications: Voltage: 6000 VDCW Capacitance: 1.0 MFD Temperature Range is: -55°C to 105°C. Rated nameplate voltage is from -55°C to 85&Deg;C Temperature Coefficient: Capacitance change over the temperature range is indicated by the limiting curves in graph "T vs. C." Capacitance Tolerance: Standard is 10%. Life Characteristics: Definition of Groups I, II and III are included in life test Paragraph. Group I: Rated for 2,500 hours of life at 85°C and 17,000 hours life at 50°C. For 10,000 hours life at 85°C derate to 75% nameplate voltage rating. For 2,500 hours life at 105°C derate to 1,250 hours life at 85°C, 8,500 hours life at 50°C. For 2,500 hours life at 85°C 85% nameplate voltage rating. Group II: Rated for derate to 85% nameplate voltage rating. For 10,000 hours life at 85°C derate to 65% nameplate voltage rating. For 2,500 hours life at 105°C derate to 70% nameplate voltage rating. Group III: Rated for 500 hours life at 85°C, and 3,500 hours life at 50°C. For 2,500 hours life at 85°C derate to 70% nameplate voltage rating. For 10,000 hours life at 85°C derate to 55% nameplate voltage rating. For 10,000 hours life at 50°C derate to 80%nameplate voltage rating. For More Pictures Please Click the Following: Picture 2 - Back View Picture 3 - Side View Picture 4 - Top View Picture 5 - Unit Information For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $0.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 12/03/14 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“These units were pulled out of equipment that had to be scrapped due to contractual obligations.”
