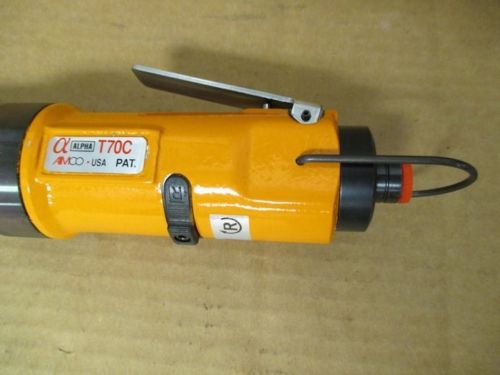

Pneumatic 3/8" Sq Drv Right Angle Pulse Wrench Uryu Aimco ALPHA-T70C, US $990 – Picture 0

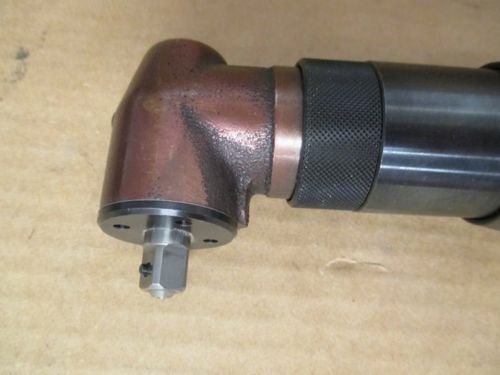

Pneumatic 3/8" Sq Drv Right Angle Pulse Wrench Uryu Aimco ALPHA-T70C, US $990 – Picture 1

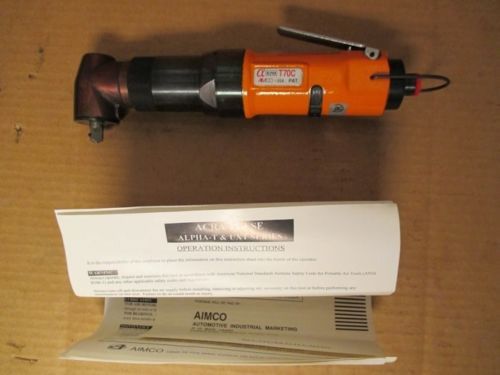

Pneumatic 3/8" Sq Drv Right Angle Pulse Wrench Uryu Aimco ALPHA-T70C, US $990 – Picture 2

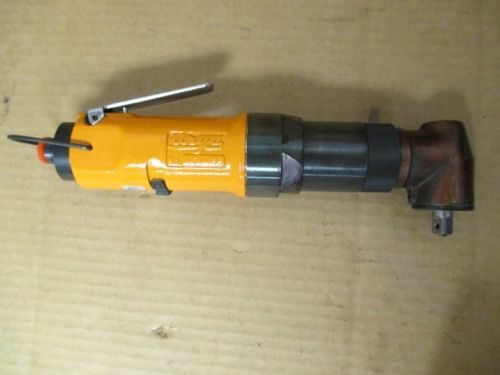

Pneumatic 3/8" Sq Drv Right Angle Pulse Wrench Uryu Aimco ALPHA-T70C, US $990 – Picture 3

Pneumatic 3/8" Sq Drv Right Angle Pulse Wrench Uryu Aimco ALPHA-T70C, US $990 – Picture 4

Pneumatic 3/8" Sq Drv Right Angle Pulse Wrench Uryu Aimco Alpha-t70c

US $990

Detroit, Michigan, United States
Jan 30th

Open on mobile:
QR code

Pneumatic Right Angle 3/8 Sq. Drv. Pulse Wrench by URYU Model: ALPHA-T70C Capacity Nominal Bolt Size: 5mm (5/16") Torque Range: 20-35 Nm (14.4-25.3 ft. lbs) Free Speed Output .5MPa 5800 .6MPa 6100 Overall Length: 266 mm (10 15/32") Weight less socket: 1.80 Kg (4 lbs) Center to Side: 76.5 mm (2 1/32") Square Drive: 70 mm (3/8" ) Average Air Consumption: .45m3/min (15.8Ft3/min) Noise dB(A): 82 Vibration Level m/sec2: 22.4 SAFETY FEATURES Torque reaction is virtually eliminated to reduce wrist injury to operator and create ergonomic working environment. Optimum torque accuracy and repeatability. Uniform fastening torque with narrow mean-shift torque for hard and soft joints thanks to a unique torque control shut-off device (no timer). External one-touch adjustment for automatic shut-off. Uryu quality and design. SETTING OF TIGHTENING TORQUE AIR SUPPLY LINE SIZE: 3/8” to 1/2” drive should use 3/8” ID line and 3/4” to 1” drive should use 1/2” ID line. AIR PRESSURE: Use air pressure 5.0 - 6.0 Kgf / cm2 (70-85 PSI) for optimum performance. Caution: Never use higher air pressure to increase the output of the tool. Overloading will drastically shorten the life of all internal parts. DRY AND CLEAN AIR: Drain daily, and install filter at or near the take-off point to prevent trouble from foreign matter. AIR HOSE AND JOINTS: Use air hose (the shorter, the better), joints, and other fittings of good condition and of proper size to avoid pressure drop. LUBRICATION MAINTENANCE REGULAR OVERHAUL: It is recommended that after every 150,000 pulsing seconds or 180 days the fluid in the tool’s pulse unit be changed. It is also recommended at such time to grease the bearings in the air motor. If the presence of water is noted, it is recommended that a small amount of oil be run through the air motor to wash out any rust residue in the air motor. It is recommended that after every 300,000 pulsing seconds or 365 days that a pulse unit repair kit be installed in the pulse unit. This also allows the inspection of hard parts in the pulse unit.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Make	URYU / AIMCO
MPN	ALPHA-T70C
Model	T70C
Country/Region of Manufacture	Japan
