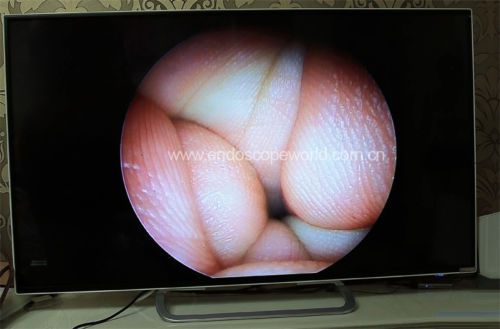

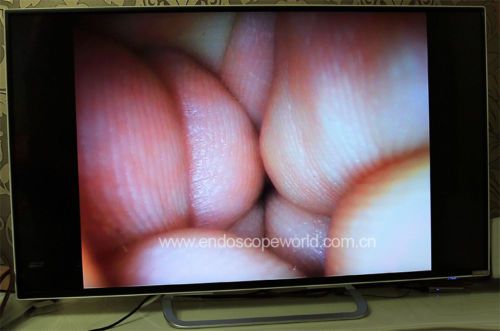

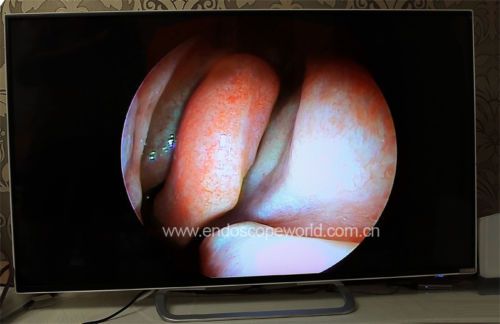

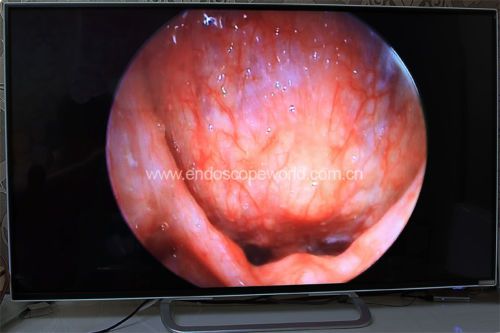

3 X Digital Adjustable Single Ch Portable Endoscopy Camera System High Brightness Light Source + HD Camera Attention: the endoscope is not included! This is a endoscopy camera system which include light source and HD camera. Features light weighted & portable, long continues working time and high image quality. About The Light Source FEATURES: Powerful focused high power LED, enhanced by coated quartz lens, super brightness (250W halogen light source comparable) and super long life (over 40000hours) Accurate 5000-5800K pure white cold light. By rotating the silver collar, light intensity can be adjusted from 30% to 100% The light source can be placed on dock base to be charged, there is indicator on AC adaptor, light will change to green from red when charge is finished. There is charge hole on light source, so it can also be charged directly, it can keep working without battery under this mode, no worry about battery anymore. Use customized 26650 battery, 6800mAh super high capacity, provide 2 hours working time( 100% power). The battery is equipped with dual CMOS protection board and won't be overcharged. The power cord is 2 meters long, with USB connection, so when operated outdoor, you can charge the light source with your laptop or mobile power supply (or any other device with USB port). The light source comes in a strong aluminum case, 2 rigid endoscope (max 8mm diameter and 190mm long) can be putted in besides the light source and accessories. Compatible with Storz, Wolf, Olympus, ACMI, Stryker, Dyonics, Levantec, Hawkeye and any other rigid endoscopes, also compatible with most flexible endoscopes. The whole body are made by aviation aluminum and stainless steel,100% water proof and soakable (only the adaptor can be autoclaved) Anodized surface, abrasion resistant, 4 colors can be chosen (black, blue, red and silver) Comes with 2 free heat isolation sponge covers. 1 Year Warranty Considering size and power assumption, 10W led is still the most powerful portable led light source on market (although some seller say their product are 20W , but actually there is no 20W single LED at all). But due to capacity of battery and huge power assumption of 10W led, all portable light source work less than 1 hour at 100% power, if they are true 10W. So after a short time use, you must stop working and get the battery charged. EW-304 solve this perfectly: Out-door(without power source): EW-304 use customized 26650 battery with super capacity of 6800mAh, provide 2 hours working time at 100% power. Also can be charged by laptop, mobile power supply or any other device with USB connection to extend working time. * The light source is also compatible with 18650 battery, free 18605-26650 adaptor included (shown in the picture below). You can see the comparison of different batteries. Some similar product use AA or AAA size battery (max capacity is around 900mAh) and say their product is 10W, that will make the light work no longer than 15 minutes, it's a lie, it's not 10W at all. In-door (power source available) : The charging dock base provide a much more easier way to charge the battery, you don't need to open the light source and get the battery out (although you can), instead, just put the light source on the dock base and battery will be charged automatically, when battery is fully charged, the indicator light on AC/DC adaptor will change to green and charging will be stopped automatically to protect battery. (The battery is self-protection too due to dual CMOS protection board) . And, the light source can be powered by AC/DC adaptor directly to work without battery. This provide unlimited continues working time. * We have 3 kinds of AC/DC adaptor (US standard, European standard and UK standard), we will send corresponding adaptors, if you have special requirement, please send message to inform us. There are total 5pcs adaptors, 3pcs for rigid endoscope, 1 for flexible endoscope and 1 for light cable, it is compatible with all rigid endoscope and most flexible endoscopes such as Olympus, Pentax, Fuji etc. The light cable adaptor is compatible with R.Wolf light cable, also can be connected to other brand light cable. There are 5 shifts on the magnetic controller (the silver collar), they are: Off-100%-70%- LOCK-Increase( 30%-100% in 7 seconds), so the light intensity can be stepless adjusted. Due to the huge heat emission of high power led, after 20-30mins continues working, the surface will be a little hot (far from hurt skin), we offer 2 free heat isolation cover. (Actually this is not necessary in most cased because EW-304 is well designed for heat dissipation.) EW-304 also accept fiber optic light cable. In this mode, the light intensity is still comparable with 150W halogen light source which is enough to illuminate endoscopy camera. This makes your fiber cable self-lumious! You will have no reason to buy 150W halogen light source now! EW-304 adopted latest high power led and coated quartz lens, choose the best optical design for different brand endoscope. The light intensity is increased significantly than previous model. Instead of comparing with similar product, we challenge 250W halogen light source directly! In the following test, we choose a widely used light source(shown in above picture). It is dual hole xenon light source, the left hole is 250W halogen light source. We use 2 rigid endoscopes, one is 10mm laparoscope and the other is 2.7mm endoscope. The result shows when EW-304 is connected directly to endoscope, the light intensity is much more higher than 250W halogen light source. When connected to light cable, 250W halogen light source is more powerful, but EW-304 is still amazing, about 150W halogen light source comparable. * Attention: Although this test is persuasive when compare different light source, it is not rigorous enough. The result will differ a lot from different endoscope and environment. About The HD Camera A brand new video camera system made by endoscopeworld. Adopt latest SONY 1/3" CCD and DSP processor which provide 700TV line real time high definition images. The white balance can be easily adjusted and locked by pressing one key. 1 YEAR WARRANTY. Any product defection, we will send replacement directly, you don't need to send it back! Features: 1. High resolution: EVA-100 is equipped latest SONY 1/3" Super HAD CCD II and DSP, 700 TV line high definition superior image. Ultra high 0.01lux sensitivity. This is the highest resolution 1/3" CCD sensor till year 2014. 2. Easy white balance adjustment: By pressing the "AWB" key, white balance can be adjusted automatically and most important, it will be locked. So the color of image will not change when the camera is moved. Similar product only provide "auto white balance", the color will change if you move the camera. Tips: By changing the position of endoscope and press AWB key, the white balance can also be changed between "cold" and "warm" . For example, if you want to get the color "warmer", just move the endoscope to make more "cold" image fulfill the screen, then press AWB button. Get the endoscope back to original position and the screen color will be "warmer". 3. Water proof coupler, F=22mm, suitable for all kinds of rigid endoscopes. The coupler is standard C-mount, can be screwed off and changed. (we have other size of coupler, please contact us if you need to change) 4. Provide BNC&AV output, can be connected to monitor or television. 5. Full aluminum body to provide great comfort and prevent electromagnetic interference. Also water proof. 6. Portable, light weighted, easy to carry. Ideal for medical or industry examination, ENT or veterinarian surgery. Parameters (Camera): Video signal PAL/NTSC Image Sensor 1/3"Super HAD CCD II Total Pixels PAL: 1020H*596V NTSC: 1020H*508V TVL Resolution 700TVL Sensitivity 0.01LUX S/N Ratio > 50dB White Balance AUTO BLC ON AGC AUTO Electronic shutter ON Gamma 0.45/1.0 Lens Interface C Video out 1.0VP-P,75? Operating voltage 110V-240V Package: 1. EVA-100 portable camera with F22 coupler. 2. DC 12V adaptor (110V-240V universal) 3. AV cable 4. 2pcs BNC-AV convertors. Sample Images: In the following pictures , the camera is connected to a common home use television and shot by a DSLR camera. so the effect is not as good as human eyes. Actually, when connected to a professional high definition monitor, the effect is as great as those expensive famous brand camera, even better. Human hand through 4mm endoscope Human sinus through 4mm endoscope Human throat through 8mm endoscope Human hand through 10mm laparoscope (because the image depth limit, we focus the center and this lead the border not clear) Technical Parameters: Light source —high power LED Light illumination / temperature — 1,200,000 LuX / 5000K-5800K Connection type — Compatible with all rigid endoscope & most flexible endoscops & fiber optic cable Operating temperature — 0°C-58°C (32°F-100°F) Operating humidity — 0 to 95% rh Power supply — 68000mAh rechargeable battery (included), 18650 battery compatible (adaptor included) AC/DC adaptor: 220/110V input, 4.2V output USB cord: 2m long, pure copper Average battery life — 2 hours (at max power), 4 hours (at 70% power) Water proof: 100% Dimensions — diam. 36mm x 150mm Net weight - 280g (10oz) Case: 300*200*80(mm) Whole kit comes with a portable and strong aluminum case, everything get it's own place, you can also put 2 rigid endoscopes in the case (max 10mm diameter and 330mm long). Attention: the endoscopes shown in the picture are not included! Package: 1X LED cold light source 2X Sponge cover 5X Adaptors 1X Rechargeable battery 6800mAh 1X Charge dock base 1X Charger (110V-240V) 4.2V 2A 1X Aluminum case 1X HD camera 1X 12V power supply 1X AV cable 2X BNC AV convertors 1X carrying case SHIPPING & HANDING • We will offer combined shipping cost for multi-item purchase, please email to ask. • We shipped the package out within 48hours after payment received except weekend & holidays. • Insurance are included in the postage, if item got lost during shipping, we will send new. • We will put a mark of "gift" on the package. • It will take about 10-14 days to arrive US, Australia and most European countries. • Package can be tracked online. PAYMENT Method • PayPal is the best. • Bank transfer is also ok but it's not recommended because it will take much longer. RETURN POLICY • Return is acceptable in 7 days of receipt and please remember to contact us before arrange the return, DO NOT send item to the address on the package, we won't get it and you will not be refunded. • Return item must be in original conditions, include package. • For defective or wrong items, we will offer full refund, for any other reason,postage is non-refundable. The following statement are required by Ebay for USA buyer only. Acutally this is not medical use-only product, so there is not limiation. FDA REGULATION STATEMENT "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiological Health: http://www.fda.gov/cdrh/devadvice/ http://www.fda.gov/cdrh/industry/support/index.html Phone number: 800.638.2041 email: dsmica@cdrh.fda.gov Thank you for your cooperation. Distributor: Shenzhen Kuaikefeixun Trading Limited. 2#15D, zhongshan Garden, Luohu Shenzhen, China 518000 Endoscopeworld Right Reserved
