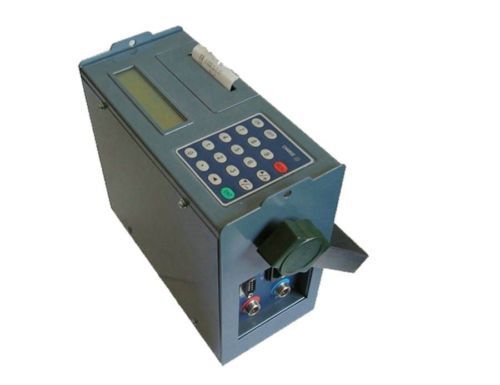

Portable TDS-100P M1sensor (DN50-700mm) Ultrasonic Flow Meter/Flowmeter New, US $677.09 – Picture 0

Portable TDS-100P M1sensor (DN50-700mm) Ultrasonic Flow Meter/Flowmeter New, US $677.09 – Picture 1

Portable Tds-100p M1sensor (dn50-700mm) Ultrasonic Flow Meter/flowmeter New

US $677.09

ShenZhen.GuangDong, China
Jan 29th

Open on mobile:
QR code

Portable TDS-100P M1sensor (DN50-700mm) Ultrasonic Flow Meter/Flowmeter With M1 sensor Fast shipping DHL FEDEX EMS New Portable Ultrasonic Flowmeter 1.Accuracy:Better than ±1.0% 2.Repeatability:0.2% 3.Velocity:±0~64m/S 4.Measurement Period:500mS 5.Measurement Principle:Transit-time measurement principle 6.Display:LCD with back light, 2x20 letters 7.Keypad:4x4+2 key membrane keypad with tactile feedback 8.Unit:English(US.) or metric 9.Output: 1 Channel isolated RS485 output 10.Pipe material:All metal, most of plastic, fiber glass, etc. Allow the pipe liner. 11.Pipe Size:1/2-240" (DN15mm-6000mm) 12.Liquid Types: Virtually all clean liquids 13.Liquid Temperature:-40~160 degree celsuis 14.Power: Ni-MH battery powered, can work continuously more than 24 hours. 15.Weight:Main unit: 2.5kg 16.Enclosure:Die-cast aluminum enclosure 17.Protective class: IP65 18.Enclosure Size: 210x200x100mm 19.Communication protocol: MODBUS, M-BUS,ect 20.Transducer: Clamp on type 21.Transducer cable: 5Mx2 standard. Product Description Better than 1% accuracy. * 0.2% of repeatability. * Positive/negative/net flow totaliser * 2 line LCD display. * Built-in printer. * RS-485 output. * Operate with clamp-on transducers. * Ni-MH Battery life for up to 24 hours continuous operation. High Accuracy measuring Linearity: Better than 0.5%, Repeatability: Better than 0.2%, Accuracy: Better than ± 1% Non-intrusive measuring Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance. Wide measuring range Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm Chinese & English menu Chinese & English display, easy to operate Large capacity battery Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation Built-in printer Built-in mini thermal printer with instant and timing print function Built-in data logger Uplink over 20 measuring data to computer or internet TDS-100P portable ultrasonic flowmeter Ultrasonic flow meter / energy meter professional manufacturer, design and manufacture of advanced technology, first in China to meet international standards, accuracy level. Performance, quality comparable to imported products, an absolute advantage price, in stock. All Chinese or English display, 2 x 20 dot matrix liquid crystal display, the working temperature of -20 ~ 60 °C 4 x 4 +2 touch-screen keyboard, standard RS232 interfaces Non-contact way of measuring flow rate, small size, easy to carry Supply 220VAC or Ni-MH rechargeable battery set, working 20 hours or more Smart printing features, standard EPSON24 out character dot matrix printer, to ensure the integrity of traffic data The size of the pipe for flow measurement Optional S, M, L-type magnetic sensor, an optional aperture by the DN15 ~ DN6000 Standard S-type sensors: application diameter: DN15 ~ DN100 Standard M-type sensors: application diameter: DN50 ~ DN1000 (standard) Standard M-type sensors: application diameter: DN300 ~ DN6000 Small ?-tube for diameter DN10, DN15, DN20, DN40 For pipe: steel, cast iron, cement pipe, copper pipe, PVC, aluminum pipe, glass, steel, etc. Measured medium is water, water, sewage, acid and alkali liquid, oils and other liquids to transfer sound Accuracy: better than ± 1% (domestic first to achieve this accuracy ultrasonic flow meter) Rechargeable smart charging, direct access to AC220V, adequate automatically stop, green light Power: 2W, NW 2.5KG With integrated aluminum protective case, you can use in harsh environments 1.Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrives. 2. Any Customs tax applied to this package should be covered by buyers. What in Package: 1. TDS-100P main machine 1 piece 2.M1 sensor 1 pair 3. Clamp Fixture(now it is nylon stretcher, not white chain) 1 pair 4. Tape Ruler 1 piece 5. Cable 5m*2 Payment 1. Payment methods accepted : Paypal only. 2. Payment must be received within 7 business days of auction closing. Shipping 1. We ship your orders within 1-2 business days after the payment received. 2. Item shipped via Singapore Post or HongKong Post , It takes about 7-14 business days (USA,CA,AU,UK).others country 10-20 business days(Brzil,India,RU),Exact delivery time depends on postal process. 3. If you do not receive your item(s) by 30 business days,Please feel free to contact us via ebay mail system , we will try our very best to resolve any problems with you Return Policy 1. Return is accepted within 14 days after the buyer's receiving the item. 2. If this item is defective upon receipt, customer has up to 14 days from date of receipt for exchange of a new one. 3. Unused/unopened merchandise will be fully credited. Other Policies We are not responsible for any custom duty or import tax. If you need we write low price on shipping bill, pls leave message when you make payment . All emails will be answered within 24 hours. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible, Suggest send eBay message to us, That is easy to find .
