Potassium Titanyl Phosphate (ktiopo3 Or Ktp) Crystals /ktp Crystal For Sale

US $40.00

Jinan, ???, China
Jan 30th

Open on mobile:
QR code

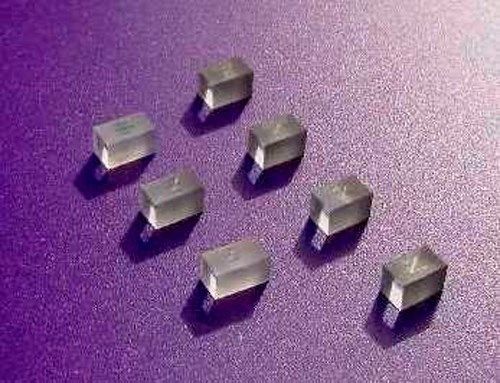

KTP Laser Crystal Your bid is for a new 6 x 6 x 3mm Potassium titanyl phosphate (KTiOPO4) or KTP crystal . KTP is a nonlinear optical material which is commonly used for frequency doubling diode pumped solid-state lasers such as Nd:YAG. This is a new crystal in factory packaging. Potassium Titanyl Phosphate (KTiOPO3 or KTP) crystals are widely used in both commercial and military lasers including laboratory and medical systems, range-finders, lidar, optical communication and industrial systems. our KTP is featured by 1. Large nonlinear optical coefficient 2.Wide angular bandwidth and small walk-off angle 3.Broad temperature and spectral bandwidth 4. High electro-optic coefficient and low dielectric constant 5.Large figure of merit 6.Nonhydroscopic, chemically and mechanically stable we offers 1.Strict quality control 2.large crystal size up to 20x20x40mm3 and maximum length of 60mm; 3.Quick delivery(2 weeks for polished only, 3 weeks for coated) 4.Unbeatable price and quantity discount 5.Technical support 6.AR-coating, mounting and re-polishing service Chemical and Structural Properties of KTP Crystal Crystal Structure Orthorhombic, Space group Pna21, Point group mm2. Lattice Parameter a=6.404 A, b=10.616 A, c=12.814 A Melting Point ~1172 °C Mohs Hardness 5 Density 3.01 g·cm-3 Thermal Conductivity 13 W·m-1·K-1 Thermal Expansion Coefficient ?x=11x10-6/K, ?y=9x10-6/K, ?z=0.6x10-6/K Optical and Nonlinear Optical Properties of KTP Crystal Transparency Range 350 nm ~ 4500 nm Thermo-optic Coefficient [K-1](@1064nm) dnx/dT=6.1x10-6 dny/dT=8.3x10-6 dnz/dT=14.5x10-6 Absorption Coefficient <0.1% cm-1 @1064nm <1% cm-1 @532nm For Type II SHG of a Nd:YAG laser @1064nm Temperature Acceptance: 24 °C·cm-1 Spectral Acceptance: 0.56 nm·cm-1 Angular Acceptance: 14.2 mrad·cm-1 (?); 55.3mrad·cm-1 (?) Walk-off Angle: 0.55° NLO Coefficients deff(II)?(d24-d15)sin2?sin2?-(d15sin2? + d24cos2?)sin? Non-vanished NLO Susceptibilities [pm/V] d31=6.5 d24=7.6 d32=5 pm/V d15=6.1 d33=13.7 Sellmeier Equations (? in ?m) nx2=3.0065+0.03901/(?2-0.04251)-0.01327?2 ny2=3.0333+0.04154/(? 2-0.04547)-0.01408?2 nz2=3.3134+0.05694/(? 2-0.05658)-0.01682?2 Applications for SHG and SFG of Nd: lasers KTP is the most commonly used material for frequency doubling of Nd:YAG and other Nd-doped lasers, particularly when the power density is at a low or medium level. To date, extra- and intra-cavity frequency doubled Nd:lasers using KTP have become a preferred pumping source for visible dye lasers and tunable Ti:Sapphire lasers as well as their amplifiers. They are also useful green sources for many research and industry applications. * More than 80% conversion efficiency and 700mJ green laser were obtained with a 900mJ injection-seeded Q-switch Nd:YAG lasers by using extra-cavity KTP. * 8W green laser was generated from a 15W LD pumped Nd:YVO4 with intra-cavity KTP. * 200mW green outputs are generated from 1 W LD pumped Nd:YVO4 lasers by using THATSHIGH's 2x2x5mm KTP and 3x3x1mm Nd:YVO4. * 2-5mw green outputs are generated from 180mw LD pumped Nd:YVO4 and KTP glued crystals. For more details, please refer to Glued Crystals. KTP is also being used for intracavity mixing of 0.81?m diode and 1.064?m Nd:YAG laser to generate blue light and intracavity SHG of Nd:YAG or Nd:YAP lasers at 1.3?m to produce red light. Applications for OPG, OPA and OPO As an efficient OPO crystal pumped by a Nd:laser and its second harmonics, KTP plays an important role for parametric sources for tunable outputs from visible (600nm) to mid-IR (4500nm), as shown in Fig. 3 and Fig. 4. Generally, KTP's OPOs provide stable and continuous pulse outputs (signal and idler) in fs, with 108 Hz repetition rate and a mW average power level. A KTP’s OPO that are pumped by a 1064nm Nd:YAG laser has generated as high as above 66% efficiency for degenerately converting to 2120nm. The novel developed application is the non-critical phase-matched(NCPM) KTP OPO/OPA pumped by the X-cut KTP crystal. As shown in Fig.5, for pumping wavelength range from 0.7?m to 1 ?m, the output can cover from 1.04?m to 1.45?m(signal) and from 2.15?m to 3.2?m(idler). More than 45% conversion efficiency was obtained with narrow output bandwidth and good beam quality. KTP Crystal Coating Service ? Dual Band AR-coating (DBAR) for SHG of 1064nm with following features: ? Low reflectance (R<0.15% @ 1064nm; R<0.5% @ 532nm) ? High damage threshold (>400MW/cm2 @ 1064nm & 532nm) ? Long durability ? Broad band coating for OPO applications. ? High reflectivity coating: HR @ 1064nm (R>99.8%) & HT @ 532nm (T>95%) ? Other coating types are available upon request. Specifications for KTP Crystal Dimension Tolerance (W±0.1mm) x(H±0.1mm) x(L+0.5/-0.1mm) (L>=2.5mm) (W±0.1mm) x(H±0.1mm) x(L+0.1/-0.1mm) (L<2.5mm) Angle Tolerance ??

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country/Region of Manufacture

China
