Precise Spindle120,000rpm Pkz-120 Fixed Centerline W/ Hf Controller And Cooler

US $14000

Union City, Georgia, United States
Jan 30th

Open on mobile:
QR code

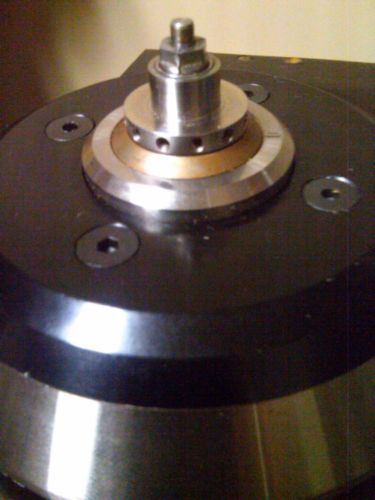

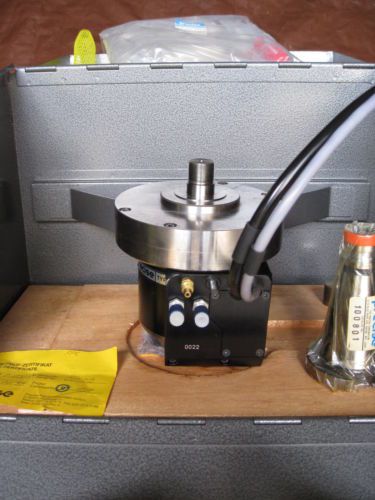

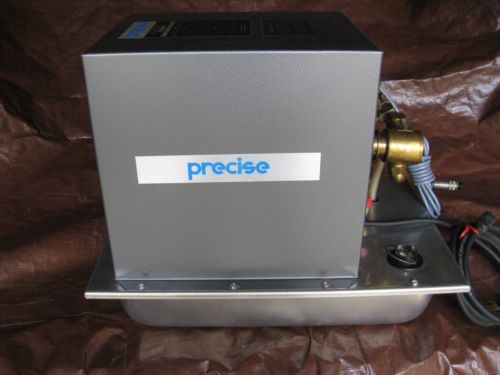

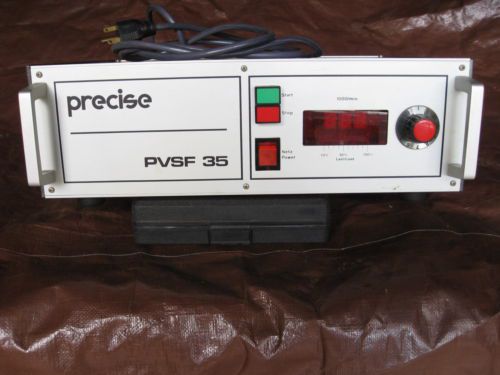

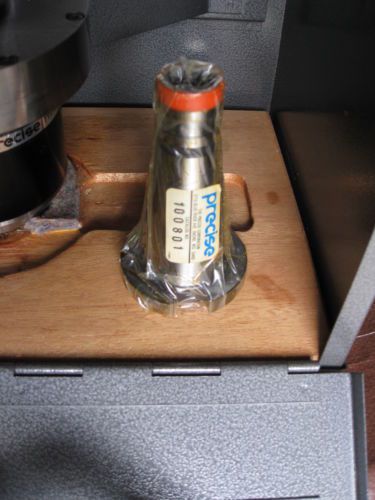

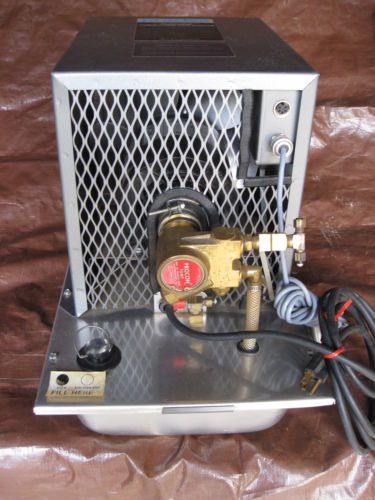

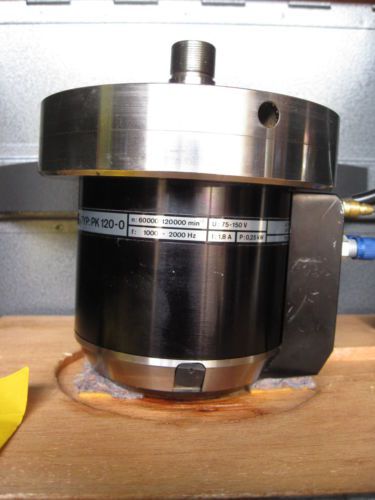

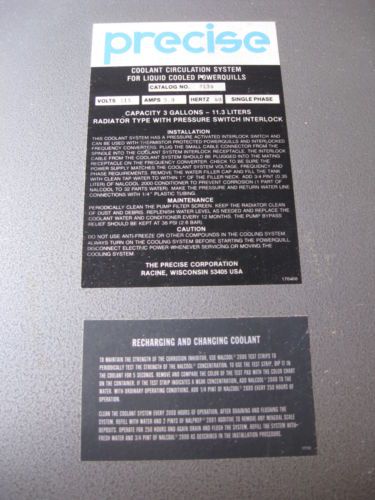

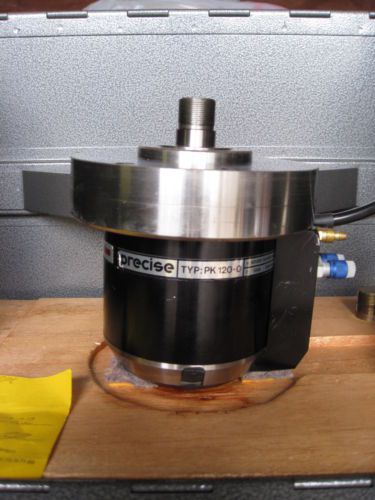

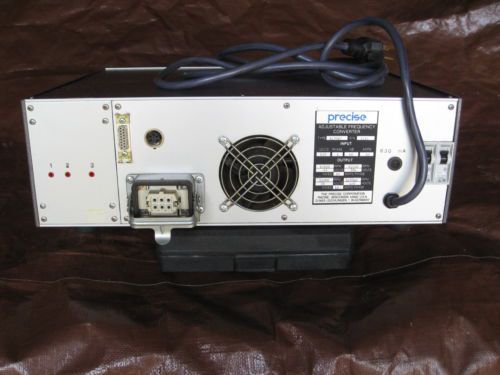

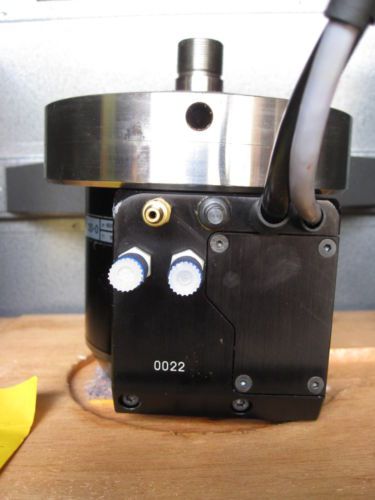

This is a package I purchased as a Precise distributor direct from Precise and sold to an end user. They couldn’t pay for package so I picked unit up. They only possessed a short period of time and I’m not sure that it was ever used. Some of the connecting items including ISO 40 M16 mounting arbor are still in factory sealed bags. Frequency converter and cooler still in original Precise shipping boxes. The original "sold" price was $13,775.00. Precise high frequency motorized spindles offer the high peripheral speeds required by small tools and wheels especially diamond and CBN superabrasives. They bring a unique combination of high productivity, close speed regulation under load, dependability and accuracy to production grinding operations. Operating and Maintenance instructions are included! The PKZ-120-0 self contained motorized 120,000rpm spindle mounts to the spindle of the mill or machining center to give them the high speeds required for small diameter carbide and superabrasive tools. PKZ 120-0 Fixed Centerline Spindle Only Specifications Operating Speed Range 60,000 - 120,000 RPM infinitely variable Power Range 0.11 kW (0.14hp) - 0.23 kW (0.31hp) continuous Frequency Range 1,000 - 2,000 Hz Voltage Range 75 - 150 V Spindle Drive/Control Type PVSF 35 Frequency Converter 230V, 50/60 Hz, 1 phase input power Tool Clamping SC 40 Collet, 0.125" diameter included Bearing 4 precision angular steel ball bearings Spindle Cooling Separate recirculating convection coolant system. Spindle Accuracy 0.0025 (0.0001") maximum T.I.R. at spindle taper Net Weight 6.5 kg (14.5 lbs.) without mounting arbor #177007 High Frequency Converter is a solid state, transistor type AC drive that provides speed control to the fixed center line spindle. High frequency electric spindles allow infinitely variable speed selection. They maintain the selected speed, even under load so feed rates are fast and cycle times are consistently short. They provide… Digital load meter and digital rpm display Electronic monitoring of spindle system interlock switches Electronic overload protection and input circuit breakers Closed-loop spindle tachometer monitoring for stable speed Multi-pin connector for CNC interface RPM dial and start/stop push buttons Fan cooled, 19” rack mount #176508 Coolant Circulation System designed to provide a recirculating supply of clean coolant water to the fixed centerline spindle. This unit will operate virtually maintenance free supplying coolant water at a constant temperature and pressure. Other features… Stainless steel tank Dependable positive displacement Sight glass for coolant levels
