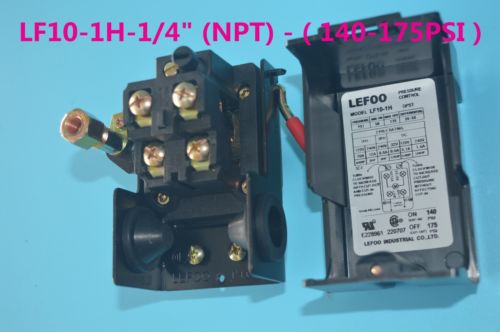

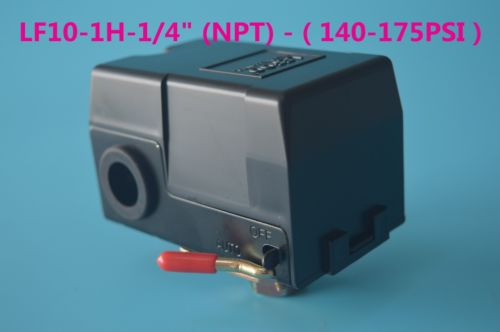

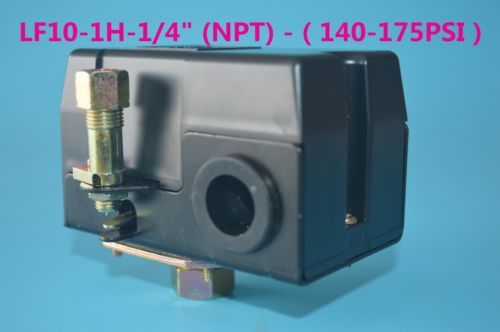

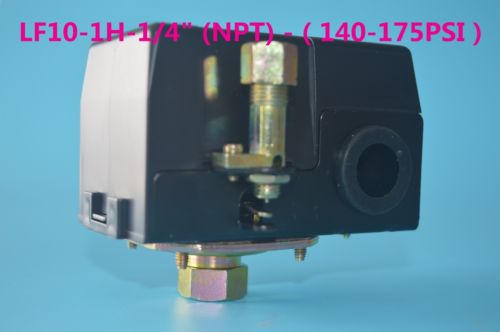

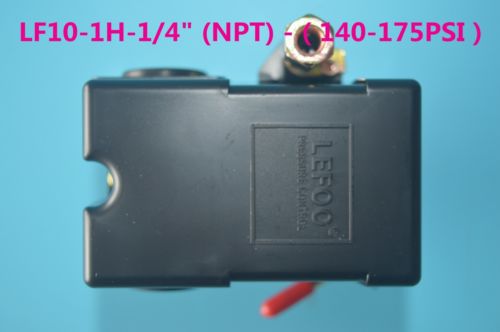

Pressure Control Switch Valve For Air Compressor 140-175 One H

US $19.50

anywhere, United States
Jun 9th

Open on mobile:
QR code

PRESSURE CONTROL SWITCH VALVE FOR AIR COMPRESSOR 140-175 One H Description THIS IS A BRAND NEW LeFOO PRESSURE SWITCH 140-175 SINGLE PORT CONNECTION. REPLACES FURNAS... SQUARE D... & MOST OTHER PRESSURE SWITCH MANUFACTURERS. THIS SWITCH COMES WITH AN UNLOADER AND ON/OFF LEVER. l PRESSURE: 140-175 l MAX PRESSURE: 190 PSI l MIN PRESSURE: 35 PSI l DIFFERENTIAL: 30-40 PSI l PORT: 1/4" (NPT) SINGLE PORT FEMALE l POLE: 2 POLE RATING l AMP RATING: Recommended 18 amp MAX, without the use of a magnetic starter. IMPORTANT TIPS FOR FINDING THE RIGHT PRESSURE SWITCH: 1: Amps.. Amps.. Amps, is the number 1 factor in matching the correct switch for your application. Horsepower ratings have been made suspect by retail compressor dealers over the years. Because of these scewed horsepower ratings, the only way you can find your motors TRUE power is by the Amp rating. The Amp rating does not lie. Bare in mind, Pressure switches do not care what voltage you have. Pressure switches will run from 12 volts through 600 Volts. Amps are the most important. If you ARE using a magnetic starter, any standard pressure switch will work fine with your application. The magnetic starter is taking 90+% of the load, and only milli-amps are needed to make the pressure switch function properly. If you ARE NOT using a magnetic starter, and have your motor wired directly through your pressure switch, make sure your electric motors amp rating is less than the Max amp current of the pressure switch. 2: What Pressure?? what pressure do you need the compressor to Cut in & Cut out at. Most pressure switches come 2 ways from the factory. 95-125 or 140-175. Bare in mind, all of the pressure switches we carry can be adjusted up or down. you can find out how much they can be adjusted by whats called the "Pressure Differential". All of our pressure switch listings show you the differential amount. 3: Do you require an unloader?? The unloader is the smaller 1/8" fitting that comes out of the side of the pressure switch. It normally connects to the check valve thats located in your tank through copper tubing. If your application does not require an unloader, you simply do not connect it, and the pressure switch will run and work fine. all of the pressure switches we carry have unloaders. again, you do not have to use the unloader if your application does not call for it. 4: What type of Connection Port do you need?? Almost all pressure switches come 1 of 2 ways. Either Single Port connection or Four Port Connection. The Four port connection allows you the ability of connecting other accessory items to your pressure switch, example.. gauge, safety valve, regulator, etc etc. You can plug the unused ports with a 1/4" plug. If you have no need to connect any additional accessory items to your pressure switch, a single port connection is all that you would need. 5: All of the Pressure switches we carry have On/Off levers. If you have another way of turning your compressor on/off , simply leave the pressure switch on at all times. inkfrogproseries Shipping Terms We do everything we can to ship your orders out as soon as possible Your satisfaction is our priority! Orders are typically shipped out either on the same business day or the following business day, assuming your orders have been completed and paid. You will be notified by email once your item has been shipped with tracking number. None of our products are drop shipped. International shipping : please contact us about it. Payment Methods We accept PayPal only via eBay Secure Check-Out. Payment is expected within 7 days of auction close. Unpaid Items will be forfeited per eBay . Immediate payment needs to be processed for items with Add to Cart option so that any promotional discounts can be applied to your order immediately. We give positive feedback immediately after your item is received. We would appreciate a positive feedback as much as you. If for any reason a problem should arise, please contact us prior to leaving feedback and we will gladly assist you. inkfrog terapeak inkFrog Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Lefoo
MPN	0700425107055
UPC	Does Not Apply
