Pricecnc Avhc10 Plasma Arc Voltage Torch Height Controller - Thc Avhc Price Cnc

US $1600

Ballinteer, Dublin, Ireland
Nov 3rd

Open on mobile:
QR code

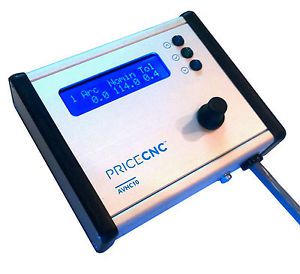

AVHC10 - CNC Plasma Arc Voltage Height Controller What does it do? The PriceCNC Arc Voltage Height Controller measures the voltage between the plasma torch and the material being cut, this is known as the ‘Arc Voltage’. As the distance between the torch and the material changes during a cut, the voltage also changes. By measuring changes in the Arc Voltage, the AVHC10 can determine if the torch needs to be raised or lowered to maintain an optimum arc length. The AVHC10 sends raise and lower signals through your breakout board inputs to Mach3 (or linuxCNC), which adjusts the Z-axis position. This height controller has 30 memory slots to store and load your favorite settings for different material thicknesses and types. What's in the Box? ~ The sleek and durable, aluminium cased, AVHC10 Unit with integrated Jog Wheel for easy operation. Comes with 5 meters of shielded cable, longer cables available on request. ~ The rugged isolation module, that puts a safe distance between your computer and any cables that carry high voltage pilot arc. Comes with 5 meters of shielded cable. Longer cables available on request. ~ 4mm Insulated Banana Plugs, for connecting raw arc voltage cables. ~ Connector for 50:1 voltage input. ~ Instruction Manual Click here to View ~ Rubber Feet and mounting screws for the AVHC10 ~ Connector to link Isolation Module to AVHC10 What else will I need? Not much if you have a new or existing Plasma CNC table running Mach 3, Linux CNC or similar. Other popular height controllers usually require many additional parts to complete installation but the PriceCNC AVHC10 is designed to minimize installation effort and usually requires no additional accessories or materials. How do I connect it to my CNC Table? What Settings can I control? You can save and load up to 30 different cutting preferences. All the settings are accessed by scrolling through this simple menu using the jog wheel. You can change these parameters: Nominal Arc Voltage Tolerance Arc Voltage Pierce Delay Arc OK range Min. Arc Fail Duration Sample Rate (reaction time) Display List and Description
