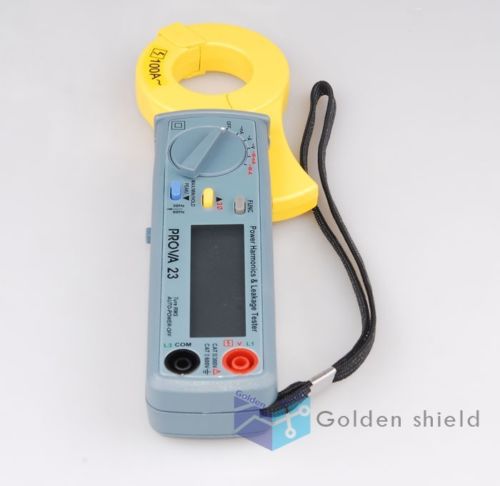

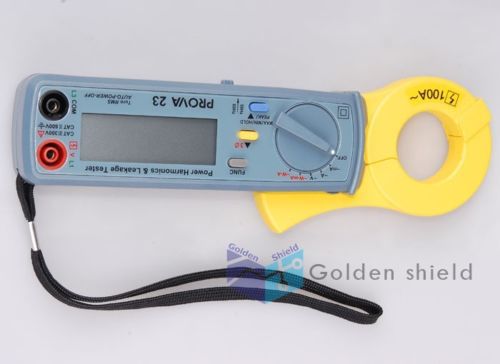

Prova-23 Digital Power Harmonics And Leakage Tester Meter V/a True Rms 100a

US $286.50

Shenzhen,China, China
Jan 29th

Open on mobile:
QR code

FEATURES: MODEL PROVA 19, 21, 23 True RMS value (V and A) Leakage Current Measurement at 10 ? A Resolution Harmonic Analysis (V and A) to the 99 th Order Better Understanding of High Frequency Harmonic Analysis (up to 5/6 KHz) Non-interrupted Harmonic Analysis Analysis of Total Harmonic Distortion (THD-F) Analysis of Crest Factor (C.F.) Fast Peak Function (33 ? s and 39 ? s) Programmable CT Ratio (1 to 250) Model 21(50A) and 23(100A) W, KW, H.P. VA, KVA, VAR, KVAR PF, Phase Angle ( ? ) Energy (mWH, WH, KWH) Analysis of Standby Power Consumption Balanced 3 ? Power Quality Balanced 3 ? Sequence SPECIFICATION: Please refer to users manual for more detailed and up-to-date description of specification. AC Watt (50 or 60 Hz, PF 0.5 to 1. CT = 1, Accuracy of Readings) Model 21 (0 to 50A), Model 23 (0 to 100A) Range Resolution Accuracy 21 (0 - 30A) Accuracy 23 (0 - 60A) Accuracy 21 (30 - 50A) Accuracy 23 (60 - 100A) 0.000 – 9.999 W 0.001 W ±1% ± 0.02 W ±2% of VA ± 5dgts 10.00 – 99.99 W 0.01 W ±1% ± 0.2 W ±2% of VA ± 5dgts 100.0 – 999.9 W 0.1 W ±1% ± 0.2 W ±2% of VA ± 5dgts 1.000 – 9.999 KW 0.001 KW ±1% ± 0.02 KW ±2% of VA ± 5dgts 10.00 – 99.99 KW 0.01 KW ±1% ± 0.2 KW ±2% of VA ± 5dgts 100.0 – 999.9 KW 0.1 KW ±1% ± 0.2 KW ±2% of VA ± 5dgts 1000 – 9999 KW 1 KW ±1% ± 2 KW ±2% of VA ± 5dgts AC Current (50 or 60 Hz, True RMS) Range (Model 19,21) Range (Model 23) Resolution Accuracy of Readings 0.30 – 60.00mA 0.30 – 60.00mA 0.01mA ±0.5% ± 5dgts 60.0 – 600.0mA 60.0 – 600.0mA 0.1mA ±0.5% ± 5dgts 0.030 – 3.000 A 0.030 – 9.999 A 0.001 A ±0.5% ± 5dgts 3.00 – 30.00 A 10.00 – 60.00 A 0.01 A ±0.5% ± 5dgts 30.00 – 50.00 A 6 0.00 – 99.99 A 0.01 A ±1.0% ± 5dgts AC Voltage (50 or 60 Hz, True RMS) Range Resolution Accuracy of R. Range Resolution Accuracy of R. 3V – 250V 0.1 V ±0.5% ± 5dgts 250V – 600V 0.1 V ±0.5% ± 5dgts Harmonics of AC Voltage in % and Magnitude (1 to 99th order) Range Resolution Accuracy in % Resolution Accuracy in Magnitude 50V – 600V 0.1 % ±0.5% 0.1 V ±0.5% ± 0.5V Harmonics of ACA in % Percentage and Magnitude (1 to 99th order) Range (Model 19, 21) Range (Model 23) Res. Accuracy (%) Res. Accuracy of R. 10.00 – 60.00mA 10.00 – 60.00mA 0.1 % ±0.5% 0.01mA ±0.5% ± 0.1mA 60.0 – 600.0mA 60.0 – 600.0mA 0.1 % ±0.5% 0.1mA ±0.5% ± 1mA 0.5 – 3.000 A 0.5 – 9.999 A 0.1 % ±0.5% 0.001 A ±0.5% ± 0.01 A 3.00 – 30.00 A 10.00 – 60.00 A 0.1 % ±0.5% 0.01 A ±0.5% ± 0.1 A 30.00 – 60.00 A 6 0.00 – 99.99 A 0.1 % ±1.0% 0.01 A ±1.0% ± 0.1 A Power Factor and Phase Angle (PF, ? ,Model 21 and 23) Range (PF) Resolution Accuracy Range (?) Resolution Accuracy 0.000 – 1.000 0.001 ± 1° -180° to 180° (0 ° to 360 ° ) 0.1° ± 1° Total Harmonic Distortion (THD-F, 1 to 99th order) Crest Factor (C.F., Accuracy of Readings) Range Resolution Accuracy of R. Range Resolution Accuracy of R. 0.0 – 999.9 % 0.1% ± 0.5% ± 5 digits 1.00 – 99.99 0.01 ± 5% ± 30 digits General Specification Conductor Size 30mm (approx.) Battery Type 1.5V SUM-3 x 2 Display 4+2+2 digits LCD Power Consumption 5mA (approx.) Auto-Power-Off 30 minutes No. Of Samples/Period 512 (V & A), 256 (W) LCD update rate 2 times / sec. Weight 200g (battery included) Operating Temperature -10 ° C to 50° C Operating Humidity < 85% relative Storage Temperature -20° C to 60° C Storage Humidity : < 75% relative Dimension 210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H) Accessories test leads, Carrying bag x 1, Users manual x 1 Option alligator clips Notice: The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support! Items are only shipped after PAYMENT is received Please check out your ADDRESS carefully when processing order If you haven't received the parcel in 25 days,please allow us 2-3 days for checking undelivered packages before we issue you refund We can't ship to African countries becasuse of shipping company policy. To USA UK Austrial 7-15 days by e-package, others 15-45 days. If you want to send DHL / UPS / TNT/ Fedex please contact me alone to change the price. Accepts payment with PayPal. Via paypal you can use all major credit cards. Items do not ship until payment is recieved in full. If the item is defective, please notify us within 7 days after the receipt of the item. The item shall be return in its original condition, in order to get it refunded or replaced We rely on our reputation and customer satisfaction to succeed,Therefore,your feedback is extremely important to us ,please leave good feedback to us if you get satisfied with our goods and service. We care about our valued customers,and will always try to help you. Please give us the opportunity to resolve any problem.We understand the concerns and frustrations you might have,and will try your best to resolve the issues. Please email us before leaving any negative feedback or opening any dispute on the site.We will help you to resolve the problem Attention! eBay Custom Tax Policy The policy of customs clearance may differ from each country. We are not responsible for any applicable customs charge, taxes and duties. Import duties and taxes are buyer's responsibility. If you have any inquiry for custom clearance, please leave a message. We will mark the price you want to declare after communication.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	PROVA
Country/Region of Manufacture	Taiwan
Model	PROVA-23
