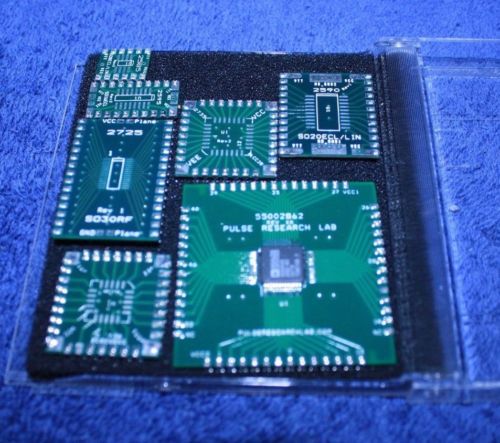

Pulse Research Labs "Gigadapter" multi adaptor set S08 -QFP64- IMPOSSIBLE TO GET, US $49.99 – Picture 0
Pulse Research Labs "Gigadapter" multi adaptor set S08 -QFP64- IMPOSSIBLE TO GET, US $49.99 – Picture 1
Pulse Research Labs "Gigadapter" multi adaptor set S08 -QFP64- IMPOSSIBLE TO GET, US $49.99 – Picture 0
Pulse Research Labs "Gigadapter" multi adaptor set S08 -QFP64- IMPOSSIBLE TO GET, US $49.99 – Picture 1

Pulse Research Labs "gigadapter" Multi Adaptor Set S08 -qfp64- Impossible To Get

US $49.99

  • Orlando, Florida, United States
  • Jan 29th
Open on mobile:
QR code
Taken from PRL Website: PRL "Gigadapters" are surface-mount to through-hole adapters (aka SMT adapters) that allow you to breadboard surface-mount devices for evaluation or prototyping. The Gigadapter line is suitable for everything from low-noise linear circuits to GHz digital and RF/microwave circuits. This patented, modular system is designed for very high performance, operating from DC to 3+ GHz. See the Application Notes for details and 'scope shots. This unique system provides maximum performance while providing the convenience and flexibility needed in a prototyping environment. Key components of the system are:  SMT footprint adapters--adapt SMT devices to through-hole footprints, with back-side pads for critical components. Available in SO, SSOP, LCC/PLCC, and our new QFP/TQFP configurations from 8 to 64 pins. Gigadapter motherboards--provide ground-plane and power busses plus I/O and power connector footprints. A unique 3-pads-per-pin configuration allows for easy interconnections Gigadapter accessories--Plug-in SIP modules for voltage regulation and I/O connectors, enclosures, power supplies, 50 ? coax interconnects, and pin sockets ensure a matched, 50 ? environment throughout your breadboard project.
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “Good Condition, no bent pins or anything.”
