Px4 Pixhawk V2.4.5 32bits Open Source Flight Controller With Neo-6m Gps E

US $162.30

Shenzhen, China
Jan 29th

Open on mobile:
QR code

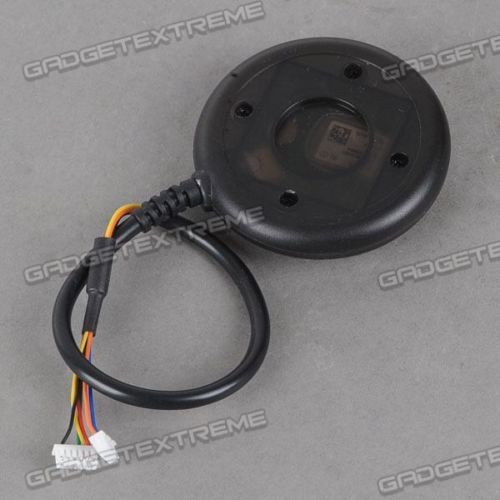

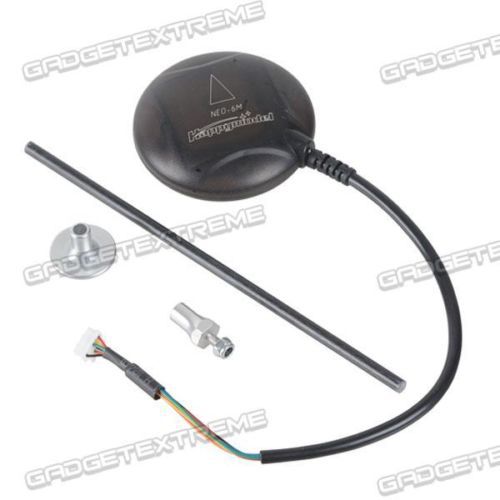

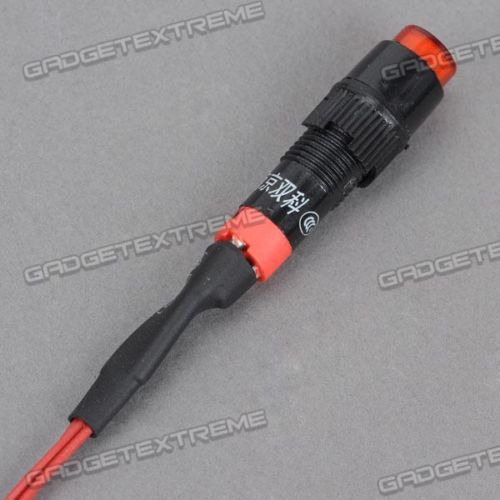

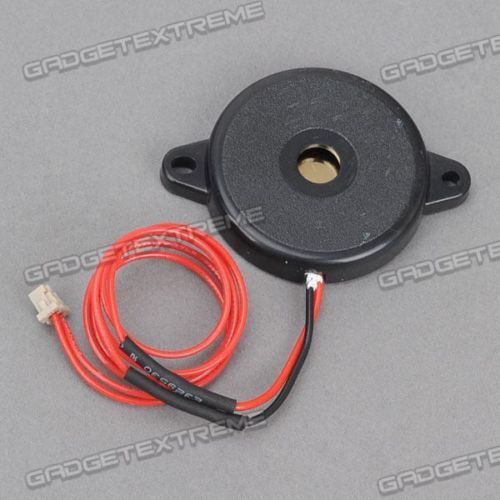

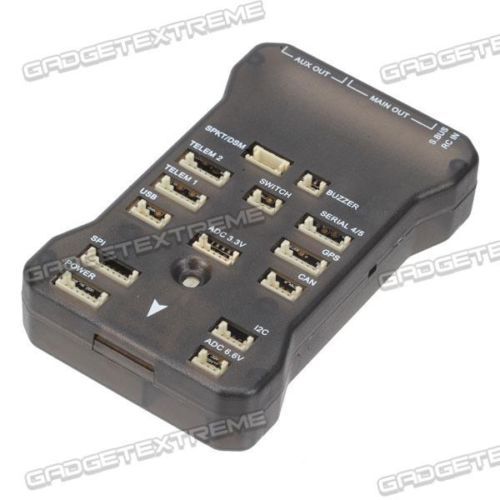

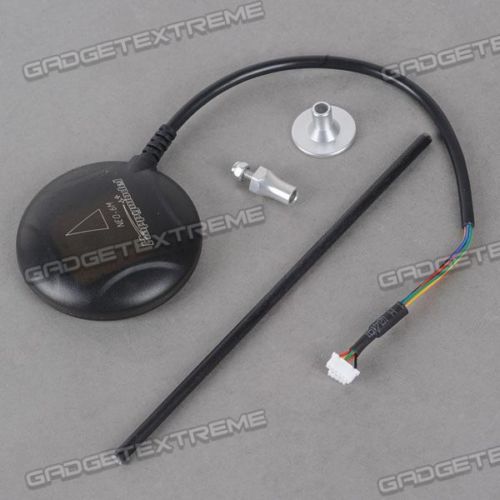

PX4 Pixhawk V2.4.5 32Bits Open Source Flight Controller with NEO-6M GPS for RC Airplanes Description: PX4 Pixhawk V2.4.5 32Bits Open Source Flight Controller with NEO-6M GPS for RC Airplanes Improvements on V2.4.3 - V2.4.5 PCB board - Redeveloped and optimized circuit without changing components - Could use Official MissionPlanner, ECLIPSE firmware upgrade Key Features: - 168 MHz / 252 MIPS Cortex-M4F - 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible) - Abundant connectivity options for additional peripherals (UART, I2C, CAN) - Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use) - Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use) - Redundant power supply inputs and automatic failover - External safety switch - Multicolor LED main visual indicator - High-power, multi-tone piezo audio indicator - microSD card for high-rate logging over extended periods of time Specifications: Processor - 32bit STM32F427 Cortex M4 core with FPU - 168 MHz - 256 KB RAM - 2 MB Flash - 32 bit STM32F103 failsafe co-processor Sensors - ST Micro L3GD20H 16 bit gyroscope - ST Micro LSM303D 14 bit accelerometer / magnetometer - MEAS MS5611 barometer Interfaces - 5x UART (serial ports), one high-power capable, 2x with HW flow control - 2x CAN (one with internal 3.3V transceiver, one on expansion connector) - Spektrum DSM / DSM2 / DSM-XA® Satellite compatible input - Futaba S.BUSA® compatible input and output - PPM sum signal input - RSSI (PWM or voltage) input - I2C - SPI - 3.3 and 6.6V ADC inputs - Internal microUSB port and external microUSB port extension Power System and Protection - Ideal diode controller with automatic failover - Servo rail high-power (max. 10V) and high-current (10A+) ready - All peripheral outputs over-current protected, all inputs ESD protected Package Included: - PX4 V2.4.5 Flight board - Ublox NEO-6M GPS - Teflon safety switch - Buzzer - Original cover - External LED Shipping & Payment: Here Offer 100% Satifiation Service,Inlucde re-send item&refund payment; All items here offer 1 year warranty It is not my Duty for Custom Tax All items will be shipped via int'l air mail( no tracking number for items under $65), the time normally takes 7-15 business days. may be later arrivel if the item is checked by custom; We only accept paypal payment.
