Quick Release Pin - Push Pull - 5315-00-485-1978 - Lot Of 10 - L1813

US $120

Danville, Virginia, United States
Jan 29th

Open on mobile:
QR code

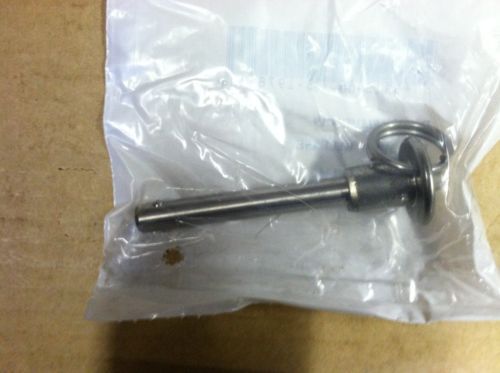

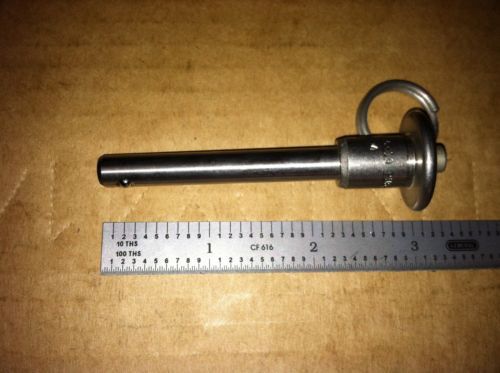

Quick Release Pin - Push Pull - 5315-00-485-1978 - Lot of 10 New. Unopened. See photo for details. Great for aviation, automotive racing, and any application where quick removal/assembly of a part is required. Bulk orders welcome NSN info: 5315-00-485-1978 (NAS1335C3C19) Data 5315-00-485-1978 (5315004851978) NSN Information NSN FSC NIIN Item Name INC 5315-00-485-1978 5315 004851978 Pin, Quick Release 08323 5315-00-485-1978 Features MRC Parameter Characteristics AAZE Shank Diameter 0.3095 inches minimum and 0.3120 inches maximum ABQG Button Handle Diameter 1.200 inches nominal AFLW Actuation Method Push button ANEE Grip Length 1.900 inches minimum and 1.920 inches maximum APCM Actuation Type PUSH CQFM Hardness Rating 36.0 rockwell C minimum shank and 40.0 rockwell C maximum shank CRQD Shoulder TO Head END Distance 1.550 inches nominal CTDJ PIN Attachment Type Hook or ring CTXT Detent TO Tapered END Distance 0.400 inches nominal MATT Material Steel comp 4130 shank or steel comp 4130 shank or steel comp 4135 shank MATT Material Steel comp 4130 spindle MDCL Material Document AND Classification MIL-S-6758 mil spec 1ST material response shank or MIL-T-6736 mil spec 1ST material response shank or MIL-T-6735 mil spec 2ND material response shank MDCL Material Document AND Classification MIL-S-6758 mil spec single material response spindle SFTT Surface Treatment Cadmium shank and chromate shank SFTT Surface Treatment Cadmium spindle and chromate spindle STDC Surface Treatment Document AND Classification QQ-P-416, ty 2, cl 2 fed spec single treatment response shank STDC Surface Treatment Document AND Classification QQ-P-416, ty 2, cl 2 fed spec single treatment response spindle STYL Style Designator Button ZZZK Specification/Standard Data 80205-NAS1335 professional/industrial association standard 5315-00-485-1978 Manufacturing Part Numbers (SKUs) MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC NAS1335C3C19 80205 A 2 2 3 4 SE 5315-00-485-1978 Manufacturer MFG SKU CAGE Manufacturer Type Status Role NAS1335C3C19 80205 National Aerospace Standards A A 5315-00-485-1978 FLIS Identification PMIC ADPE CODE CRITL CODE DEMIL CODE DEMIL INTG NIIN ASGMT ESD HMIC ENAC SCHEDULE_B INC U X A 1 04-JUN-69 N 08323 5315-00-485-1978 FLIS Management MOE REC REP CODE MGMT CTL USC PHRASE CODE PHRASE STATEMENT DN 9B----- N DS N ------- I DF N SF9SX-N F 5315-00-485-1978 Demilitarization Codes & Management DML PMIC HMIC ADPEC Criticality ESDC A N X 5315-00-485-1978 Miscellaneous Management MOE (S_A) SOS AAC QUP UI SLC CIIC RC MCC SVC DF SMS Z 1 EA 0 U SF9SX-N D DF SMS Z 1 EA 0 U SF9SX-N F DF SMS Z 1 EA 0 U SF9SX-N N DN SMS Z 1 EA 0 U 9B----- D DN SMS Z 1 EA 0 U 9B----- F DN SMS Z 1 EA 0 U 9B----- N DS SMS Z 1 EA 0 U ------- D DS SMS Z 1 EA 0 U ------- F DS SMS Z 1 EA 0 U ------- N 5315-00-485-1978 Component / End Item WPN SYS ID WPN SYS SVC WEAPON SYSTEM 11 F Aircraft, Galaxy C-5 5315-00-485-1978 Management Control Air Force FUND BUDGET MMAC PVC SF 9 SX N 5315-00-485-1978 Management Control Navy COG SMIC IRRC SMCC 9B 5315-00-485-1978 Freight NMFC NMFC SUB UFC HMC LTL LCL WCC TCC SHC ADC ACC ASH NMF DESC 095190 J 49790 Q 713 Z 9 A B Z

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	US Military
Material	Steel 4130
Model	5315-00-485-1978
Country of Manufacture	United States
MPN	NAS1335C3C19
