Rab Aled3t150 Area Light

US $500.00

Bakersfield, California, United States
Jan 30th

Open on mobile:
QR code

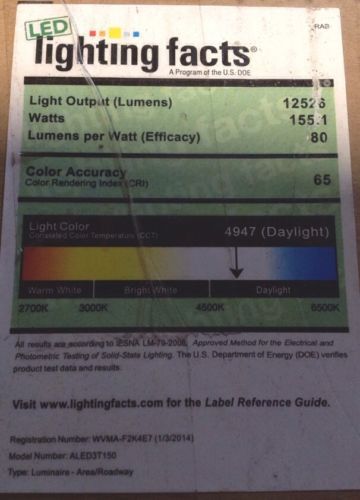

LED Info Watts: Color Temp: Color Accuracy: L70 Lifespan: LM79 Lumens: Efficacy: 150W 5000K (Cool) 65 CRI 100,000 12,526 81 LPW Driver Info Type: 120V: 208V: 240V: 277V: Input Watts: Efficiency: Constant Current 1.31A 0.80A 0.69A 0.60A 155W 97% Dimensions Weight: 30.4 lbs EZ Layout Technical Specifications UL Listing: Suitable for wet locations. Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations. IES Classification: The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area. Effective Projected Area: EPA = 0.75 LEDs: Multi-chip, high-output, long-life LEDs Drivers: Two Drivers, Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99% THD: 6% at 120V, 11.3% at 277V Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures. Surge Protection: 4kV Cold Weather Starting: The minimum starting temperature is -40°F/-40°C. Thermal Management: Superior thermal management with external Air-Flow fins. Housing: Die-cast aluminum housing, lens frame and mounting arm. Mounting: Heavy-duty mounting arm with "O" ring seal & stainless steel screws Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color. Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period. Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011. Reflector: Specular vacuum-metallized polycarbonate Gaskets: High-temperature silicone gaskets Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals. Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals. IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label. DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Replacement: The ALED150 replaces 400W Metal Halide Area Lights. California Title 24: See ALED3T150/D10, ALED3T150/BL, ALED3T150/PCS, ALED3T150/PCS2, or ALED3T150/PCT for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page. Dark Sky Approved: The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire. For use on LEED Buildings: IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction. Warranty: RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	ALED3T150
Brand	RAB
Country/Region of Manufacture	United States
