Radeco, Inc Portable Air Flow Sampler

US $4600

  • Maple Park, Illinois, United States
  • Jan 30th

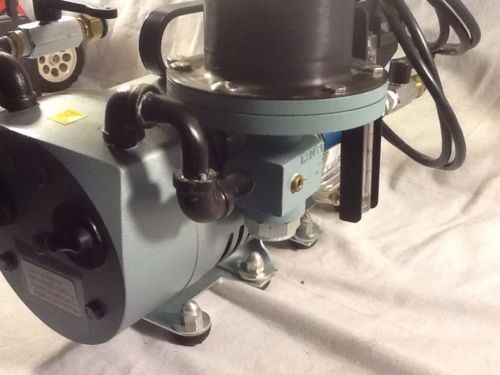

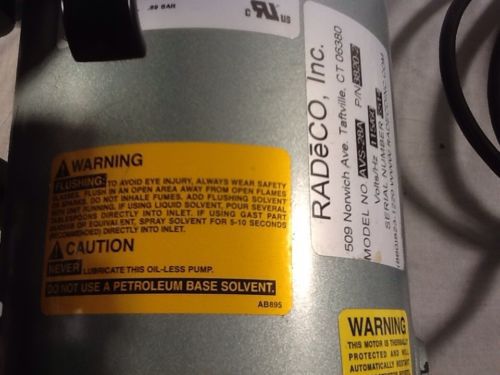

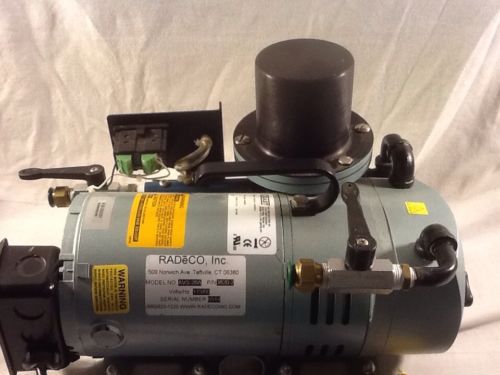

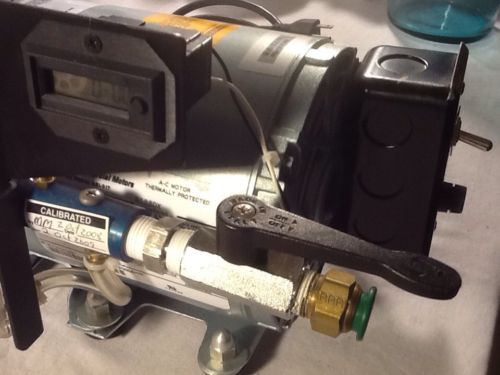

This is like new does need recalibration before use as it would even if new. Constant airflow maintained with ?P across the filter up to 17" Hg (Flow Rate Dependent) Balanced, Easy to carry system Flow rate indicated on rotometer, CFM or LPM Rated for continuous duty Low noise level Minimal maintenance Optional elapsed time indicator All units individually calibrated and traceable to NIST The Model AVS-28A Portable Constant Flow Air Sampler is a continuous duty, constant flow device. It can be used with filters and cartridges in the collection of airborne contaminates, or as a regulated, positive displacement vacuum supply for continuous air monitors and stack sampling systems. The ability of the AVS-28A to maintain a preset sample flow rate is controlled by the unique side-mounted regulator valve. The RADeCO regulator valve is not a bypass design, and therefore the exhaust contains only sampled air. The AVS-28A has the superior ability to compensate for added P across sampling media. Air Flow Rate: Adjustable from 0.5 to 3.5 CFM (15 to 100 LPM). Air Flow Regulation: +5% of set air flow rate up to maximum capability of pump. Dimensions/Weight: 12” Long x 14” Wide 9” High, (30.5 cm x 35.6 cm x 22.9 cm), 38 lbs (17.27 kg). Power Requirement/Cable: 115V, 60Hz, 4.6 Amps; 230V, 50hz, 2.3 Amps. Three wire, (6) six feet (10) Ten Amp rating; British and European available. Air Flow Indicator: Venturi mounted rotometer. Air Mover/Motor: Self-adjusting carbon vane type. Pump is designed for continuous operation at 26” Hg vacuum. Rated at 1/4 horsepower with thermal overload protection. If you have any questions please ask. happy Bidding.
