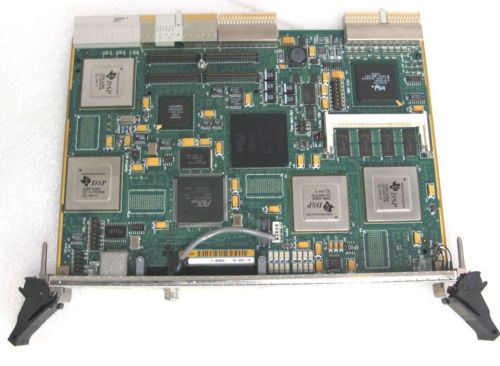

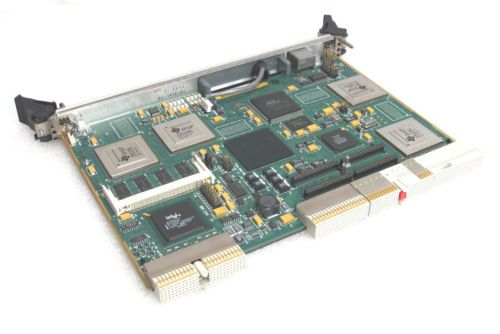

RADISYS SP-6040 COMPACTPCI, US $495.00 – Picture 0

RADISYS SP-6040 COMPACTPCI, US $495.00 – Picture 1

RADISYS SP-6040 COMPACTPCI, US $495.00 – Picture 2

Radisys Sp-6040 Compactpci

US $495.00

Morgan Hill, California, United States
Mar 4th

Open on mobile:
QR code

RADISYS SP-6040 COMPACTPCI A member of the SPIRIT-6000 family, the SP6040 includes the following features: • Four TMS320C6201 Digital Signal Processors (C6201), that provide up to 1600 MIPS. • A hot-swappable, 32-bit CompactPCI interface on the J1 CompactPCI connector1. • A DEC/Intel 21554 PCI-PCI bridge. The 21554 PCI-PCI Bridge serves as the SP6040’s CompactPCI interface and provides address translation between the CompactPCI host and on-board PCI devices. • An Intel i960RD that serves as I/O processor (IOP). The i960RD (66 MHz core) serves as the IOP, with 33MHz local and PCI bus interfaces. • A hot-swappable, ECTF H.110 compliant, TDM bus interface on the J4 CompactPCI connector2. • H.110 TDM Bus Interface and Time Slot Interchanger (Lucent T8105 TDM Switch). This device provides high-performance routing of telecom data between the DSP, the option module connector, and the H.110 TDM bus. • An audio monitor, accessible via an on-board header. You can configure this resource to connect either directly to a C6201 serial port or to the H.110 TDM Switch, to allow drop/insert capability for any selected TDM slot. • A PMC socket3, with additional pin-outs (via PMC J13/J14) that support optional RadiSys Dual/Quad E1/T1/LAN-HDLC or PMC-4(2)T1/E1 LAN option modules. The SP6040 is available in these configurations: Mechanical information The SP6040 occupies a single 6U CompactPCI slot. 6U boards are 233.35 mm (6U) x 160.0 mm (9.19" x 6.29"). The sum of the component height and warpage is less than or equal to 13.71 mm (0.54") from the component side of an ideal (no warpage) board, and 1.52 mm (0.060") from the solder side. The SP6040 occupies a single CompactPCI option slot with or without a compliant PCI Mezzanine card mounted on the module. The exact mechanical requirements are specified in the CompactPCI Specification. 1. CompactPCI Specification 2. ECTF H.110, Revision 1.0 3. IEEE P1386.1/Draft 2.0 Draft Standard Physical and Environmental Layers for PCI Mezzanine Cards: PMC, IEEE P1386/Draft 2.0, Draft Standards for a Common Mezzanine Card Family: CMC Table 1-1. SP6040 product configurations Product code Options Description SPIRIT-6040 Default configuration Standard product for the WARRANTY All of our items sold in working condition have a minimum 14 day warranty, unless otherwise stated in the listing. Please refer to the item you are purchasing, some have exchange only and some are sold for “ parts only” and some have no warranty at all. SHIPPING We will use most all shipping methods, and will refund the shipping difference if it is calculated too high on Ebay. Not all shipping options are shown available when purchasing an item on Ebay. However, if you send us an email we will change it, and if possible make arrangements for the item to be shipped your preferred way. EXPEDITED SHIPPING IS AVAILABLE Please allow 1-2 additional business days for packaging large items, or items that need to be sent freight. Please note: For orders placed before 4:00 p.m. (PST) we will try to ship the same day depending on overall order volumes; orders placed after 4:00 p.m. will be shipped the next business day. Orders placed after 4:00 p.m. (PST) on Friday will not be shipped out until the following Monday. Most all items may be expedited and we will let you know the addition fee. FedEx and UPS labels may be prepaid by you, and emailed with approval. PAYMENTS We Gladly Accept Payments via PayPal. We also accept Wire Transfers and Cashier’s Checks. Checks must clear prior to item being shipped. P/O are accepted and our company invoices available (fax) 408-778-9420 We do have a company website where items maybe purchased as well. Sales Tax: We are required by law to collect 7.5% sales tax in California and 8.625% Santa Clara County RETURNS We want to make sure you're 100% satisfied with your purchase! If, by chance, a product needs to be returned to us it must be in the condition you received it in, with all warranty stickers in place and in the original box and/or packaging. A refund for returns will be made promptly upon receipt of the item. Shipping and processing charges are non-refundable. We do not accept COD?s and any item sent "Return To Sender" is not usually received. You must contact us within 14 days of receiving the item for returns. CONTACT US If you have a question, you can call us at 408-778-2001. Our Customer Service Representatives are available: MONDAY – FRIDAY 8:30AM - 5PM (California or Pacific Time Zone) WE APPRECIATE YOU AS A CUSTOMER, AND WE THANK YOU FOR SHOPPING WITH US. WE LOOK FORWARD TO PROVIDING YOU WITH OUTSTANDING SERVICE. THANK YOU FOR PURCHASE & TAKING THE TIME TO LEAVE FEEDBACK
