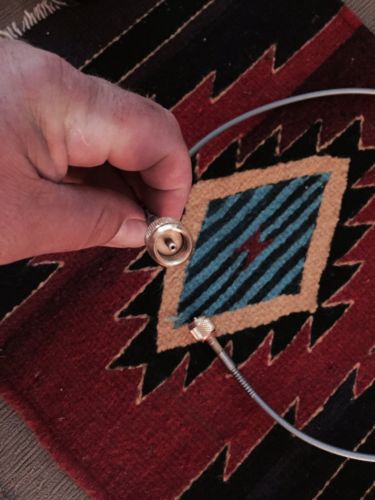

Ralston Qsqshos20ft Quick-test Hose (20 Ft), S.s. Hose Ends

US $101.00

  • Waynesboro, Tennessee, United States
  • Jun 9th
Open on mobile:
QR code
Low volume reduces the pumping effort or compressed gas usage in pressure calibration No thread sealant required – connect adapters to without wrenches, thread sealant or thread tape Bubble tight connections to 6900 psi (475 bar) with no moving parts No moving parts reduces maintenance to almost zero Hose is hard to break and very flexible Adapt from hose to virtually any device under test with only one connection Silver color dramatically reduces the effect that changing temperature has on pressure stability A strain-relief on each hose end reduces wear and dramatically increases hose life Made in U.S.A. Length 20 ft Pressure Range 0 to 6900 psi (0 to 475 bar) Burst Pressure 27000 psi (1,860 bar) End 1 Female Quick-test XT, stainless steel End 2 Female Quick-test XT, stainless steel Temperature range -40 to 140 °F (-40 to 60 °C) Outer Diameter 0.2 in (5.1 mm) Inner Diameter 0.08 in (2.0 mm) Minimum Bend Radius 1 in (25.4 mm) Construction Polyamide core tube, High tensile synthetic fiber and polyamide outer cover End materials Stainless Steel Fluid Media Water, Petroleum Based Oil, Air, Inert Gas
