Red 0.1-60mhz 20mhz ~ 2.4ghz Rf Singal Frequency Counter Cymometer Tester Mete

US $13.66

??, ???, China
Mar 5th

Open on mobile:
QR code

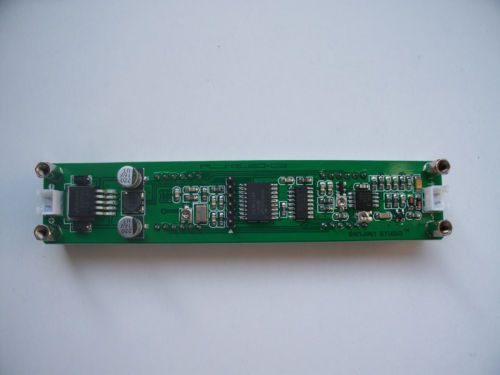

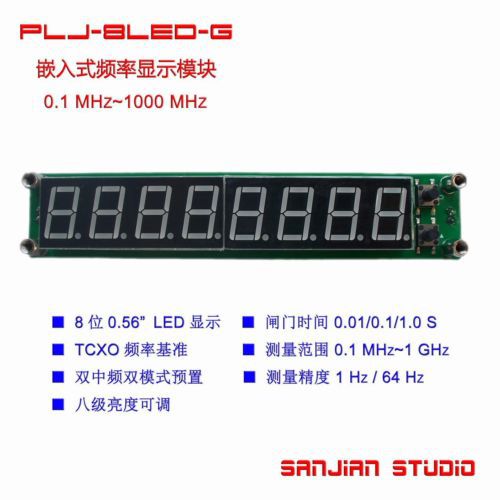

Red 0.1-60MHz 20MHz ~ 2.4GHz RF Singal Frequency Counter Cymometer Tester Meter Features: With Microchip's PIC16F648A, 2.4 GHz frequency meter. Using temperature-compensated voltage controlled crystal oscillator (2.5 ppm VC-TCXO). Unique gate control and precise time algorithm (non-timed interrupt). Gate (display refresh) time 0.01 seconds / 0.1 seconds / 1.0 seconds, real-time display frequency value. Single-ended input design, three-channel frequency measurement (low channel / high channel / Auto Channel). Dual frequency design, value and IF / down mode can be preset separately. Using eight 0.56 inches high brightness digital display, eight adjustable brightness. Circuit is simple and reasonable structure, two-button control, simple operation. The settings are automatically saved, boot directly call. Descriptions: 1 Gate time 0.01 ? 0.10 ? 1.0 ? 2 Measurement channels (channels are low impedance) low channel Measuring range: 0.1 MHz ~ 60 MHz Accuracy: ± 100Hz (0.01 1s gate time) ± 10Hz (0.1 seconds gate) ± 1Hz (1.0 seconds when the gate) Low channel sensitivity: 0.1 MHz ~ 10 MHz: better than 60mVPP 10 MHz ~ 60 MHz: better than 60mVPP 60 MHz ~ 75 MHz: Not tested high channel (divided by 64) Measuring range: 20 MHz ~ 2.4 GHz Accuracy: ± 6400Hz (0.01 seconds gate) ± 640Hz (0.1 1s gate time) ± 64Hz (1.0 1s gate time) High channel sensitivity: 20 MHz ~ 30 MHz: better than 100mVPP 30 MHz ~ 60 MHz: better than 50mVPP 60 MHz ~ 2.4GHz: not tested Auto Channel Automatically selected according to the input signal frequency high or low channel channel, identifying the frequency of 60 MHz. Such as when the input signal amplitude is greater than 60 MHz shortage can not automatically select high channel, the channel should manually select high frequency measurement. 3,IF settings Independent double-IF design, adjust the minimum frequency step of 100 Hz, frequency range 0 ~ 99.9999 MHz, can be set to increase or decrease the IF frequency mode. 4. Frequency reference Using 5032 package 13.000MHz Warming voltage controlled crystal oscillator (VC-TCXO), frequency stability of ± 2.5 ppm. 5. Operating voltage DC Input: DC 9V ~ 15V (with reverse polarity protection) 6 Current Maximum 160 mA (test conditions: (1) DC12V power supply; (2) red LED; (3) eight brightness) 7 Eight LED display, the highest display eight digits. 8 Eight LED brightness is adjustable, factory set to maximum brightness. 9 Physical Dimensions,Length x width x height: 125.5 mm x 25.5 mm x 21.5 mm 10. Component quality 46 g (NW) 11. Onboard Interface DC IN (Power Interface): HX2.54-2P socket RF IN (signal input): HX2.54-2P socket ICSP (programming interface): 2.54-6P Pin Package included : 1 x Red 0.1-60MHz 20MHz ~ 2.4GHz RF Singal Frequency Counter Cymometer Tester Meter Shipping & Handling Policy · Generally, delivery time is 10-20 business days to USA, United Kingdom, Australia and 15-30 days to most other countries. · All orders will be processed within 48 hours from the date of payment .The delivery confirmation will be sent ebay message when your order is processed · We will make shipment according to the address you put on eBay, if you want us to ship items to a different address please contact us before making the payment. International Buyers Note: 1) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. 2) Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. Payment Policy We accept Paypal only. Returns Policy · We always take customer service seriously and want you to be 100% happy with your shopping experience here. If you are unsatisfied with our item or service, then please follow the good eBay practice to contact us before leaving any feedback and return it within 14 days for a replacement or money back. · Please contact me before you return it. · Buyer is responsible for the shipping cost of return postage. · Shipping and insurance costs will not be refunded. · We are committed to resolve all issues in a friendly and satisfactory manner. Contact us: If you have any problems, we are very glad to help you. We are handling large volume emails every day. Please allow us to reply your email within 24hrs Feedback: · Dear buyers, we appreciate your business, if you are satisfied with our service, please leave us a positive feedback . When you rate the shipping time part please take international transit into consideration. · Your recognition will make us more confident to develop business and serve you better. · Our goal is to make sure you are a happy buyer and pleasant shopping with us. · Please email us before leaving any 1 or 2 ratings, negative feedback or open any dispute. · We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem. thank you !
