Renishaw Cmm Ph10mq And Phc10-3 Controller All New In Boxes W Factory Warranty

US $11,500.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

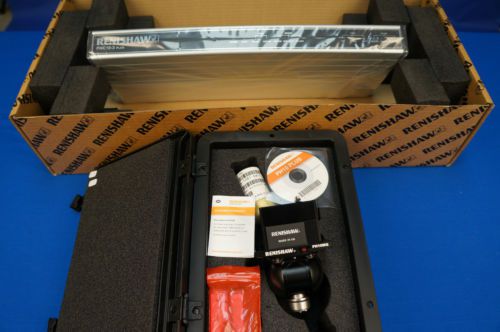

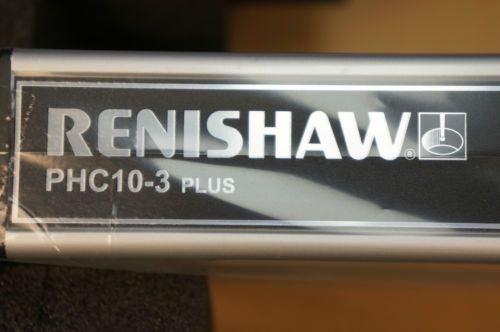

Powered by Frooition Pro Shop Search Renishaw CMM PH10MQ and PHC10-3 Controller All New in Boxes w Factory Warranty Click here to view full size. Full Size Image Click to close full size. Item Description All new in boxes with full factory warranty Renishaw PH10MQ motorized probe head and Renishaw PHC10-3 Probe head controller. (The PHC10-3 has now replaced the PHC10-2) PH10T or PH10M can be shipped for the same price. RS 232 and USB communication for PHC10-3 controller. All items will be ordered from the factory for you which is why we have a 5 day handling time. If your application requires custom cables please contact us for a buy it now package price. We also offer partial refunds for probing that you have replaced with this system. All components in this sale are new and in unopened boxes with full warranty. If you were to purchase these items at full retail price you would pay $25756.00 The range comprises three PH10 models, each of which can carry a range of probes and extensions and can be orientated in 720 repeatable positions, giving access to the most difficult-to-reach workpiece features. All three variants of the new PH10 heads are now supplied with a revised repeatability specification, down from 0.5 µm (2?) to just 0.4 µm (2?) (specified at a distance of 62 mm), giving users improved positioning at the stylus tip. The new specification heads are physically differentiated by a new ‘aqua blast’ finish which gives a modern, matt black appearance. PH10M The PH10M can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification. PH10M specification Length 117 mm Width 62 mm Weight 645 g Probe mounting Autojoint (multiwire) Head mounting PH10M shank to suit CMM Suitable controller PHC10-2 Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62 mm Total no. of positions 720 Max recommended drive torque 0.45 Nm Maximum extension bar 300 mm (11.8 in) using PAA3 extension PH10MQ The PH10MQ is a variant of the PH10M that allows the motorised head to be attached directly to the quill with the B axis of the head inside the quill itself. This option provides a neater and shorter probe mount, with only the A axis protruding from the quill. PH10MQ specification Length 73 mm Width 80 mm Weight 730 g Probe mounting Autojoint (multiwire) Head mounting Direct to quill Suitable controller PHC10-2 Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62 mm Total no. of positions 720 Max recommended drive torque 0.45 Nm Maximum extension bar 300 mm (11.8 in) using PAA3 extension PH10T The PH10T is similar to the PH10M, except that it features an M8 thread probe mount in place of the autojoint. All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T is fully compatible with all of Renishaw's stylus and module change systems. PH10T specification Length 103 mm Width 62 mm Weight 645 g Probe mounting M8 thread (2 wire) Head mounting Shank to suit CMM Suitable controller PHC10-2 Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 48 mm (equivalent to a TP2 and PS1R stylus) Total no. of positions 720 Max recommended drive torque 0.45 Nm Maximum extension bar 300 mm (11.8 in) using PEL4 extension PHC10-3 head controller PHC10-3 head controller receives instructions from the CMM control. The PHC10-3 controls all head functions and reports system status to the CMM: Drives PH10 (PH10T, PH10M or PH10MQ) to position - sent either from the HCU1 or CMM. Checks and reports position Flags up errors, e.g. failure to reach position, obstruction before or after locking etc. The PHC10-3 does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface. PHC10-3 specification Length 180 mm Width 440 mm Height 44 mm Weight 1.5 Kg Data transmission RS232 or USB Current Consumption (at 240V) less than 1 A PSU electrical ratings Supply voltage: 100-240 V ± 10% Frequency range: 50/60 Hz Power consumption: 49 W max. Transient voltages: Installation category II Input connectors 15 way 'D' Power supply 24 V DC 49 W provided by the Emerson PSU (DP4024N3M) power adaptor Probe output connectors 7-pin DIN or 9-way 'D' type Maximum cable length RS232 USB 50 m 5 m (extendible in lengths of 5 m by use of a hub, to a maximum length of 30 m) Hand held control unit HCU1 only This is by far the best price you will find on a Renishaw PH10 motorized probe and PH10-3 probe head controller. Why pay retail prices when you can purchase new with Full Factory Warranty from Metrology Parts. Purchase with Paypal from Metrology Parts a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs. If you have any questions feel free to contact us. With 25 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support. Because of our great discount prices we sell many new products to other sellers that are not Renishaw dealers. The full warranty always transfers with the product via serial number. End users, dealers or resellers can send suspect failed products back to the factory for warranty service and or replacement. We always offer as a service to our customers free test and check on all products sold if there are any suspect issues and can handle any warranty issues for you or you can send your failed warranty products to Renishaw direct. ( Be advised that if the factory does not find any issues you will be charged for a check and test. ) All new Renishaw products come with a one year standard warranty or you may upgrade to a 3 year extended warranty at the time of initial purchase for an increased price. (Please inquire before your purchase and payment) If you see items advertised on eBay as BRAND NEW but the warranty is only 90 days or less, in essence these products are in fact not BRAND NEW. Why gamble and purchase from a seller that has one of these and one of those. Most items we sell we have many in stock or we can order more from the factory should you have any issues. As a business seller here on eBay with over 5 million dollars in current inventory in our industrial sales facility Metrology Parts is always your best resource for all of your discount Renishaw needs. We Thank you for the opportunity to earn your business and strive for your 100% satisfaction. About Us Payment Shipping Terms Returns About Us About Us Payment Shipping Terms Returns Payment About Us Payment Shipping Terms Returns Shipping About Us Payment Shipping Terms Returns Terms About Us Payment Shipping Terms Returns Returns Helpful Links More Items! Frooition www.frooition.com | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Renishaw
Country of Manufacture	United Kingdom
Model	PH10MQ PH10M PH10T PHC10-3
CMM	Coordinate Measuring Machine
MPN	A-1025-1520 A-1025-0050 A-1025-1520 A-1036-0001
