Renishaw Sp25m Cmm Scanning Probe Kit 3 New Stock In Box With 6 Month Warranty

US $3,950.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

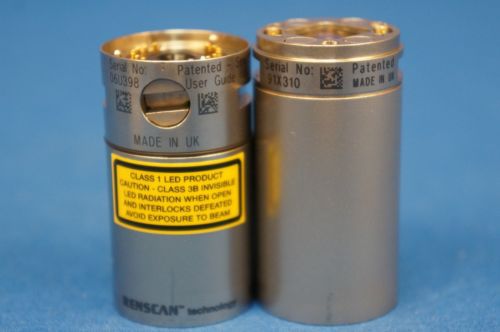

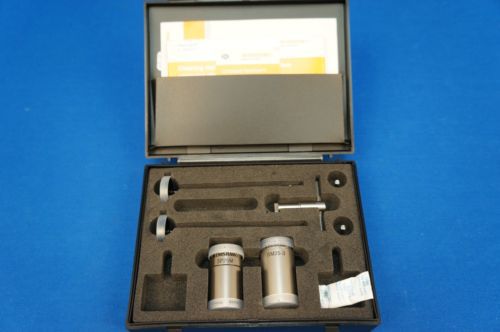

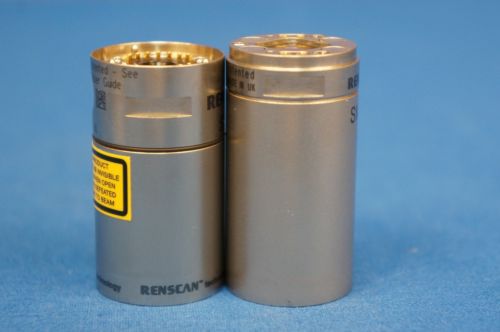

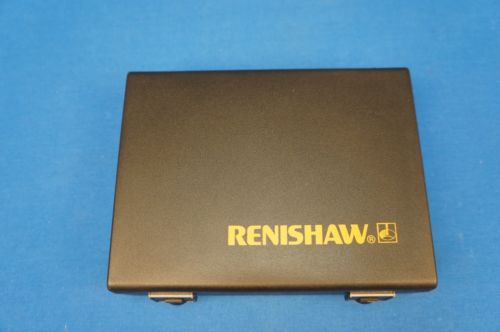

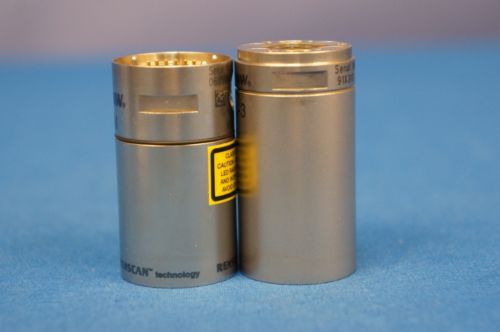

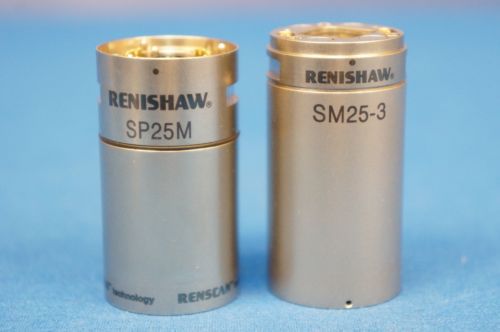

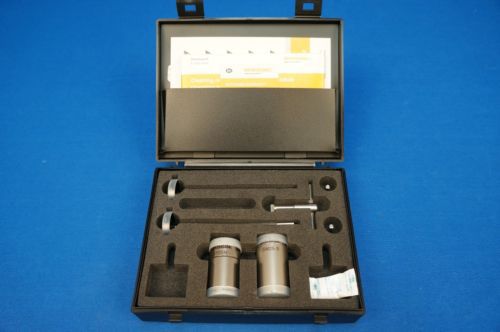

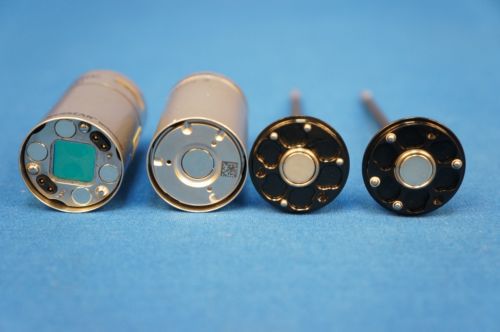

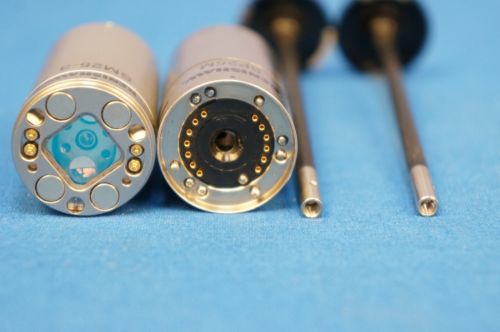

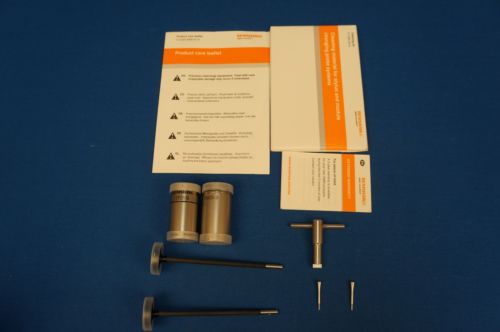

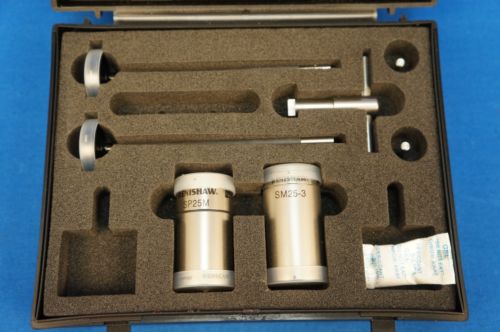

Powered by Frooition Pro Shop Search Renishaw SP25M CMM Scanning Probe Kit 3 New Stock in Box with 6 Month Warranty Click here to view full size. Full Size Image Click to close full size. Item Description New Stock Renishaw SP25M Scanning Probe Kit 3 in original foam lined box with 6 Month Warranty. Renishaw list price on what is included in this sale is $10362.00 About SP25M The SP25M comprises two sensors in a single housing. Users can switch between a choice of four scanning modules (which can carry M3 styli with lengths from 20 mm to 400 mm) and an adaptor module that is compatible with Renishaw's TP20 range of probe modules. This capability enables scanning and touch-trigger probing in a single probe system. The SP25M's compact size and autojoint mounting makes it compatible with the PH10M/MQ and PH6M probe heads. It can also be mounted on a multiwired extension bar. Together, these combinations permit excellent reach and access to part features. For details of the technology in SP25M, refer to the SP25M Technical Paper. Features and benefits World's smallest scanning probe at only 25 mm in diameter Excellent metrology - isolated optical sensing and 3rd order polynomial compensation Four modules provide optimal performance across a range of stylus lengths (up to 400 mm) Two sensors in one - scanning and touch-trigger Crash protection and simple stylus changing Fast and simple probe calibration cycle Ideal for profile and form measurement Suitable for use on motorised indexing heads for greater flexibility and shorter scanning cycle times Simple and robust design for greater reliability - no motors or locking mechanisms SP25M specification Mounting Renishaw autojoint : PH10M, PH10MQ or PH6M May be mounted on autojoint extension bars Suitable interface Either: UCC controller Or: AC3 PC interface card for machines not fitted with the UCC controller Probe attributes 3-axis analogue measurement (X, Y, Z) Pivoting motion in XY plane with translation in Z direction For SM25-5: Plane translation in all 3 axes XYZ Measurement range ±0.5 mm (±0.02 in) in X, Y and Z For SM25-5: ±0.3 mm Overtravel range ±2.0 mm (±0.08 in) in X and Y 1.7 mm (0.07 in) in +Z 1.2 mm (0.07 in) in –Z For SM25-5: ±X, ±Y = 0.95 mm (0.037 in) +Z = 1.0 mm (0.039 in) -Z = 1.1 mm (0.043 in) Crash protection: X, Y, –Z - break-off of either module or stylus holder +Z - integral bump-stop design Resolution < 0.1 µm (0.000004 in) with either UCC2 daughtercard or AC3 interface card Spring rate 0.2 N/mm to 0.6 N/mm nominal dependent on stylus length Damping Single viscous fluid damper For SM25-5: Two viscous fluid dampers Power supply +12 V (±5%), –12 V (+10% / –8%), +5 V (+10% / –13%) DC at probe Outputs (X,Y,Z) Non-linear and non-orthogonal analogue outputs - rate, gain and resolution are not fixed SP25M requires that a non-linear, third-order polynomial calibration method is used. Stylus range M3 SP25M modules and stylus holders A range of module kits allows SP25M users to build up their probing capability over time. Each SM25-# scanning module is optimised in terms of gain and spring rate to suit the range of stylus lengths specified. For every module, there is a matching SH25-# stylus holder. The SH25-3 and SH25-4 stylus holders are constructed with a fixed carbon fibre stem to which an M3 stylus is mounted, selected to provide the correct working length. Whilst the SP25M can carry cranked (non straight) styli configurations when using SM25-1/2/3/4 scanning modules and the original standard stylus holders (SH25-1/2/3/4) but for optimum metrology where larger offsets are required Renishaw recommends the new SH25-2A/3A/4A range of stylus holder, specifically designed to meet the challenges posed by such stylus arrangements. SM25-1 scanning module SM25-2 SM25-3 SM25-4 TM25-20 TTP adaptor module Use with SH25-1. Stylus length: 20 - 50 mm Use with SH25-2. Stylus length: 50 - 105 mm Use with SH25-3. Stylus length: 120 - 200 mm Use with SH25-4. Stylus length: 220 - 400 mm Use with TP20 touch-trigger modules and extensions. This is by the far the best price you will find on a Renishaw SP25M Scanning Probe Kit # with 6 Month Warranty. Why pay retail prices when you can purchase with warranty from Metrology Parts. Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs. If you have any questions feel free to contact us. With 25 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support. About Us Payment Shipping Terms Returns About Us About Us Payment Shipping Terms Returns Payment About Us Payment Shipping Terms Returns Shipping About Us Payment Shipping Terms Returns Terms About Us Payment Shipping Terms Returns Returns Helpful Links More Items! Frooition www.frooition.com | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Country/Region of Manufacture	United Kingdom
MPN	A-2237-1003
Brand	Renishaw
Country of Manufacture	United Kingdom
Model	SP25M Scanning Probe Kit 3#
Renishaw	CMM
