Renishaw Tp20 Cmm Probe Kit Including Tp20 Body & Em1 Module New In Box Warranty

US $1,925.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

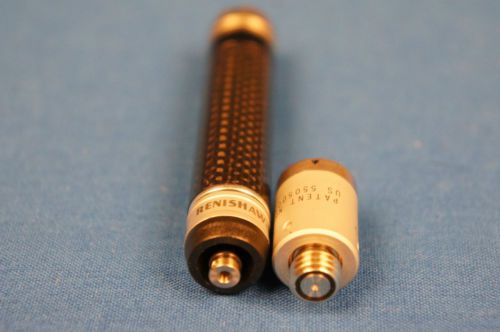

Powered by Frooition Pro Shop Search Renishaw TP20 CMM Probe Kit including TP20 Body & EM1 Module New in Box Warranty Click here to view full size. Full Size Image Click to close full size. Item Description New in Box with Full Factory Warranty Renishaw TP20 Touch Probe Kit including. One TP20 Probe Body. One EM1 Standard Force Module with an integral 50 MM carbon fiber extension. TP20 Manual, Cleaning Kit, and Certificate. About TP20 The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines. Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range. The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors. System components The system components are: TP20 probe body TP20 probe module - seven variants allow optimisation to suit application MCR20 module changing rack - automatic operation MSR1 module storage rack - manual operation Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200 TP20 specification Sense directions All modules except 6W 6W ±X, ±Y, +Z ±X, ±Y, ±Z Suitable interface PI4-2, PI7-2, PI200, UCC Pre-travel variation LF SF / EM1 / EM2 MF EF 6W ±0.60 µm (± 0.000023 in) ±0.80 µm (± 0.000032 in) ±1.00 µm (± 0.000039 in) ±2.00 µm (± 0.000079 in) ±1.50 µm (±0.000058 in) Unidirectional repeatability LF / SF / EM1 / EM2 MF EF 6W ±0.35 µm (± 0.000014 in) ±0.50 µm (± 0.000020 in) ±0.65 µm (± 0.000026 in) ±0.80 µm (± 0.000032 in) Repeatability of stylus changing MCR20 Manual ±0.50 µm (± 0.000020 in) ±1.00µm (± 0.000040 in) Stylus range M2 Mounting method M8 thread Probe modules A range of seven, application specific, probe modules is available and are identified by coloured caps. Module Application Trigger forces Stylus lengths SF - Standard force Suited to the majority of applications XY: 0.08 N Z: 0.75 N Stylus: 10 mm 10 - 50 mm GF LF - Low force Low trigger forces applications - e.g. rubber seals XY: 0.055 N Z: 0.65 N Stylus: 10 mm 10 - 30 mm MF - Medium force Where a higher trigger force than standard is required XY: 0.1 N Z: 1.9 N Stylus: 25 mm 10 - 60 mm EF - Extended force Large stylus assemblies or where vibration causes spurious 'air' triggers XY: 0.1 N Z: 3.2N Stylus: 10 mm 10 - 60 mm 6W - 6-way Measurement in the –Z direction - e.g. undercuts XY: 0.14 N Z: 1.6N Stylus: 10 mm 10 - 50 mm EM1 STD - 50 mm extension Majority of applications requiring a 50 mm extension XY: 0.08 N Z: 0.75 N Stylus: 10 mm 10 - 50 mm EM2 STD - 75 mm extension Majority of applications requiring a 75 mm extension XY: 0.08 N Z: 0.75 N Stylus: 10 mm 10 - 50 mm This is by far the best price you will find for a brand new Renishaw TP20 body with an EM1 standard force module. Why pay retail when you can purchase new with warranty from Metrology parts. Purchase with confidence from a Paypal verified retailer. If what you purchase is not what you receive you will be refunded the full purchase price for this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw product needs. If you have any questions feel free to contact us. With 24 plus years of experience with Renishaw products we can help with all of your application needs as well as your after sales support. About Us Payment Shipping Terms Returns About Us About Us Payment Shipping Terms Returns Payment About Us Payment Shipping Terms Returns Shipping About Us Payment Shipping Terms Returns Terms About Us Payment Shipping Terms Returns Returns Helpful Links More Items! Frooition www.frooition.com | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country of Manufacture	United Kingdom
Model	TP20 EM1
Brand	Renishaw
MPN	A-1371-0430
