Renishaw Tp20 Ni Probe Kit 3 With 2 Tp20 Sf & 1 Ef Modules New - 1 Year Warranty

US $2,750.00

Minneapolis, Minnesota, United States
Jul 1st

Open on mobile:
QR code

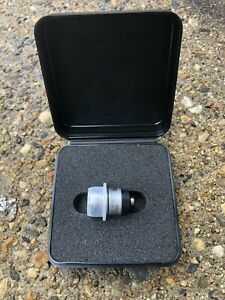

Powered by Frooition Shop Categories OtherRenishaw ProductsRam Optical and OGPMasters and StandardsPrecision Measuring ToolsCMM and VMM Probing SystemsMachine Tool Probing SystemsCMM PartsVideo Measuring Machine PartsCoordinate Measuring MachinesVideo Measuring MachinesProfile Surface and Roundness Renishaw TP20 NI Probe Kit 3 with 2 TP20 SF & 1 EF Modules New - 1 Year Warranty Item Description Renishaw TP20 NI CMM Touch Probe Kit 3. Whats included in this sale is: - 1 TP20 NI Touch Probe Body - 1 TP20 EF Module - 2 TP20 SF Modules - New with 1 Year Warranty. You may also specify medium, extended or standard force modules in any combinations with your order. Renishaw's current list price for this kit is $5074.00 About TP20 The TP20 is a compact 5-way, or 6-way, kinematic touch-trigger probe system. The two-piece design, comprising probe body and detachable stylus module(s), connected using a highly repeatable magnetic kinematic coupling. This provides the facility to change stylus configurations either manually or automatically without the need for requalification of the stylus tips, thereby giving significant time savings in inspection routines. Modules offering a range of trigger forces allow the probe performance to be best matched to the measurement task. A set of probe extensions is also available, as is a 6-way module. The stylus mounting thread accepts styli from the Renishaw M2 range. The TP20 system is easily retrofitted and is compatible with existing touch trigger probe interfaces, extensions and adaptors. System components The system components are: TP20 probe body TP20 probe module - seven variants allow optimisation to suit application MCR20 module changing rack - automatic operation MSR1 module storage rack - manual operation Suitable for interfacing with Renishaw's PI4-2, PI7-2 or PI200 TP20 specification Sense directions All modules except 6W 6W ±X, ±Y, +Z ±X, ±Y, ±Z Suitable interface PI4-2, PI7-2, PI200, UCC Pre-travel variation LF SF / EM1 / EM2 MF EF 6W ±0.60 µm (± 0.000023 in) ±0.80 µm (± 0.000032 in) ±1.00 µm (± 0.000039 in) ±2.00 µm (± 0.000079 in) ±1.50 µm (±0.000058 in) Unidirectional repeatability LF / SF / EM1 / EM2 MF EF 6W ±0.35 µm (± 0.000014 in)±0.50 µm (± 0.000020 in) ±0.65 µm (± 0.000026 in) ±0.80 µm (± 0.000032 in) Repeatability of stylus changing MCR20 Manual ±0.50 µm (± 0.000020 in)±1.00µm (± 0.000040 in) Stylus range M2 Mounting method M8 thread Probe modules A range of seven, application specific, probe modules is available and are identified by coloured caps. Module Application Trigger forces Stylus lengths SF - Standard force Suited to the majority of applications XY: 0.08 N Z: 0.75 N Stylus: 10 mm 10 - 50 mm GF LF - Low force Low trigger forces applications - e.g. rubber seals XY: 0.055 N Z: 0.65 N Stylus: 10 mm 10 - 30 mm MF - Medium force Where a higher trigger force than standard is required XY: 0.1 N Z: 1.9 N Stylus: 25 mm 10 - 60 mm EF - Extended force Large stylus assemblies or where vibration causes spurious 'air' triggers XY: 0.1 N Z: 3.2N Stylus: 10 mm 10 - 60 mm 6W - 6-way Measurement in the –Z direction - e.g. undercuts XY: 0.14 N Z: 1.6N Stylus: 10 mm 10 - 50 mm EM1 STD - 50 mm extension Majority of applications requiring a 50 mm extension XY: 0.08 N Z: 0.75 N Stylus: 10 mm 10 - 50 mm EM2 STD - 75 mm extension Majority of applications requiring a 75 mm extension XY: 0.08 N Z: 0.75 N Stylus: 10 mm 10 - 50 mm This is by far the best price you will find on a new Renishaw TP20 NI Probe Kit 3 with 3 Modules and 1 Year Warranty. Why pay retail prices when you can purchase new with warranty from Metrology Parts. Purchase with confidence from a Paypal verified retailer. If what you purchase is not what you receive you will be refunded the full purchase price of this sale. Metrology Parts would like the opportunity to earn your business for this sale and all your future Renishaw needs. If you have any questions feel free to contact us. With 35 plus years of experience with Renishaw products we can help with all of your applications needs as well as your after sales support. About Us About Us Payment Shipping Terms Returns About Us Payment Payment Shipping Shipping Terms Terms Returns Returns Metrology Parts always strives for 100% customer satisfaction. If for any reason, you are unhappy with your purchase from us we would like to hear from you on how we could have improved your shopping experience. We understand that sometimes mistakes can be made in orders or sometimes there is buyer?s remorse. We have a 60 day return policy on all items. Please do be advised that all items need to be returned in original packaging with all manuals, certificates and unopened tool kits. If items have been installed and show installation marks we can only offer a partial refund on items we cannot resell as new or return to the factory. If you are having issues with equipment in your facility and are in need of help troubleshooting prior to purchase, we offer free technical support to make sure the correct parts get ordered. Free technical support is also offered on all items purchased to make sure your installation goes smoothly. Should you need to return items purchased from Metrology Parts please contact us for an RMA, address we would like the item shipped and instructions on shipping your return to us safely. On behalf of Metrology Parts, we would like to thank you in advance for the opportunity to earn your business. Helpful Links Add to Favorite Sellers Sign up to Newsletter View Feedback Contact Seller Visit seller's eBay Shop About Seller Page More Items! View more great items Renishaw TP20 Probe Kit 3 with 2 TP20 SF & 1 EF Modules New - 1 Year Warranty $2,750.00 New Renishaw TP6A CMM Touch Probe Kit in box with 1 Year Warranty $1,600.00 Renishaw TP20 NI Probe Kit 1 with 2 TP20 SF & 1 EF Modules New - 1 Year Warranty $2,750.00 Renishaw TP20 Probe Kit 1 with 2 TP20 SF & 1 EF Modules New - 1 Year Warranty $2,750.00 Powered by Frooition Frooition Frooition | No-js Template | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design (ver:froo_no_js) This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country of Manufacture	United Kingdom
Instrument Type	CMM Touch Probe & Module
MPN	A-1371-0642 A-1371-0272
Brand	Renishaw
Country/Region of Manufacture	United Kingdom
Model	TP20
