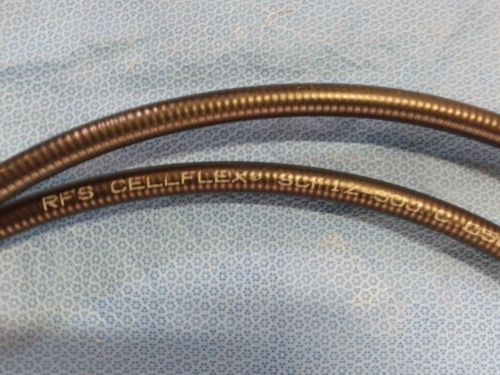

RFS CellFlex SCF12-50J 11" Superflexible Foam-Dielectric Coaxial Cable, US $160 – Picture 0

RFS CellFlex SCF12-50J 11" Superflexible Foam-Dielectric Coaxial Cable, US $160 – Picture 1

Rfs Cellflex Scf12-50j 11" Superflexible Foam-dielectric Coaxial Cable

US $160

Rio Rancho, New Mexico, United States
Jan 29th

Open on mobile:
QR code

11 foot cable for jumper manf. SCF12-50J Technical Data SheetSCF12-50J 1/2" CELLFLEX® Superflexible Foam-Dielectric Coaxial Cable RFS-Logo Product Description CELLFLEX® 1/2" superflexible cable Application: OEM jumpers, Main feed transitions to equipment, GPS lines Features/Benefits Low Attenuation The low attenuation of CELLFLEX® coaxial cable results in highly efficient signal transferin your RF system. Complete Shielding The solid outer conductor of CELLFLEX® coaxial cable creates a continuous RFI/EMI shield that minimizes system interference. Low VSWR Special low VSWR versions of CELLFLEX® coaxial cables contribute to low system noise. Outstanding Intermodulation Performance CELLFLEX® coaxial cable?s solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory. High Power Rating Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric materials, CELLFLEX® cable provides safe long term operating life at high transmit power levels. Wide Range of Application Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects. Technical Specifications Structure Inner Conductor: Copper-Clad Aluminum Wire [ mm (in) ] 3.56 (0.14) Dielectric: Foam Polyethylene [ mm (in) ] 9.3 (0.366) Outer Conductor: Corrugated Copper [ mm (in) ] 12.3 (0.48) Jacket: Polyethylene, PE [ mm (in) ] 13.75 (0.54) Mechanical Properties Weight, approximately [ kg/m (lb/ft) ] 0.17 (0.11) Minimum bending radius, single bending [ mm (in) ] Minimum bending radius, repeated bending [ mm (in) ] 32 (1.3) Bending moment [ Nm (lb-ft) ] 1.8 (1.33) Max. tensile force [ N (lb) ] 650 (146) Recommended / maximum clamp spacing [ m (ft) ] 0.3 / 0.3 (1 / 1) Electrical Properties Characteristic impedance [ ? ] 50 +/- 1 Relative propagation velocity [ % ] 77 Capacitance [ pF/m (pF/ft) ] 86 (26) Inductance [ µH/m (µH/ft) ] 0.215 (0.066) Max. operating frequency [ GHz ] 10.6 Jacket spark test RMS [ V ] 5000 Peak power rating [ kW ] 24 RF Peak voltage rating [ V ] 1550 DC-resistance inner conductor [ ?/km (?/1000ft) ] 2.9 (0.88) DC-resistance outer conductor [ ?/km (?/1000ft) ] 4.5 (1.37) Recommended Temperature Range Storage temperature [ °C (°F) ] -70 to 85 (-94 to 185 ) Installation temperature [ °C (°F) ] -40 to 60 (-40 to 140 ) Operation temperature [ °C (°F) ] -50 to 85 (-58 to 185 ) Other Characteristics Fire Performance: Halogene Free VSWR Performance: Standard [ dB (VSWR) ] Contact RFS for your VSWR performance specification for your required frequency band. Other Options: Phase stabilized and phase matched cables and assemblies are available upon request. 1/2" CELLFLEX® Superflexible Foam Dielectric Coaxial Cable 1/2" CELLFLEX® Superflexible Foam Dielectric Coaxial Cable Attenuation Table Frequency Attenuation Power [ MHz ] [ dB/100m ] [ dB/100ft ] [ kW ] 0.5 0.221 0.0673 24.0 1.0 0.312 0.0952 22.6 1.5 0.383 0.117 18.4 2.0 0.442 0.135 16.0 10 0.995 0.303 7.10 20 1.41 0.430 5.01 30 1.73 0.529 4.08 50 2.25 0.686 3.14 88 3.01 0.916 2.35 100 3.21 0.978 2.20 108 3.34 1.02 2.11 150 3.96 1.21 1.78 174 4.27 1.30 1.65 200 4.60 1.40 1.53 300 5.68 1.73 1.24 400 6.61 2.01 1.07 450 7.04 2.14 1.00 500 7.44 2.27 0.949 512 7.53 2.30 0.938 600 8.20 2.50 0.861 700 8.91 2.71 0.792 750 9.24 2.82 0.764 800 9.57 2.92 0.738 824 9.72 2.96 0.726 894 10.2 3.10 0.692 900 10.2 3.11 0.692 925 10.4 3.16 0.679 960 10.6 3.22 0.666 1000 10.8 3.29 0.654 1250 12.2 3.72 0.579 1400 13.0 3.96 0.543 1500 13.5 4.11 0.523 1700 14.5 4.41 0.487 1800 14.9 4.55 0.474 2000 15.8 4.82 0.447 2100 16.3 4.96 0.433 2200 16.7 5.09 0.423 2400 17.5 5.35 0.403 2500 17.9 5.47 0.394 2600 18.4 5.59 0.384 2700 18.8 5.72 0.376 3000 19.9 6.07 0.355 3500 21.8 6.63 0.324 4000 23.5 7.16 0.300 5000 26.8 8.16 0.263 6000 29.8 9.09 0.237 7000 32.7 9.97 0.216 8000 35.5 10.8 0.199 9000 38.1 11.6 0.185 10000 40.6 12.4 0.174 Attenuation at 20°C (68°F) cable temperature. Mean power rating at 40°C (104°F) ambient temperature.

Condition:

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
