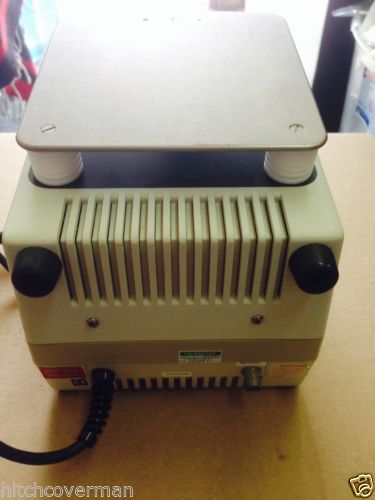

RICHMOND ELECTRONICS Charged Plate MONITOR MODEL TI-700, US $1,800.00 – Picture 1

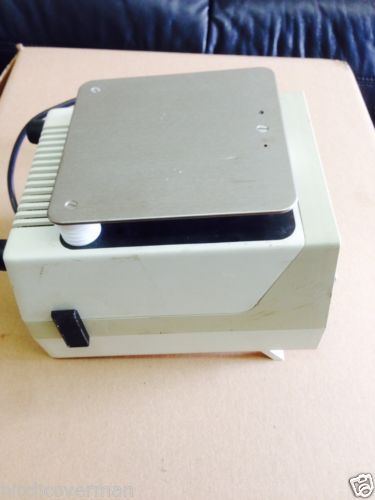

RICHMOND ELECTRONICS Charged Plate MONITOR MODEL TI-700, US $1,800.00 – Picture 2

Richmond Electronics Charged Plate Monitor Model Ti-700

US $1,800.00

Fullerton, California, United States
Jan 29th

Open on mobile:
QR code

THIS IS SOLD AS IS. THIS IS A RICHMOND CHARGE PLATE MONITOR,(SAME AS MONROE ELECTRONICS Charged Plate Analyzer Model: 268A ) BELOW!! Provides quick and easy evaluation of ionization equipment to ESD Association Standard No. 3 The simple-to-use unit features two modes of operation. The normal mode evaluates the effectiveness of room ionization, laminar flow hoods, table top ionization and air guns and nozzles as described in the ESD Association standard, including static decay timing and system balance monitoring. The peak mode reads and holds either the positive or negative peak reading on the charged plate. This is useful for monitoring maximum DC voltage swings in pulsed DC ionization systems. The Model 268A-1 features two switch-selectable ranges 0 to ±2,000 V or 0 to ±5,000 V with automatically set trip points to begin and end static decay tests. The isolated charge plate/probe assembly is removable and is fitted with a tripod mount for easy positioning. Feature 1: Two ranges measure from 0 to ± 5kV Feature 2: Removable cable connected plate/probe permits precise positioning and remote monitoring Feature 3: Separate time and voltage displays for decay rate analysis Specification: Size (W x H x D) 6.75" H x 6.75" W x 9.50" D Weight 5lbs Power Requirements 105 to 130 VAC, 47 to 63 Hz or ± 10% of 220VAC, 47 to 63Hz Meter Range Selectable 0 to ± 5000V, 0 to ± 1000V Plate Capacitance to Ground 20 Picofarads +/- 2 pf Drift: <0.4% per hour, non cumulative after 10 minutes of stabilization Output: 1/1000 of plate voltage Trip Points: Selectable ± 1000 volts to 100 volts, ± 5000 volts to ± 500 volts - also see available options Accuracy Better than 2% of reading

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	RICHMOND
MPN	TI-7000
Model	TI-7000
Country/Region of Manufacture	United States
