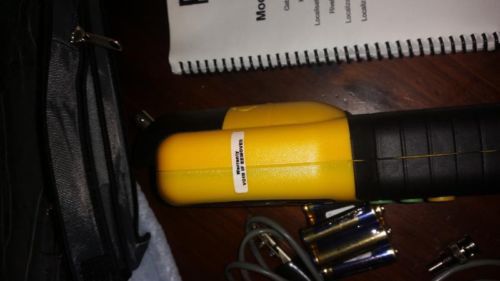

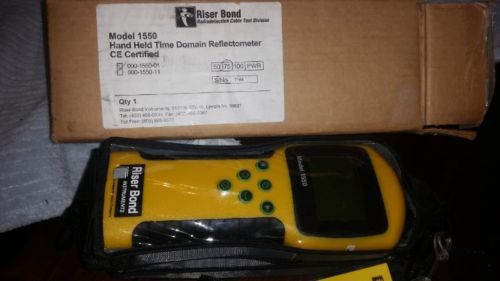

Riser Bond Time Domain Reflectmeter (TDR) 1550, US $300.00 – Picture 0

Riser Bond Time Domain Reflectmeter (TDR) 1550, US $300.00 – Picture 1

Riser Bond Time Domain Reflectmeter (TDR) 1550, US $300.00 – Picture 2

Riser Bond Time Domain Reflectmeter (TDR) 1550, US $300.00 – Picture 3

Riser Bond Time Domain Reflectmeter (tdr) 1550

US $300.00

Weirton, West Virginia, United States
Mar 5th

Open on mobile:
QR code

This item is new and never used. Opened box to take pictures only. The Model 1550 is a low cost waveform Time Domain Reflectometer (TDR) designed for locating the distance to a cable fault in rugged, outside plant applications. A truly one-handed, ergonomic design provides the operator with an easy to use yet versatile TDR, Cable Fault Locator. The unique modular test lead design provides quick and easy adaptation to a variety of industries and applications. The custom waterproof housing and easy access battery compartment makes the model 1550 the perfect troubleshooting tool for anytime, anywhere and any weather application. The Model 1550 features multiple ranges, a large backlit LCD, adjustable instrument settings, and fingertip operation, locate opens, shorts, taps, splices, water corrosion and may other cable faults and conditions. The small size and low cost make the Model 1550 an ideal tool for all technicians, linepersons and construction personnel. Batteries never installed. Device never powered on except for calibration. Physical Dimensions: Height: 9.8 inches (250 mm) Width: 4 inches (100 mm) Weight: 1.3 pounds (600 gm) Gain: Automatic. Varied across screen Pulse Amplitude: Depth: 2.2 inches (55 mm) 5V nominal when non-terminated Power: Six (6) AA Batteries Environmental Operating Temperature: -20°C(-4°F) to +55°C(+131 °F) Storage Temperature: -30°C(-22°F) to +70°C(+1 58°F) Humidity: 93% relative humidity at +40°C Display: 128 x 64 dot matrix liquid crystal display (LCD) with backlight Output Pulse: 7 nsec to 2000 nsec selected according to range Distance Accuracy: =/- 0.9% of range Ingress Protection: Water resistant to BS2011, Part 2.1 R/IEC 68-2-18, Test Ra Cursor: Single vertical line Resolution: 1 % of range Output Impedance: 25,50,75 and 100 switchable Ranges: 33ft. (10m), 98ft. (30m), 330ft. (100m), 980ft. (300m), 3300ft. (1000m), 9800ft. (3000m) Input Protection: Up to 250 volts Velocity of Propagation: Adjustable from .20 to .99 Output Sockets: 2x4 mm on 19 mm pitch Safety: EC Directive 73/23/EEC, as amended by 93/68/EEC. BS EN 41003: 1997 Standard Accessories: Operator's manual, weatherproof shoulder bag with belt loop, 6 AA batteries Optional Accessories: Fused blocking filter test lead for live power cable to 600VAC, 50ohm test lead for coax cable and non-energized power cable, 75ohm test lead for coax cable, 100ohm test lead for twisted pair, BNC to F adaptor, The 1550 can be used on telephone twisted pair, coaxial and power cable. Please select what utility your will be using the 1550 for.

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Riser Bond
Model	1550
