Rk3066 Pro Rockchip Arm Cortex A9 Marsboard With Ports Usb Hdmi Csi Lcd Vga Ect.

US $150.99

shenzhen, guangdong, China
Jan 29th

Open on mobile:
QR code

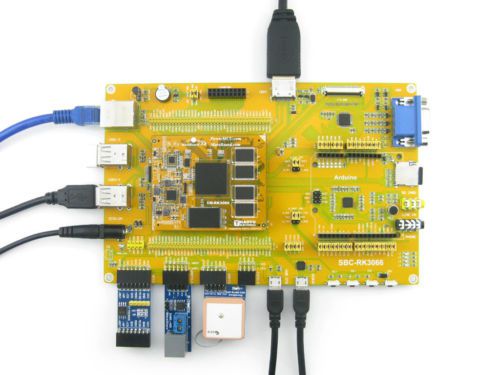

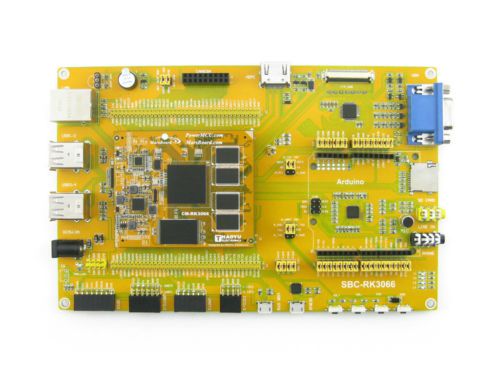

This auction is for MarsBoard RK3066 Pro MarsBoard RK3066 Pro, Flexible Designed development board powered by Rockchip SOC, Dual core ARM Cortex A9 CPU, Quad core Mali-400 MP GPU Overview The MarsBoard RK3066 Pro is a flexible Designed development board powered by the popular Rockchip dual core SOC combining a power dual core ARM Cortex A9 CPU and Quad core Mali-400 MP GPU. The MarsBoard RK3066 Pro consists of a base board and and a CPU module, comes with various interfaces like USB, HDMI, CSI, LCD, VGA, Arduino, LAN, UART, SPI, I2C, etc. What's on the Base Board ONE-WIRE interface : easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. CPU module connector : for connecting CM-RK3066 CSI camera connector : for connecting CSI camera modules like OV2640 Camera Board HDMI connector : for connecting HDMI devices like monitor ICSP interface LCD interface : for connecting 7inch capacitive touchscreen LCD VGA connector : for connecting VGA devices through a VGA cable Arduino interface : for connecting Arduino shields like Motor Driver Shield Micro SD card slot 3.5mm LINE IN jack : audio input 3.5mm Heardphone jack DEBUG interface : for debugging the CPU kernel via serial port, and/or messages input/output OTG interface : can be used to burn Image into the CPU module CM-RK3066 I2C interface : for connecting I2C modules like PCF8563 RTC Board, MAG3110 Board, etc. CPU module expansion header UART interface : for connecting UART modules like RS485 Board (3.3V), GPS Module, etc. Battery holder : for the CPU module RTC UART (with flow control) interface : for connecting UART (with flow control) modules like FT232 USB UART Board, etc. SPI interface : for connecting SPI modules like AT45DBXX Dataflash Board, etc. IR interface : for soldring IR receiver like HS0038B Power supply : provides power to the CPU module Power input/output: usually used as power output, also common-grounding with other user board USB connector : for connecting USB devices like USB Mouse/Keyboard, USB Camera, USB Wifi, etc. LAN connector : for connecting to the Ethernet Power indicator FE1.1S : USB Hub chip Buzzer GM7123C : LCD to VGA converter ALC5631 : audio decoder Microphone User LED AD button : Arduino regular buttons CP2102 : UART to USB converter ONE-WIRE jumper Buzzer jumper Arduino UART selection jumper short the upper two pins while connecting an Arduino host board short the lower two pins while connecting an Arduino UART shield Arduino AD selection jumper short the upper two pins while connecting an Arduino ADC shield short the lower two pins while connecting an Arduino I2C shield Arduino Port selection jumper controlling the Arduino IO connection while connecting an Arduino host board What's on the CM-RK3066 Rockchip RK3066 CPU: ARM Cortex A9 Dual core @1.6GHz GPU: Mali-400 MP Quad core @400Mhz 2D accelerator Media accel: 1080p decode/encode, h264 vp8 encode RAM types: DDR3, DDR2, LPDDR2, etc. Display outputs: 5 layers, 2 flat panel, HDMI 1.4a (3D) Camera: supports dual cameras Boot devices: NAND, eMMC, USB, serial DVFS (Dynamic Voltage and Frequency Scaling) 1GB DDR3 SDRAM (up to 2GB) 4GB Nand Flash & eMMC FLASH Power management: TPS659102 TX indicator LED: for debugging Power indicator LED 10/100M Ethernet PHY: LAN8720A J3 expansion: 20x2 pin 1.27MM J2 expansion: 50x2 pin 1.27MM J1 expansion: 50x2 pin 1.27MM Photos SBC-RK3066 base board SBC-RK3066 base board SBC-RK3066 base board Connecting with CM-RK3066 Connecting with CM-RK3066 Connecting with 7inch touch LCD 7inch touch LCD Demo Connecting with various accessories Examples Peripheral Interface LINUX LED I/O Y Buzzer PWM Y DS18B20 temperature sensor ONE-WIRE Y MAG3110 Board I2C3 Y AT45DBXX DATAFLASH SPI0 Y UART UART0/1/3/5 Y RS485 Board (3.3V) UART3/UART5 Y UART GPS NEO-7M UART3 Y USB CAMERA VIDEO0 Y USB WIFI WLAN1 Y Development Resources Data Types Description Download Documentations User Manual Porting mjpg-streamer Porting Driver Schematics MarsBoard-RK3066-Pro-Schematic.PDF Image http://marsboard.org/marsboard_rk3066_download.html Source Code Mjpg-streamer Rtl8188eu Ws_driver SBC-RK3066-API Software Release_DriverAssitant Rockchip-pack-tools-master Package Contains CM-RK3066 x 1 SBC-RK3066 x 1 Power Adapter US Standard 5V 2A 5.5/2.1mm x 1 USB Type A Plug to Micro B Plug Cable x 1 7inch Capacitive Touch LCD (D) x 1 MAG3110 Board x 1 AT45DBXX DataFlash Board x 1 UART GPS x 1 RS485 Board (3.3V) x 2 DS18B20 x 1 USB Camera OV7670 x 1 USB WIFI RTL8188EU x 1 1 2 3 4 5 6 7 8 9 10 11 12 Terms & Conditions Payment: · PayPal is the only method of payment that we accept. Shipping: · We ship items to Worldwide! · Please confirm your address in paypal, phone number is also very important. · All items will be shipped within 48 working hours on receipt of cleared payment. · We'll add a tracking number after sending the item so that you can track your parcel. Returns Policy: · We are happy to return any unused item in its original packaging within 14 days of delivery. · Buyers are responsible for the round(two-way) shipping cost. Feedback: · We'll leave POSITIVE FEEDBACK on receipt of cleared payment. · If you're satisfied with the item and our service, please leave POSITIVE FEEDBACK, it's important to us. · Once any problems occured, please contact us first. We'll try our best to work things out. FAQ: · More details(Click) If you have any question, please feel free to contact us. It's our pleasure to serve you! We appreciate your business!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Waveshare
GPU	Mali-400 MP Quad core @400Mhz
Model	MarsBoard RK3066 Pro
SDRAM	1GB DDR3 SDRAM (up to 2GB)
Country/Region of Manufacture	China
Nand Flash	4GB Nand Flash & eMMC FLASH
CPU	Rockchip RK3066, ARM Cortex A9 Dual core @1.6GHz
