Rodix Feeder Cube Model Fc-92 Plus, P/n 121-8450. Dual Vibratory Feeder Control

US $119.95

Rockford, Illinois, United States
Jan 29th

Open on mobile:
QR code

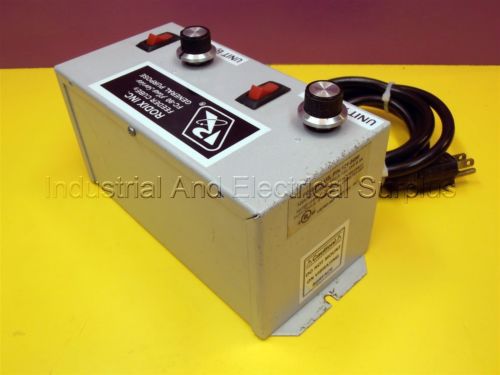

This is for ONE, RODIX Feeder Cube. Model FC-92 Plus, Part No. 121-000-8450 Output 120 VAC. 50/60 Hz. Unit A = 10 Amp. / Unit B = 5 Amp. THE FC-90 Plus Series "Parts Sensing" Feeder Cube® Controllers FC-90 Plus Series Typical Applications Vibratory bowls that require part sensing Storage hoppers using photoelectric bowl level detectors Electrical Specifications 120VAC input voltage, 50/60 Hz, 15 amps or 30 amps 240VAC input voltage, 50/60 Hz, 8 amps or 15 amps Enclosure Styles Open frame (single units only) Nema-1 general purpose (single, double and triple units) Nema-12 oil resistant (single, double and triple units) UL and cUL listed (File EI83233) Provides a soft-start adjustment so a feeder bowl, inline track drive or storage hopper can cycle on gently. Maximum output power level adjustment allows for the maximum output of the control to be preset. Output is switch selectable from 120 pulses per second (UN-rectified or full-wave) to 60 pulses per second (rectified or half-wave). Line voltage compensation feature automatically adjusts the output of the controller to compensate for incoming voltage fluctuations. 12vdc power supply provided along with separate on and off time delays for the parts sensor (NPN or PNP). Auxiliary output provided for interlocking with other Rodix controls A Constant Feed Rate (CFR) sensor can be installed to automatically adjust the output of the control based on the vibration level of the feeder. 100% Customer Satisfaction! If you are not satisfied returns are gladly accepted. We usually ship the next business day after payment is received. We reserve the right to ship via the fastest and most affordable method. Payment in full is expected within 7 day of sale, exceptions will be made if you respond to request for payment or, arrangements are made for payment otherwise the transaction may be canceled. WE DISCLAIM ANY WARRANTY OF SUITABILITY FOR A PARTICULAR PURPOSE AND/OR NON-INFRINGEMENT. IN NO EVENT SHALL WE BE LIABLE FOR ANY DAMAGES EXCEPT ACTUAL DAMAGES UP TO, BUT NOT EXCEEDING, THE AMOUNT PAID FOR THE PRODUCT, INCLUDING: WE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INDIRECT DAMAGES OR LOST PROFITS WHETHER OR NOT ADVISED OF SAME. We are not a distributor of original manufacturers and we are not a party to any manufacturer’s warranty that may or may not apply. Powered by SixBit's eCommerce Solution

Condition	Seller refurbished : An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details.
Seller Notes	“Excellent Condition many photos Very Clean!”
