Rohde & Schwarz Baseband Fading Simulator Abfs-b1 1115.0009.02 & B49

US $1,100.00

Fort Wayne, Indiana, United States
Feb 28th

Open on mobile:
QR code

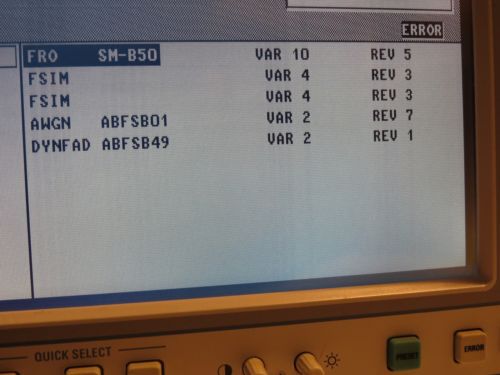

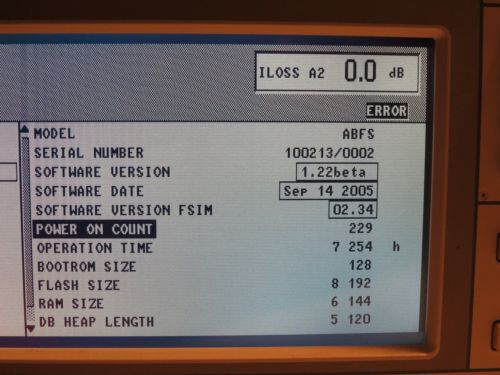

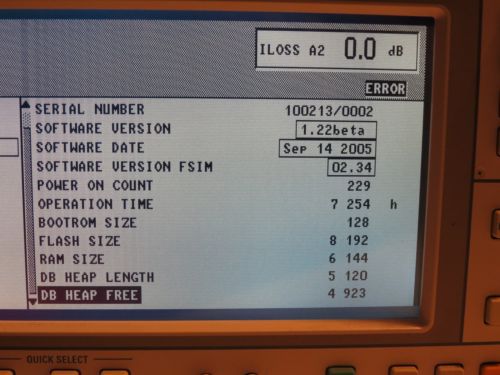

Rohde & Schwarz BaseBand Fading Simulator ABFS-B1 1115.0009.02 & B49 1114.8506.02 Condition: Used and working or refund will be given, calibration expired (12/08/2014) however unit is functional. Powered on and navigated several windows & menus but we can not do in depth analysis of unit. Details: Website data & PDF link below http://cdn.rohde-schwarz.com/pws/dl_downloads/dl_common_library/dl_manuals/gb_1/a/abfs_1/abfs_e2n.pdf Key Facts: The characteristics of a radio channel can strongly impair signal transmission between a transmitter and in particular a moving receiver. The Baseband Fading Simulator R&S®ABFS generates signals that simulate real receive conditions in mobile applications. Thus, the response of receivers under real-world conditions can already be checked during development and QM acceptance testing. The simulation of fading signals at baseband level reduces costs. Advantages of baseband fading simulation: Conventional fading simulators normally convert the signal of the radio channel to the IF, perform fading and then reconvert the signal to its RF frequency. It is, however, less costly to loop in the simulator prior to the fi rst conversion to the carrier frequency, i.e. to simulate at baseband level (I and Q) and then convert to the correct frequency in the test system (see Fig. 3). Signals will therefore not be impaired by the effects of multiple conversion. This baseband fading simulation makes upgrading to new networks or standards easy. The flexible concept of the R&S®ABFS allows the simulation of radio channels of existing and future communications systems (e.g. mobile radio, broadcasting, flight telephone, WLL, or WLAN systems). The R&S®ABFS can also simulate frequency hopping systems. The R&S®ABFS is fast enough to follow the frequency hopping of a test system, for example within a frame of 4.616 ms (GSM frame time). Furthermore, an offset voltage for each I and Q input or output can be entered to compensate for external DC offset voltages. Together with a baseband source (e.g. the I/Q Modulation Generator R&S®AMIQ, see Fig. 1), receiver tests can be performed at the I/Q level even if the corresponding RF link is not available. During the development of receivers or correction circuits in the receiver (e.g. equalizer), the effects of fading can thus be checked at a very early stage. Fit for the future: The Baseband Fading Simulator R&S®ABFS is suitable for universal mobile radio applications in research, development and production. It comprises all scenarios and statistical models for simulating sporadic fading as specified in the test regulations of mobile radio standards (e.g. GSM, 3GPP WCDMA or R&S®CDMA2000). The R&S®CMU 200 with the option R&S®CMU-B17 in combination with the Fading Simulator R&S®ABFS can also be used for receiver tests under fading conditions Features & Benefits Flexible concept: The basic model of the R&S® ABFS comes with two independent channels for six-path fading. The two channels can be interconnected as follows: Distribution of an input to two outputs (e.g. with different fading profiles). This feature makes it possible to simulate the signal of two antennas with different characteristics or frequency diversity methods. Simulation of two channels with individual profiles and addition at the output. Cell change or superposition of interferers can be tested with this configuration. Coupling of two channels so that a channel with 12 propagation paths is obtained High versatility through options: The Noise Generator R&S® ABFS-B1 adds a noise source to the output of the first channel (see Fig. 4) so that noise can be simulated in the frequency band used. The noise generator can be switched on or off irrespective of the operating modes of the basic version. The optional Second Fading Simulator R&S® ABFS-B2 offers two extra channels with the same characteristics in addition to the two channels of the basic model. The optional Second Noise Generator R&S® ABFS-B3 provides an additional noise source for a further output. This second noise generator is either assigned to the second channel of the basic R&S® ABFS (with the first Noise Generator R&S® ABFS-B1 for the first channel) or to the first channel of the Second Fading Simulator R&S® ABFS-B2. Fading profiles such as Rayleigh, Rician, pure Doppler, Lognormal or Suzuki can be assigned to each of the propagation paths irrespective of the selected circuit. In addition to the fading profiles mentioned, the following parameters can be defined for each propagation path: Path attenuation Delay time Doppler frequency or speed between transmitter and receiver Coupling to another channel Pre-programmed fading models: Many fading models have already been programmed in ABFS. The user can quickly recall these default settings and also modify the parameters. Enhanced fading functions for 3GPP WCDMA: The R&S® ABFS-B49 option extends the functionality of the Baseband Fading Simulator R&S® ABFS to include 3GPP WCDMA channel simulation. It adds three new modes to the fading simulator so that all scenarios defined in 3GPP Release 99 can be simulated: In fine delay mode, the fading simulator resolution is increased to 1 ns with up to four paths being available. In moving delay mode, two paths are simulated: the delay for one path remains constant, whereas the delay for the other path varies continuously. In birth/death mode, there are two paths where the delay changes in steps in accordance with the 3GPP channel model. The option R&S® ABFS-B50 enables the enhanced fading functions for 3GPP WCDMA for the second fading simulator. FOR MORE INFO CONTACT ZONDRE @ 260-440-4230 SEND MESSAGE BOTTOM OF PAGE (ASK A QUESTION) THANK YOU International Buyers: We ship many of our products through the eBay global shipping program. ALL countries are not offered but we ship worldwide and we are glad to make any arrangements for any buyer of our equipment. Our prices are based on item being shipped to a US shipping center and not direct to buyer location. PLEASE bid/buy accordingly, for the prices are not international price, but is part of the total price that will be invoiced/paid. eBay's third party shipper will calculate total amount to be paid for international duties & taxes etc. If you desire that we ship the unit directly to you please let us know and we will get an invoice to you immediately. In some transactions a country not supported in global shipping program will get a domestic shipping price entered on invoice and that price is incorrect, in these cases we will let you know immediately and try to resolve the mistake satisfactorily. Thank you for choosing 2ndprotocol

“Options ABFS-B1 & B49”

Brand	Rohde & Schwarz
MPN	1114.8506.02
Model	ABFS
Country/Region of Manufacture	Czech Republic
