Rohde & Schwarz ( R&s) Amu200a Baseband Signal Generator And Fading Simulator

US $9,500.00

Fremont, California, United States
May 6th

Open on mobile:
QR code

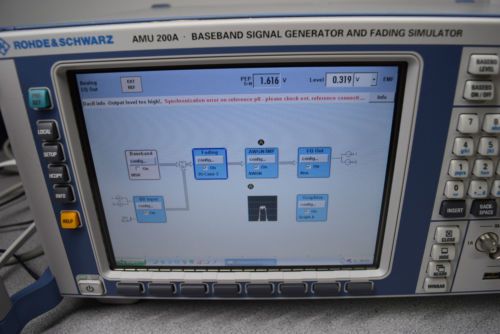

Rohde & Schwarz ( R&S) AMU200A Baseband Signal Generator and Fading Simulator This sale is for one used Rohde & Schwarz ( R&S) AMU200A Baseband Signal Generator and Fading Simulator. It's clean and good cosmetic condition. It passes self test, except one error message " synchronization error on reference ", due to ext reference not connected. Seller doesn't know how to test it, but tested some of buttons, look response properly. Brief Description The R&S®AMU200A baseband signal generator and fading simulator has been designed to meet all requirements encountered in the research and development of modern communications systems as well as in their production. Key Facts Single-path or dual-path instrument 2x2 MIMO with realtime fading possible Configuration as a fading simulator, an I/Q source, or an all-in-one instrument offering fading simulation and signal generation Specifications Baseband generator Waveform memory 16/64/128 Msample Sampling rate 100 MHz Baseband bandwidth 40 MHz Supported modulation types ASK 0 % to 100 % FSK MSK, 2 FSK, 4 FSK, 8 FSK, 16 FSK PSK BPSK, QPSK, QPSK 45 ° offset, OQPSK,?/4-QPSK, ?/2-DBPSK, ?/4-DQPSK,?/8-D8 PSK, 8 PSK, 8 PSK EDGE QAM 16 QAM, 32 QAM, 64 QAM, 256 QAM,1024 QAM Supported standards and digital systems(depending on options) 3GPP LTE, 3GPP FDD/HSPA/HSPA+, TD-SCDMA, GSM/EDGE/EDGE evolution, cdmaOne,CDMA2000®, 1xEV-DO, WiMAX™ IEEE 802.16-2004/Cor1/D5 and IEEE 802.16e-2005, IEEE 802.11a/b/g/n, TETRA, Bluetooth®, AWGN, user-defined multicarrier CW, GPS, DVB-H/T, DAB/T-DMB, XM-RADIO Fading simulator Fading bandwidth 80/50/30 MHz (RF) Fading profiles Standard constant phase, pure Doppler, Rayleigh, Rician, lognormal With the R&S®AMU-K72 option Gaussian, Gaussian DAB, WiMAXDoppler, WiMAX Rice Predefined fading scenarios Standard CDMA2000®, 1xEV-DO, GSM, NADC, PCN, TETRA, HiperLan/2, WiMAX™ ITU, LTE With the R&S®AMU-K71 option 3GPP FDD, fine delay, moving delay, birth-death, 2 channel interferer, HST With the R&S®AMU-K72 option SUI1 to SUI6, ITU OIP-A, ITU OIP-B, ITU V-A, DABRA, DAB-TU, DAB-SFN MIMO Fading With the R&S®AMU-K74 option 1x2, 2x1, 2x2 MIMO (with settable correlations) With two R&S®AMU200A signal generators (each with R&S®AMU-K74 option) 1x3, 1x4, 2x3, 3x1, 4x1, 3x2, 4x2 MIMO (with settable correlations) Predefined MIMO fading scenarios LTE, WiMAX (including correlations) Signal quality of analog I/Q outputs Frequency response Magnitude up to 10 MHz typ. 0.02 dB Magnitude up to 40 MHz typ. 0.03 dB I/Q balance Magnitude up to 10 MHz typ. 0.01 dB Magnitude up to 40 MHz typ. 0.02 dB Spectral purity SFDR (sinewave) up to 2 MHz >70 dB SFDR (sinewave) up to 20 MHz typ. 60 dB Phase noise for 10 MHz sinewaveat 20 kHz offset typ. –150 dBc Wideband noise for 10 MHz sinewaveat 1 MHz offset typ. –155 dBc General data I/Q outputs Analog single-ended (standard) 0.02 V to 2 V (EMF, 50 ?) Analog differential (optional) 0.04 V to 4 V (EMF, 50 ?) Digital (optional) LVDS level, 18 bit I/Q inputs Analog single-ended (optional) sqrt(Vi? + Vq?) = 0.5 V (50 ? full scale) Digital (optional) LVDS level, 18 bit Interfaces IEEE 488.2 LAN (100BaseT) 4 x USB host 1 x USB slave VGA

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Rohde & Schwarz ( R&S)
Model	AMU200A
