Rohde & Schwarz R&s Smy02 2 Ghz Signal Generator W/option Smy-b1 1062.7534.02

US $1,499.99

Richardson, Texas, United States
May 9th

Open on mobile:
QR code

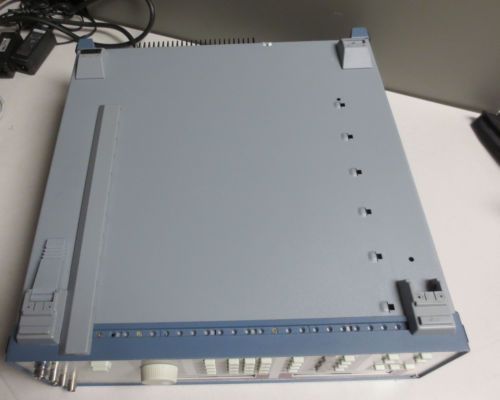

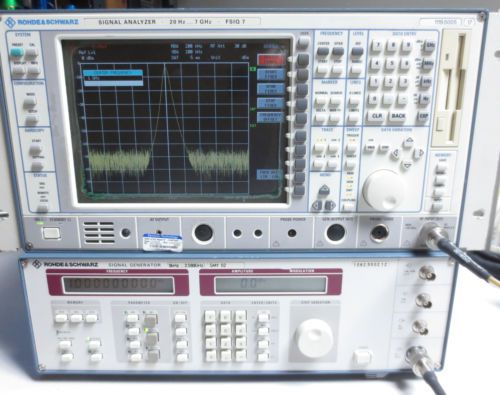

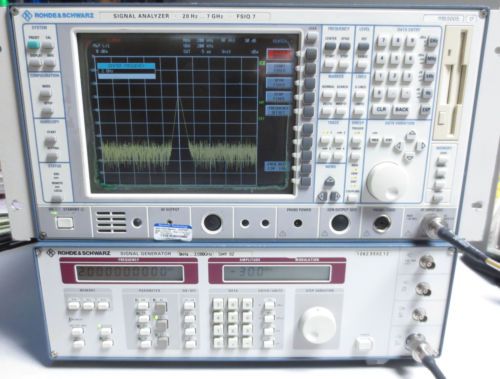

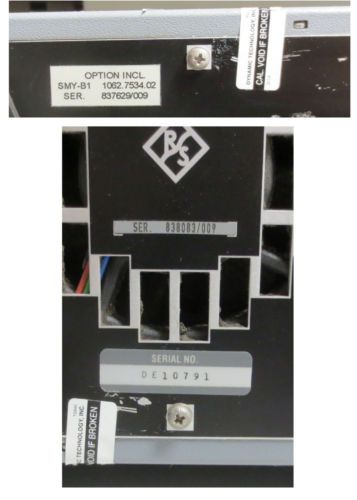

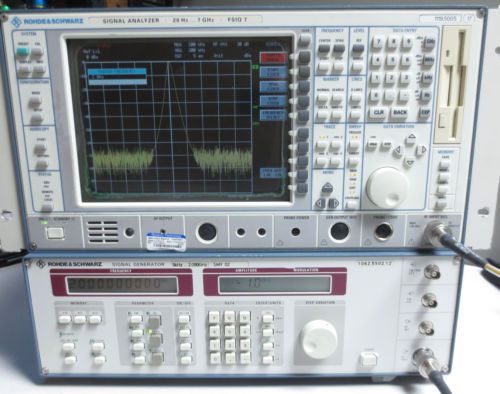

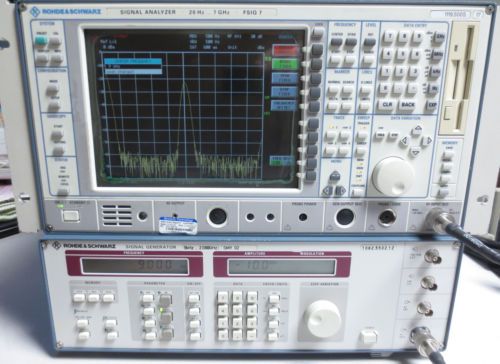

SCHWARZ R&S SMY02 2 GHZ SIGNAL GENERATOR w/option SMY-B1 1062.7534.02 SMY02 S/N 838083/009 DE10791 SMY-B1 S/N 837629/009 There is some missing feet on the bottom on this unit. The backlight for the two displays does not light up. Tested some frequencies and levels as shown in the pictures. May need calibration. Does not come with power cord or cables. Has scuffs, scrapes and sticker residue. ===================================================== The SMY02 Signal Generator is a cost-effective instrument for testing AM, FM, and phiM receivers and for component measurements. It is designed with a comprehensive set of basic signal generator capabilities. As a result, it's an economical solution for universal use in the lab, production, and servicing environments. This unit has the following features: Level range -140 dBm to +13 dBm (19 dBm over range) sufficient even for receivers of highest sensitivity High level accuracy and low RF leakage allowing accurate and undergraded sensitivity measurements FM DC with high accuracy of carrier frequency for testing pagers and receivers fitted with digital squelches Low SSB phase noise and high spurious rejection for all in-channel and blocking measurements Low residual FM affording ample margin for S/N measurements Modulation generator 1 Hz to 500 kHz for modulation frequency response measurements Stereo channel separation of 50 dB and low harmonic distortion for testing FM stereo receivers Non-interrupting level setting over a range of 20 dB for reproducible measurement of squelch hysteresis Frequency resolution 1 Hz, also suitable for extremely narrowband tests FM DC deviation up to 20 MHz for VCO simulation FM bandwidth 2 MHz for fast FSK and telemetry applications High output level up to 19 dBm for component and overdrive testing AF synthesizer 1 Hz to 500 kHz, separate use as AF signal source possible for external applications (e.g., recording of AF frequency response) GPIB interface for use in automatic test systems Sequence function and SEQ input for semi-automatic use This unit has the following specifications: Frequency Range: 9 kHz to 2.08 GHz Frequency Resolution: 1 Hz Level Range: -140 to +13 dBm, Over Range up to 19 dBm Level Accuracy: < 1 dB SSB Phase Noise: <-114 dB at 1 GHz, ?f = 20 kHz AM, FM, phiM, and Pulse Modulation Modulation Generator: 1 Hz to 500 kHz RF Overload Protection: 50 W Low RF Leakage (<0.1 µV) Non-volatile Storage for up to 50 Complete Front-panel Setups GPIB This unit has the following option installed: SMY-B1 1062.7534.02: Reference Oscillator OCXO
