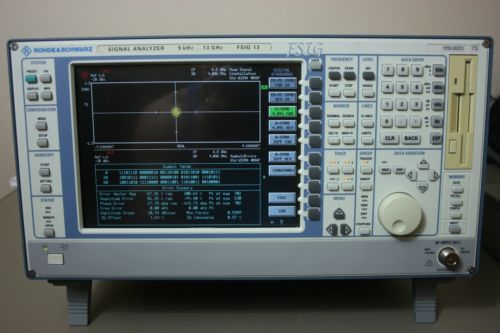

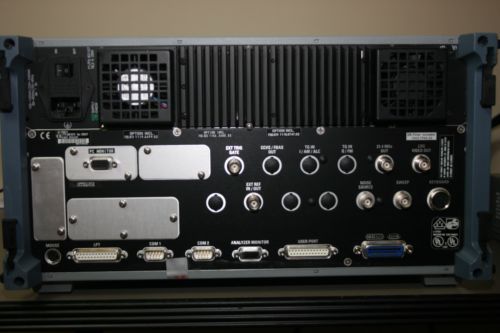

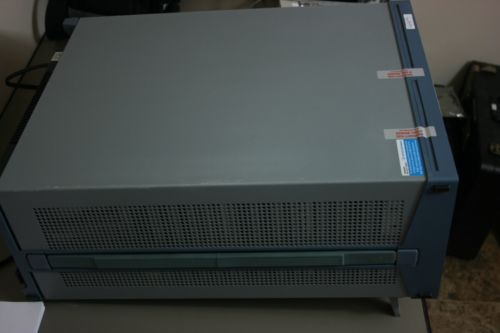

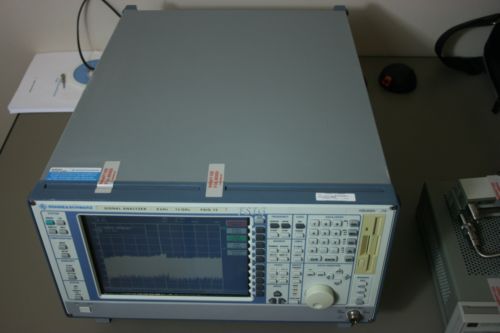

Midwest ATE Test Equipment Recyclers www.midwestate.com 708-420-4204 info@midwestate.com Rohde Schwarz FSIG13 Signal Analyzer 9Khz-13Ghz Signal Analyzer Calibrated with a 30 day Warranty Unit has a fully refurbished Display, super bright! Options FSE-B13 1-dB attenuator FSE-B22 Increased level accuracy up to 2 GHz FSIQ-B70 DSP and IQ Memory Extension (2 X 512 K) The Rohde & Schwarz FSIG13 , 13 GHz Signal Analyzer provides in a single unit comprehensive and easy-to-use measurement functions in the, frequency domain, time domain, modulation domain and code domain (cdma One forward channel). In the frequency domain, the FSIG 13 measures intermodulation and harmonics with great accuracy. The high 3rd-order intercept point in conjunction with the extremely low noise floor yields a wide intermodulation-free dynamic range and ensures reliable performance of even sophisticated measurements like spurious measurements. The maximum input frequency of 13 GHz allows even out-of-band spurious measurements. In the time domain, the FSIG 13 features all modern capabilities of burst analysis in TDMA systems; gate functions, trigger delay and integrated RF trigger in conjunction with a short sweep time of 1 µs ensure precise measurement of the timing characteristics of mobile radio systems. In the modulation domain, the integrated vector signal analyzer provides diverse measurements on GSM, EDGE, IS-136, cdmaOne, W-CDMA/ 3GPP signals. These convenient presettings make it superfluous for the user to spend valuable time in looking up specifications and go towards enhancing the measurement reliability. An optional application firmware FSIQ-K71allows power measurement in the 64 Walsh code channels of a cdmaOne signal (forward channel). The results can be output numerically or displayed as a bargraph. Features Frequency range: 9 kHz to 13 GHz. Resolution bandwidth: 1 kHz to 10 MHz in 1/2/3/5 steps. 5-pole resolution filters with high selectivity. Displayed average noise floor typically -130 dBm in 1 kHz bandwidth. Third-order intercept +22 dBm. Phase noise -150 dBc(1 Hz) at 5 MHz offset. 75 dB ACPR dynamic range for W-CDMA (4.096 MHz integration BW). Total level uncertainty: <1 dB up to 2.2 GHz, <1.5 dB up to 7 GHz. RMS detector for high-precision power measurements irrespective of waveform. Fast time domain analysis with 1 µs zero span sweep time. Integrated broadband vector signal analyzer for GSM, EDGE, IS-136, cdmaOne, W-CDMA and 3GPP signals with versatile result display: I and Q signal, magnitude and phase, vector and constellation diagrams, tabular output with numerical values of modulation errors and demodulated bit sequence. Display: 24 cm colour diplay TFT (9.5"). Options Hardware. FSE-B13, 1-dB attenuator. FSE-B16, Link to operating Manual: http://cdn.rohde-schwarz.com/dl_downloads/dl_common_library/dl_manuals/gb_1/f/fsiq/fsiq_02e.pdf Link to datasheet http://cdn.rohde-schwarz.com/dl_downloads/dl_common_library/dl_brochures_and_datasheets/pdf_1/FSIG_e.pdf · *************************************************************************************************************************************** Contact Midwest ATE E-mail: info@midwestate.com Phone: 708-420-4204 * We carry a large supply of quality refurbished and used test equipment from all the major manufacturers, for multiple quantities please contact us, if we don't have it we'll be glad to find it for you! ************************************************************************************************************************************ Product Condition Midwest ATE stands apart from other organizations that sell refurbished or used electronic test and measurement equipment. All test equipment products are 100% Refurbished by our in-house test lab engineers. Midwest ATE has developed rigorous re-certification procedures to ensure our products are shipped with the highest quality. ************************************************************************************************************************************ Warranty Midwest ATE warrants merchandise to be fully operational when shipped from our dock (unless otherwise specified). Warranty is void if tamper seals are broken. Please see detailed description for product warranty timeframe. ************************************************************************************************************************************* Payment Methods Midwest ATE accepts all major forms of payment including Paypal, Wire Transfer, Money Order, Escrow.com and Company Check. Personal checks must clear before shipping International orders are payable only by Wire transfer ************************************************************************************************************************************* Taxes Taxes will be charged for Illinois shipments, unless a tax exemption certificate is provided. On international shipments, duties and taxes are the customer's responsibility and are paid directly by the customer. ************************************************************************************************************************************ Shipping All shipments are F.O.B. Chicago, Illinois. Our high-quality, refurbished and used test equipment is carefully packaged and is shipped via FedEx, UPS, DHL, BAX Global, , or a customer-designated carrier. Shipping charges are dependent on product weight and destination. ************************************************************************************************************************************* International Shipping Overseas Shipping charges: Your actual cost depends on final destination. If you are outside the USA, be sure to consider the shipping cost before you bid or buy. Products sold internationally may be exported from the United States only in accordance with Export Administration Regulations. Diversion contrary to United States law is prohibited and Customer agrees to waive any claims against Midwest ATE for damages or costs and to further indemnify and defend Midwest ATE for any damages, claims or costs related in any way to Customer's improper diversion. Duties and taxes are the Customer's responsibility and are paid directly by the Customer. Contact details: If you have questions, call at Midwest ATE at (708)420-4204. Happy bidding
