Romex 6-2 With Ground (40 Feet) Also Custom Lengths

US $72.00

Berrien Springs, Michigan, United States
Jan 30th

Open on mobile:
QR code

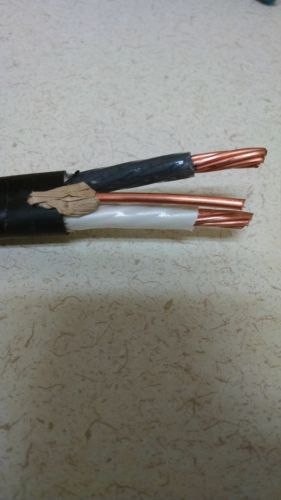

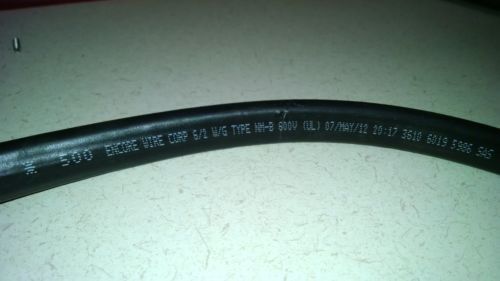

Wire is cut to length, Contact me for custom lengths. I will send a custom quote. 6-2 With Ground NM-B Wire Encore Wire Corp Brand Engineering Specifications: Standards: Underwriters Laboratories Standards UL-83, UL-719 Federal Specification A-A-59544 ASTM-B3 and B8 ARRA 2009; Section 1605 “Buy American” Compliant Construction: Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3 Stranded 8 AWG conductor and larger uncoated, copper ASTM-B8 Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90°C in dry locations. Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8 Applications: Type NM-B (Non-metallic sheathed cable) has a broad range of usage as defined in Article 334 of the National Electrical Code (NEC). Type NM-B cable is commonly used for residential fixtures, switches, and loads rated for at least 90?C. Type NM-B ampacity limitation shall be in accordance with the 60?C conductor temperature rating, as specified in the National Electrical Code. Type NM-B is rated for 600 volts for both exposed and concealed work in normally dry locations. Type NM-B may be installed or fished in air voids and joints and in masonry block or tile walls where such walls are not exposed to, nor subject to, excessive moisture or dampness. Assembly: 2-conductor construction has the insulated conductors laid parallel with a bare copper ground wire wrapped in paper and laid parallel between the insulated conductors. The entire assembly is wrapped with a paper separator before applying the PVC outer jacket. 3 and 4 conductor constructions may have the insulated conductors laid parallel or twisted together before applying the PVC outer jacket. Jacket: A 30-mil, color-coded, PVC jacket is applied over the completed assembly as follows: 6 AWG Black Jacket Surface Print: SAMPLE: Encore Wire Corp 6/2 W/G TYPE MN-B 600V (UL) 07/MAY/12 20:17 3610 6019 5986 SAS

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Brand

Encore Wire
