Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 0

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 1

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 2

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 3

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 4

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 5

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 6

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 7

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 8

Rotary Phase Converter - 5 HP - CNC Grade, PC5P4L, US $699.00 – Picture 9

Rotary Phase Converter - 5 Hp - Cnc Grade, Pc5p4l

US $699.00

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

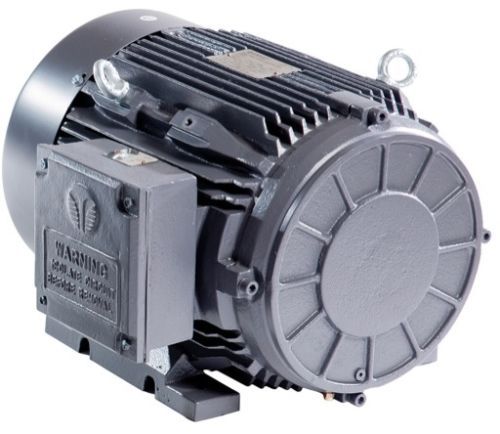

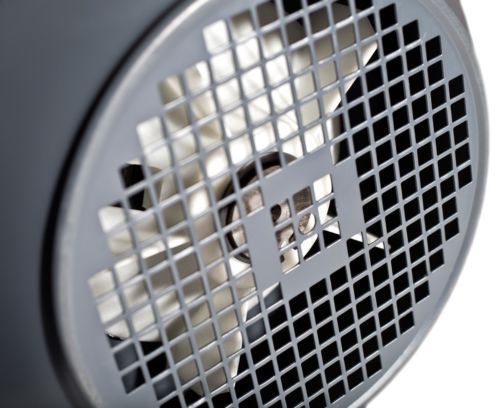

Home | F.A.Q. | Policies | Warranty | Contact Us Gallery Totally Enclosed Fan Cooled vs Open Drip Proof Totally Enclosed Fan Cooled [TEFC] TEFC Motors are more reliable. Air flows over the motor and have much more iron for cooling the motor and provide more power. Open Drip Proof [ODP] Open Motors - Pull foreign objects in, along with the air for cooling. Not good. Watch Comparison Video Now Sizing a Phase Converter Speak to an expert on sizing: 800-931-1101 Know Your Size Already? Select the appropriate phase converter. Information Center PDF Download - Manual Download - Datasheet VIDEO View Now - Installation Video View Now - TEFC vs ODP Datasheet General Specifications Horsepower: 5 hp Kilo-watt (kw): 3.3 Frequency (Hz): 50/60 Generator Enclosure: TEFC Generator Frame: 184T Single Phase Electrical Specs Voltage Input: 220/440 Min. Fuse Size: 10/5 Min. Circuit Breaker: 10/5 Max. Fuse Size: 30/15 Max Circuit Breaker: 30/15 Min. Wire Input: 10/10 AWG Idle Amperage: 0.75/1.5 Minimum Breaker Size: 2 x load amp Three Phase Electrical Specs Voltage Output: 220/440 Output Amperage: 14/7 Voltage Balance: 2-5%/2-5% Minimum Wire to Generator: 12/12 AWG Minimum Wire to Load: based on load Max Resistive Amps: 7/3.5 Dimensions and Weights Generator Weight: 89 lbs Generator Dimensions (XxYxZ) inches: 17.1x9.7x9.3 Panel Weight: 12 lbs Panel Dimensions (LxWxD) inches: 12x12x4 Panel Color: ANSI91 Grey Easy - no flywheel, clutch, little resistance/inertia (same size as HP) Medium - machine inertia, medium resistance (1 size larger than load HP) Hard - flywheel, no clutch, starts against load (2x larger than load HP) Very Hard - continuous load (2.5 larger than load HP) Frequent Start - instant reversing, heavy running loads CNC - turning centers, PLC's, EDM, CNC machining Resistive - heaters, transformers, welders, power supplies etc Warranty All Phoenix Phase Converter control panels are warranted against defects in material and workmanship for 10 years. This warranty covers both control panel parts and labor for 5 years, after 5 years only labor is warranted. The Idler/ Generator is covered by the manufacture warranty for 2 years. Warranty is from the date of purchase by the original owner. Phoenix Phase Converter will repair or replace (at our option), at no charge, any parts that are found to be faulty during the warranty period specified. The Phoenix Phase Converter control panel warranty must be performed by/at a Phoenix Phase Converter facility and will be returned in a timely manner, but not to exceed a 5 business days of repair time. Phoenix Phase Converter is not responsible for shipping charges to or from our facility, especially express or next day shipping. Phoenix Phase Converter does not offer loaner converters, and is not responsible for any other charges, such as but not limited to, downtime, equipment, labor cost of electrician or owners time. Payment Phoenix Phase Converter accepts the following payment methods: PayPal, Visa, MasterCard, AMEX, Discover. We charge 9.75% sales tax for all orders shipping within Arizona. Tax exemption is available if we are provided with a valid Arizona resale certificate. Delivery FAST FREE shipping. $80.00 charge for lift gate. We cannot ship freight or any UPS Express deliveries without a contact phone number. Please let us know if you have any special requirements. Phoenix Phase Converter is NOT responsible for redelivery charges or shipping charges for returns or repairs. IMPORTANT: Phase Converters 7.5 and larger will arrive by two truck, generator will be delivered by freight truck and the rotary phase converter panel will be delivered by FedEx ground, usually the same or next business day. We ship from warehouses in 6 different cities to provide you with the quickest delivery possible. We ship from Los Angeles, CA; Dallas, TX; Houston, TX; Kansas City, KS; Hillside, NJ; Indianapolis, IN; and Atlanta, GA. Return & Refund Units may be returned for a full refund at the purchaser's cost and for up to 30 days after the unit has been received as long as the unit has not been used. If purchaser wants to return the unit while in transit the purchaser is responsible for all shipping cost; used converters we may offer a credit; full or partial credit is determined based on the condition of the phase converter. Trusted by Top Companies Feedback Prompt delivery, great price. Converter works great for my bridgeport and my lathe. Totally happy with it. Good price. Good guys to work with. Thank you! Fast Shipping! Item arrived on time and in perfect condition. Will buy from again! Thank you. Designed and Coded by: jasonleewilson.com _gsrx_vers_568 (GS 6.7.3 (568))

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Phoenix Phase Converter
MPN	PC5P4L
Model	PC5P4L
Country/Region of Manufacture	United States
