Rsi 503176 C7 Cutter, Lasermax Roll Systems, S/n: 19881, Operational Fg

US $15,995.00

Irving, Texas, United States
Mar 5th

Open on mobile:
QR code

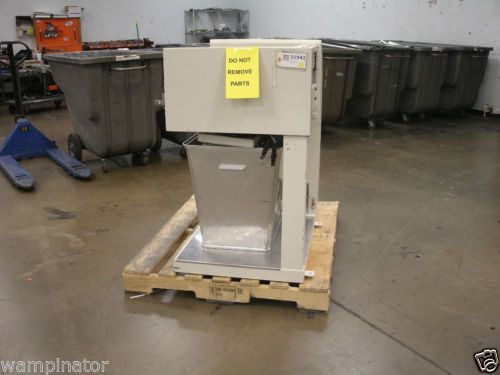

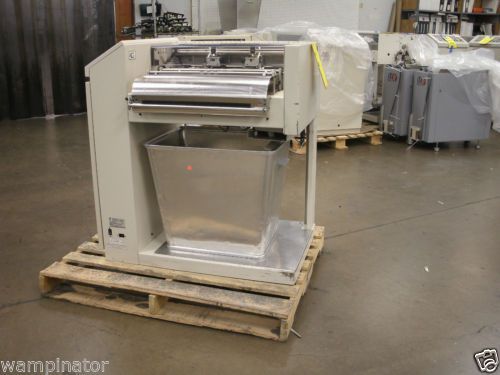

RSI 503176 C7 Cutter, Lasermax Roll Systems, S/N: 19881, Operational FG Item condition / description: Item has minor cosmetic wear and tear marks from normal operational use. All covers and parts are included. Overall this cutter is in very good condition and ready for an experienced print shop to take over maintenance and production. The cutter's included options, upgrades and setup are listed below. Installation manual & parts diagrams for future needs are included. All items come with a 14 day warranty return service. Full Technical Services offering is available upon request (installation / deinstallation / tech support). Domestic & International shipping rates & services can be provided upon request. Weight: 1,000 lbs Dimensions: 48''x48''x48'' (LxWxH) *OPTIONS / UPGRADES / SETUP (RSI C7 Cutter)* Print Registration cutting via detection of a printed mark on the paper Pinless V2 Upper and Lower bracket / mounting bar Pinless mark reader housing Pinless mark sensor Light Weight Paper provides improved web control for paper weights in the 12# to 16# range Center Slitter allows 2-up printing ro be slit and cut in two parallel stream Short Cut Application can cut forms 3 1/2'' long at 233 feet per minute High Speed Option 250 fpm t0 300 fpm Punch Cut w/ Air Jet Gutter Cut Main E-Stop Double Setup Merge Module 1-Up indeed Please contact directly with any questions - 972.793.0709 (Josh) ________________________________________________________________________________________________________________________________________ RSI 503176 Cutter - Technical Specifications & Descriptions Theory of Operation The Model 503176 cutter is a servo-driven, guillotine module to convert continuous web paper into precisely cut and trimmed sheets. It employs tractors to move pin fed webs and a nip roller drive to handle pinless (EdgeWiseTM) web material. Pinless operation includes an optical mark registration system. Optionally, the cutter can include trimmer modules to trim up to 1-inch from each edge of the web, slitting modules to split the web into multiple parallel streams of sheets, and hole punch modules. The cutter has been designed for easy service access with a minimum number of parts and adjustments. PAPER BASIS WEIGHT The native Roll Systems cutter, Model 503176, is capable of cutting wood fiber based paper stocks in a single layer whose weights are in the range of 40 gsm to 250 gsm, or in two layers up to 200 gsm each layer. This specification is superseded by the system specifications of any system in which the 503176 cutter is used. Operation near the extremes of the cutter’s range of basis weights may require installation of optional, system-specific, paper handling features. WEB WIDTH 6.5” minimum 21” maximum WEB LENGTH 5.5” minimum cut length at 250 ft/min 4.5” minimum cut length at 230 ft/min 3.5” minimum cut length at 170 ft/min 54” maximum cut length LENGTH INCREMENTS Operator selectable in 1/6”, 1/8”, millimeters, or 10/1000” ELECTRICAL 100-110 VAC, 12 A, 50/60 Hz 220-240 VAC, 6 A, 50/60 HZ ACCURACY Pinfed - At 18” width sheet length measured at both edges ± 0.015” of nominal EdgeWiseTM - ±0.010 from top of form as determined by EdgeWiseTM mark DIMENSIONS (without indeed) 41” high, 39”wide, 25”long SQUARENESS Cut edge to side angle = 90° ± 0.10° _______________________________________________________________________________________________________________________________________________________

“Item has minor cosmetic wear and tear marks from normal operational use. All covers and parts are included. Overall this cutter is in very good condition and ready for an experienced print shop to take over maintenance and production. The cutter's included options, upgrades and setup are listed below.”

Brand	Lasermax Roll Systems
Country/Region of Manufacture	United States
Model	RSI 503176 C7 Cutter

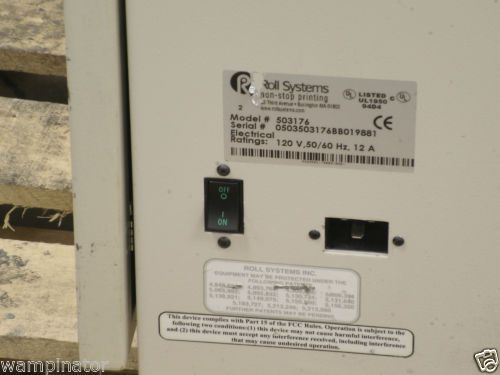

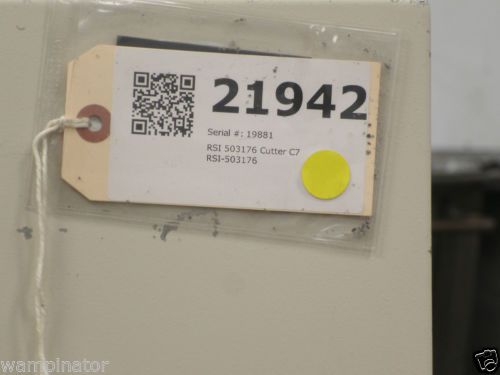

Serial No.	19881
MPN	503176
