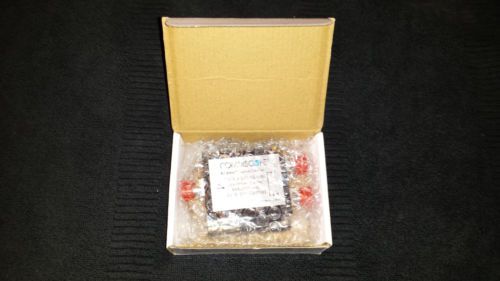

S-2-cpuse-l-ni Two-way Low Power Splitter, 698–2700 Mhz Rf Pim Commscope

US $80.00

  • New River, Arizona, United States
  • Feb 14th
Open on mobile:
QR code
 General Specifications   Brand   Andrew® Device Type   Splitter Interface   N Female Color   Black     Electrical Specifications   Operating Frequency Band   698 – 2700 MHz 3rd Order IMD   -150 dBc (relative to carrier) 3rd Order IMD Test Method   Two +43 dBm carriers Average Power, maximum   50 W Dissipative Loss at Frequency Band   0.3 dB @ 698–2500 MHz   |   0.4 dB @ 2500–2700 MHz Impedance   50 ohm Insertion Loss at Frequency Band   0.3 dB @ 698–2500 MHz   |   0.4 dB @ 2500–2700 MHz Isolation at Frequency Band   20 dB @ 698–2700 MHz Peak Power, maximum   1 kW Power Rating, Combining   0.5 W Power Rating, Splitting   50 W Reflected Power, maximum   3 W Return Loss, minimum   20.8 dB Split Loss   3.0 dB VSWR   1.2:1     Mechanical Specifications   Inner Contact Plating   Silver Outer Contact Plating   Trimetal     Environmental Specifications   Application   Indoor/Outdoor Ingress Protection Test Method   IEC 60529:2001, IP65 Operating Temperature   -25 °C to +85 °C (-13 °F to +185 °F) Relative Humidity   Up to 100%     Dimensions   Height   22.00 mm   |   0.87 in Length   107.00 mm   |   4.21 in Width   79.00 mm   |   3.11 in Net Weight   260.00 g   |   0.57 lb     Packed Dimensions   Height   40.0 mm   |   1.6 in Length   130.0 mm   |   5.1 in Width   100.0 mm   |   3.9 in Shipping Weight   310.00 g   |   0.68 lb Volume   520.0 cc Regulatory Compliance/Certifications Agency Classification RoHS 2011/65/EU Compliant by Exemption
