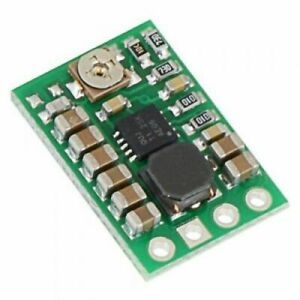

S9v11f3s5 3.3v Step-up/step-down Regulator

US $5.95

Swanton, Vermont, United States
Jun 15th

Open on mobile:
QR code

Description Input voltage: 2 V to 16 V Fixed 3.3 V output with +5/-3% accuracy (can be changed to 5 V using the SEL pin) Typical maximum continuous output current: 1.5 A The S9V11F3S5 3.3V Step-Up/Step-Down Regulator produces a fixed 3.3 V (default) or 5 V (selectable) output whether it is higher or lower than the input voltage, which can range from 2 V to 16 V (Note: minimum start-up voltage is 3 V, but it operates to 2 V after that). The compact (0.5″ × 0.6″) module can supply a typical output current of up to 1.5 A when the input voltage is close to the output voltage. Features Power-good indicator can be used to tell when the regulator has reached and is maintaining its target output voltage Power-saving feature maintains high efficiency at low currents (quiescent current is less than 1 mA while enabled and approximately 7 µA per volt on VIN when the regulator is disabled) Integrated over-temperature and short-circuit protection Small size: 0.5″ × 0.6″ × 0.17″ (12.7 × 15.3 × 4.3 mm) Specifications Minimum operating voltage: 2 V Maximum operating voltage: 16 V Maximum output current: 1.5 A Minimum output voltage: 2.5 V Output voltage: 3.3 V Maximum quiescent current: 1 mA Dimensions 0.5″ × 0.6″ × 0.17″ Weight: 0.7 g

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Pololu
Type	Pololu
MPN	2872
UPC	Does not apply
