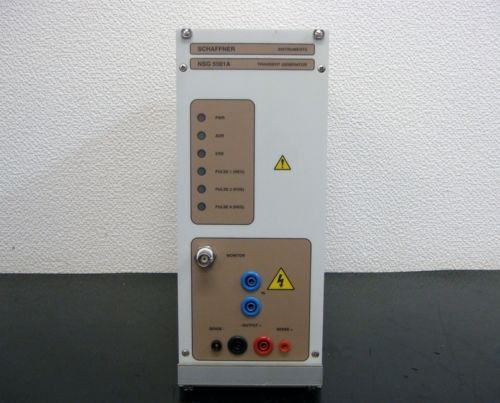

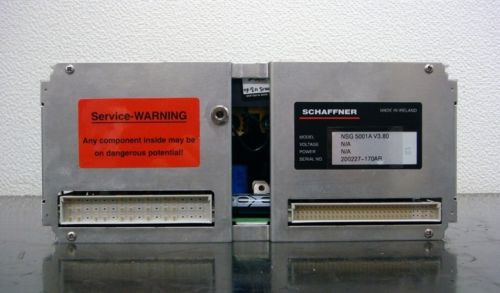

SCHAFFNER NSG5001A 600V Surge Pulse Source Module, US $5,200.00 – Picture 0
SCHAFFNER NSG5001A 600V Surge Pulse Source Module, US $5,200.00 – Picture 1
SCHAFFNER NSG5001A 600V Surge Pulse Source Module, US $5,200.00 – Picture 2
SCHAFFNER NSG5001A 600V Surge Pulse Source Module, US $5,200.00 – Picture 0
SCHAFFNER NSG5001A 600V Surge Pulse Source Module, US $5,200.00 – Picture 1
SCHAFFNER NSG5001A 600V Surge Pulse Source Module, US $5,200.00 – Picture 2

Schaffner Nsg5001a 600v Surge Pulse Source Module

US $5,200.00

  • Ichihara, Chiba , Japan
  • Jan 29th
Open on mobile:
QR code
SCHAFFNER NSG5001A 600V Surge Pulse Source Module   Pulse 1,2,6 NSG 5001 Test Pulse Mode; 1 simulates inductive load switch off; 2 simulators spikes caused by ignition turn off; 6 simulators pulse from disconnect of ignition coil when current flowing. Specification(ISO DP7637/1 12V) Amplitude Vs:up to 600V(0-100@1,2 0-300@6), Impedance Ri:4-10ohm@1,2 10-30ohm@6(10ohm@1,2 30ohm@6) Risetime Tf:1-3us@1,2 60us@6(1us@1,2 <60us@6), Pulse width Td;50-2000us@1,2 300us@6 (2ms@1 50us@2 300us@6), Repetition time T1:0.15-15s@1,2,6(0.5-5s@1,2 15s@6), Delay time T3:<=100us@1,6(<=100us@1,6), Battery off time T2:200ms@1,2,6(200ms@1,2), Pulse mode:Single/continuous, Pulse preselection:1-9999pulses, Time preselection:1s-9h59m59s, It requires NSG500 mainframe.   Photo is real item for sale. Warranty: one month  5days return right   Web shop : www.hitechfacility.co.jp
